1998 Yamaha Seca Ii CA (XJ600SKC) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1998 Yamaha Seca Ii CA (XJ600SKC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

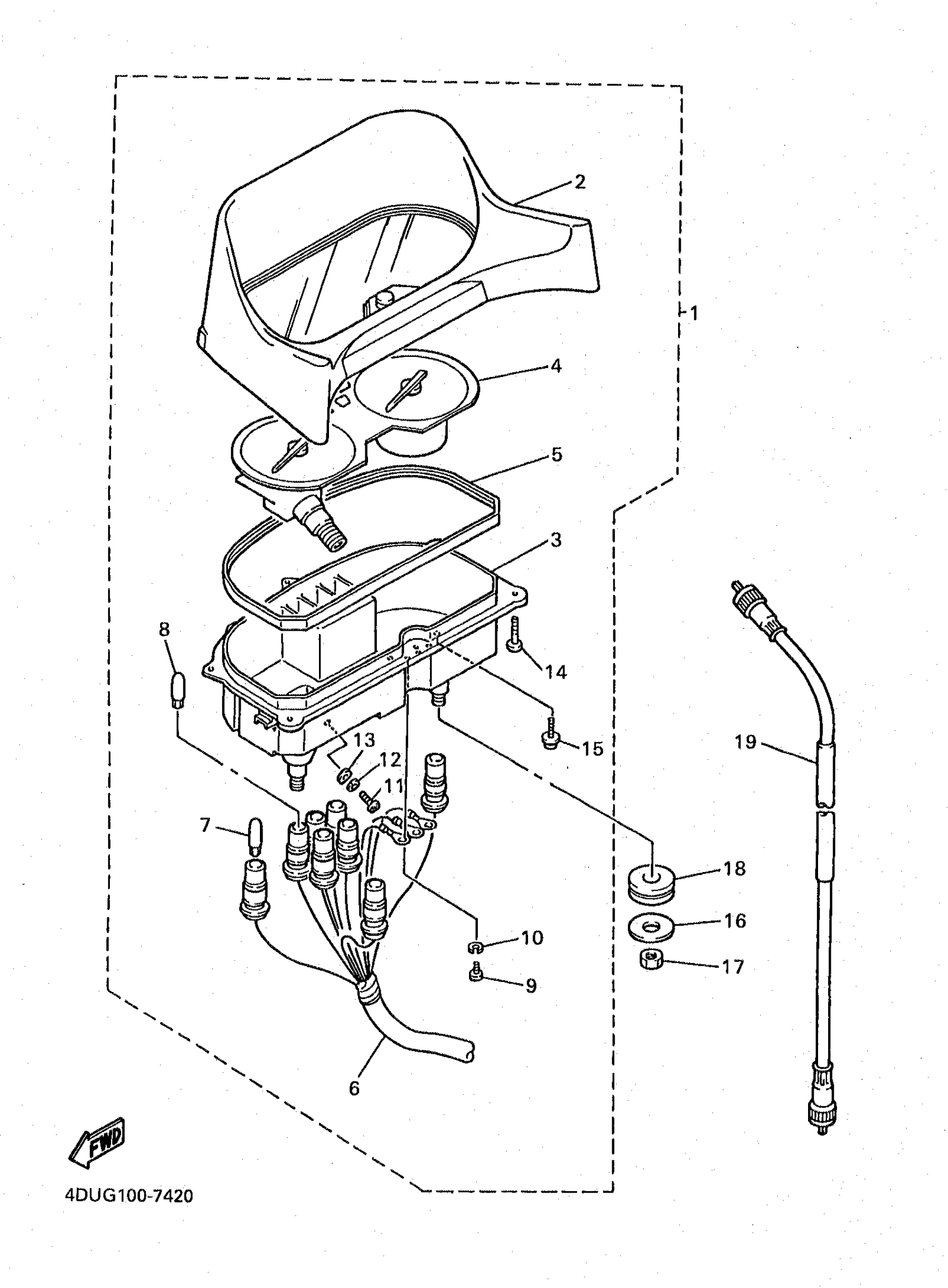

1998 Yamaha Seca Ii CA (XJ600SKC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

4BR-83500-30-00

1
Out of stock

2

. METER CASE COMP, UPPER

4BP-W835E-00-00

1
Out of stock

3

. METER CASE COMP, UNDER

4EB-W835F-00-00

1
Out of stock

4

. SPEEDOMETER ASSEMBLY

4BR-83570-30-00

1
Out of stock

5

. GASKET, UPPER

4BP-8353J-00-00

1
Out of stock

6

. SOCKET CORD ASSEMBLY

4EB-83509-10-00

1
Out of stock

7

BULB (12V-1.7W)

3GM-83517-00-00

1
Out of stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

SCREW PAN HEAD

98580-03010-00

1

$6.68

In stock

10

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

11

SCREW, PAN HEAD(6G8)

98507-04010-00

1

$3.26

In stock

12

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

13

WASHER(JF2)

92907-04600-00

1

$1.23

In stock

14

SCREW, TAPPING

90164-04005-00

1
Out of stock

15

SCREW, TAPPING (15A)

90164-04008-00

1

$6.91

In stock

16

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

17

NUT(6TA)

95317-06600-00

—

$2.69

In stock

18

DAMPER

5J0-83513-00-00

—
Out of stock

19

SPEEDOMETER CABLE ASSY

3GM-83550-02-00

—
Out of stock
