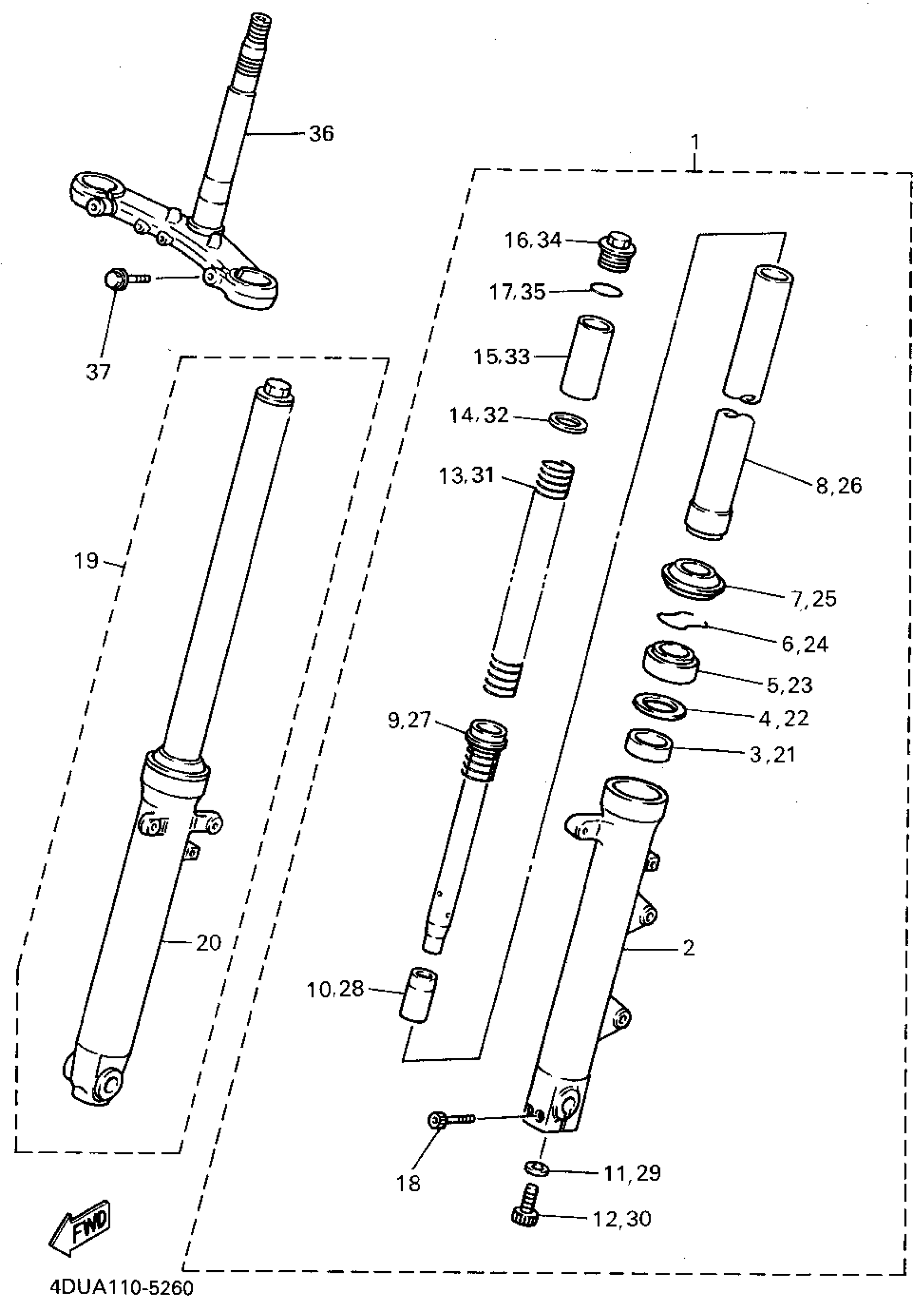

Yamaha XJ600SGC (SECA II CA) 1995 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASY L

4BR-23102-13-00

Unavailable

2

TUBE, OUTER (L.H)

4BR-23126-11-00

Unavailable

3

METAL, SLIDE 1

3YX-23125-00-00

$14.39

4

WASHER

4V2-23146-L0-00

$23.48

5

OIL SEAL

3EN-23145-00-00

$21.48

6

RING, SNAP

3R4-23153-00-00

$7.03

7

SEAL, DUST

3EN-23144-01-00

$20.93

8

INNER TUBE COMP.1

3YX-23110-01-00

Unavailable

9

. CYLINDER COMP, FRONT FORK

4BR-23170-00-00

Unavailable

10

SPINDLE, TAPER

2YK-23173-00-00

Unavailable

11

GASKET

509-23158-L0-00

$13.39

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

13

. SPRING, FRONT FORK

4BP-23141-00-00

Unavailable

14

. WASHER, SPRING UPPER

4DN-23149-40-00

Unavailable

15

. SPACER

26H-23118-00-00

Unavailable

16

. BOLT, CAP

3EN-23111-00-00

Unavailable

17

O-RING

1W4-23114-L0-00

Unavailable

18

BOLT, SOCKET

91314-08035-00

Unavailable

19

FRONT FORK ASY R

4BR-23103-13-00

Unavailable

20

TUBE,OUTER 2

4BR-23136-11-00

Unavailable

21

METAL, SLIDE 1

3YX-23125-00-00

$14.39

22

WASHER

4V2-23146-L0-00

$23.48

23

OIL SEAL

3EN-23145-00-00

$21.48

24

RING, SNAP

3R4-23153-00-00

$7.03

25

SEAL, DUST

3EN-23144-01-00

$20.93

26

INNER TUBE COMP.1

3YX-23110-01-00

Unavailable

27

. CYLINDER COMP, FRONT FORK

4BR-23170-00-00

Unavailable

28

SPINDLE, TAPER

2YK-23173-00-00

Unavailable

29

GASKET

509-23158-L0-00

$13.39

30

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

31

. SPRING, FRONT FORK

4BP-23141-00-00

Unavailable

32

. WASHER, SPRING UPPER

4DN-23149-40-00

Unavailable

33

. SPACER

26H-23118-00-00

Unavailable

34

. BOLT, CAP

3EN-23111-00-00

Unavailable

35

O-RING

1W4-23114-L0-00

Unavailable

36

UNDER BRACKET COMP.

4BP-23340-10-00

Unavailable

37

BOLT 2

2NX-23356-00-00

Unavailable
