1992 Yamaha Seca II CA (XJ600SDC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1992 Yamaha Seca II CA (XJ600SDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

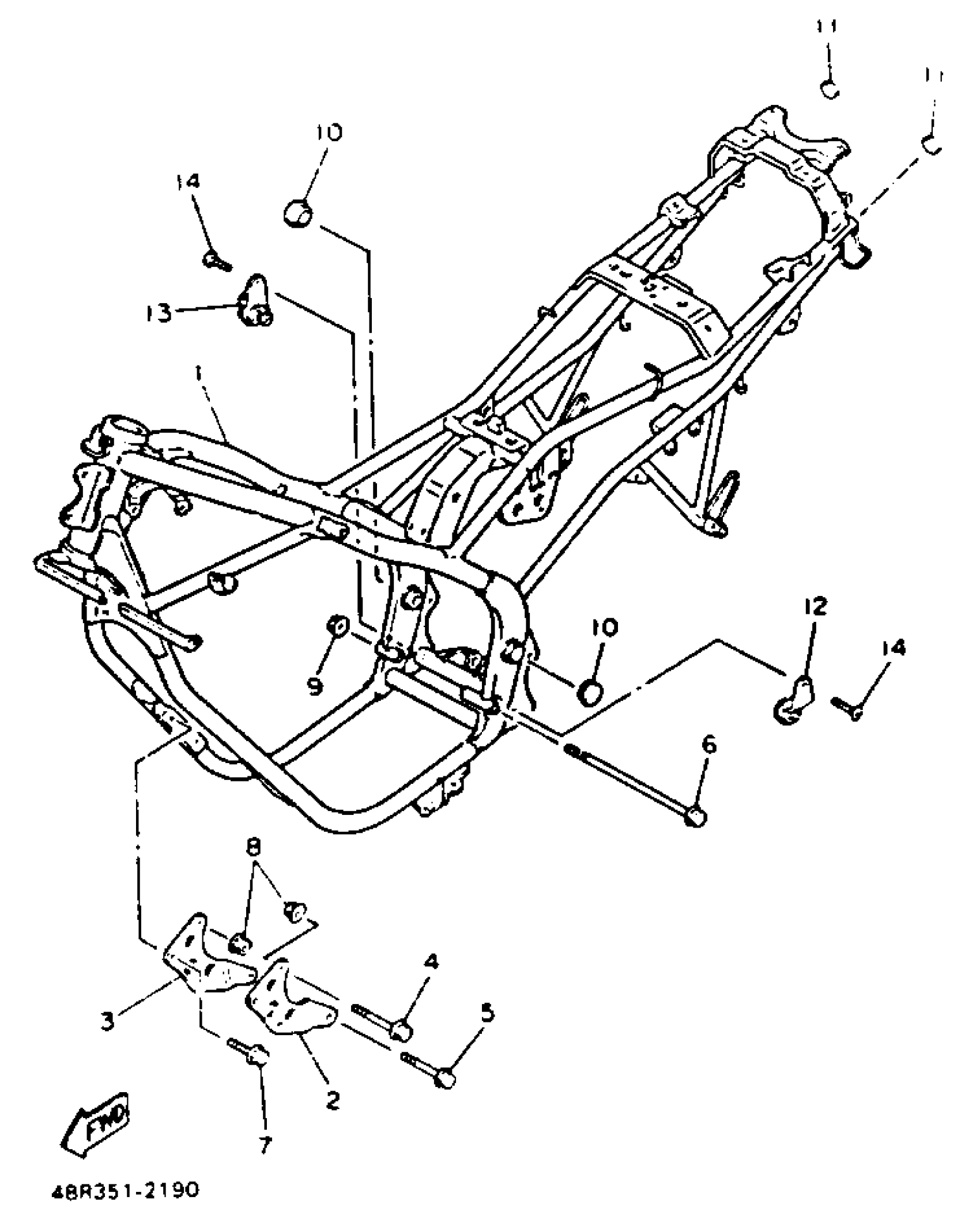

1992 Yamaha Seca II CA (XJ600SDC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

4DU-21110-00-33

1
Out of stock

1

FRAME

4DU-21110-00-P2

1
Out of stock

1

FRAME

4DU-21110-00-33

1
Out of stock

1

FRAME

4DU-21110-00-P2

1
Out of stock

2

STAY, ENGINE 2

4BP-21315-00-00

1
Out of stock

3

STAY, ENGINE 3

4BP-21316-00-00

1
Out of stock

4

BOLT, WASHER BASED(4EB)

90105-10788-00

1
Out of stock

5

BOLT, WASHER BASED HEAD (722)

90105-10142-00

1
Out of stock

6

BOLT, WASHER BASED(4EB)

90105-12787-00

—
Out of stock

7

BOLT, FLANGE(3HP)

95817-10016-00

1

$6.17

In stock

8

NUT(4KG)

90179-10658-00

1

$7.49

In stock

9

NUT(3EF)

90179-12657-00

1

$5.32

In stock

10

COVER

3SX-2135F-01-00

—
Out of stock

11

PLUG

3YJ-24481-00-00

—
Out of stock

12

STAY,MUFFLER 1

4BP-21445-01-00

1
Out of stock

13

STAY,MUFFLER 2

4BP-21446-01-00

1
Out of stock

14

BOLT, BUTTON HEAD

92017-08012-00

—
Out of stock
