1981 Yamaha XJ550R (XJ550RH) Side Cover Tool Diagram

← All diagrams

Find the part on the Side Cover Tool diagram for your 1981 Yamaha XJ550R (XJ550RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

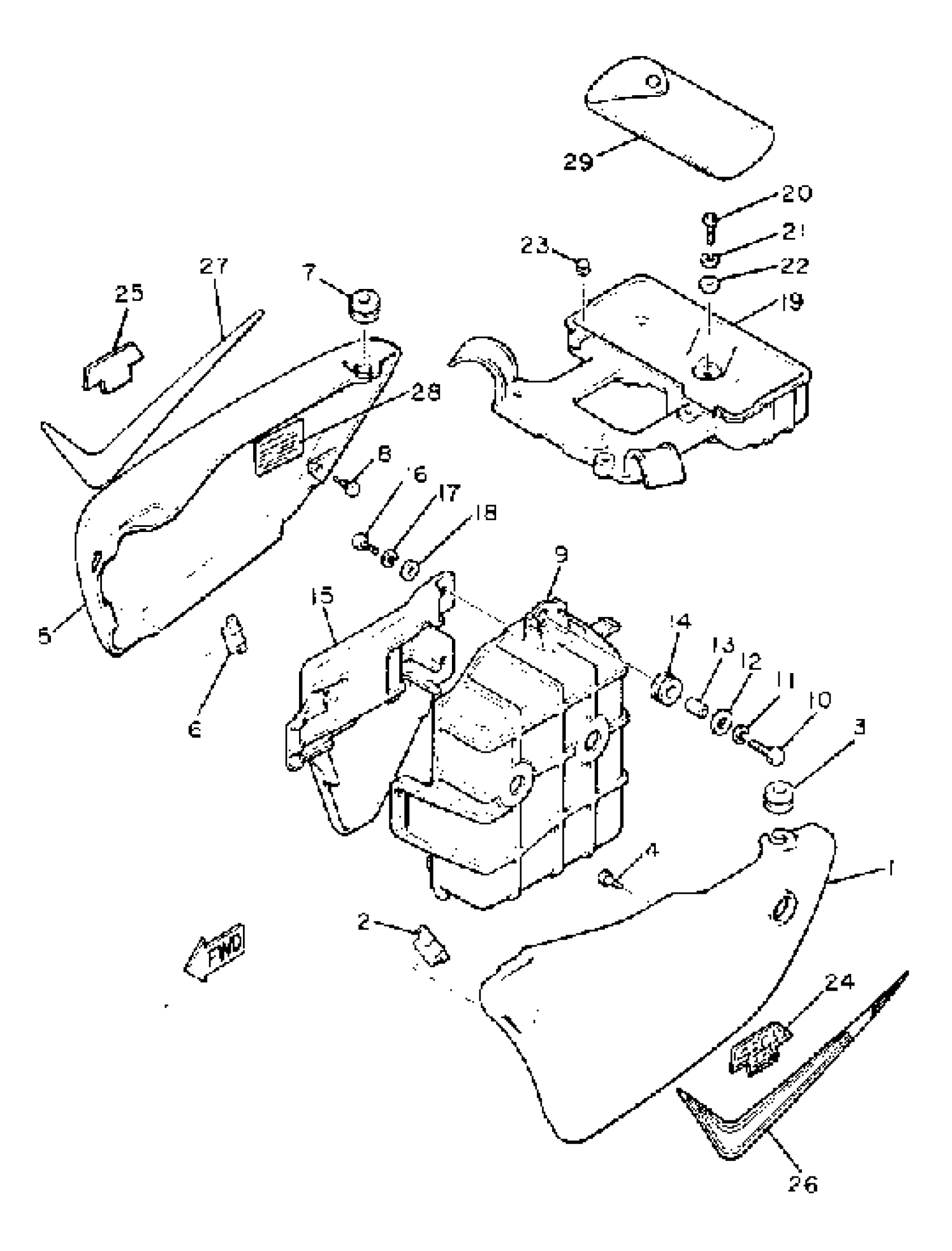

1981 Yamaha XJ550R (XJ550RH) Side Cover Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

4G0-21711-00-Y9

1
Out of stock

2

DAMPER, SIDE COVER

2N4-21717-00-00

1

$6.38

In stock

3

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

4

GROMMET (1J7)

90480-05201-00

1
Out of stock

5

COVER, SIDE 2

4G0-21721-00-Y9

1
Out of stock

6

DAMPER, SIDE COVER

2N4-21717-00-00

1

$6.38

In stock

7

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

8

GROMMET (1J7)

90480-05201-00

1
Out of stock

9

BOX

4G0-21170-01-00

1
Out of stock

10

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

13

COLLAR

90387-06113-00

1

$10.51

In stock

14

GROMMET (2N3)

90480-16233-00

1

$6.82

In stock

15

LID

4G0-28185-00-00

1
Out of stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER, PLATE

90201-06049-00

1

$3.36

In stock

19

BOX, TOOL

(4G0-21171-00-00)

1
Out of stock

20

SCREW, PAN

98507-06014-00

—

$6.18

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLATE

90201-06049-00

1

$3.36

In stock

23

DAMPER, SIDE COVER

1J7-21717-00-00

—
Out of stock

24

EMBLEM 1

4U8-21781-00-00

1
Out of stock

25

EMBLEM 2

4U8-21782-00-00

1
Out of stock

26

GRAPHIC

4U8-2173E-00-00

1
Out of stock

27

GRAPHIC

4U8-2173F-00-00

1
Out of stock

28

PLATE, SPEC

(4U8-21683-00-00)

1
Out of stock

29

TOOL KIT

1AA-W2810-00-00

1
Out of stock
