1981 Yamaha XJ550R (XJ550RH) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1981 Yamaha XJ550R (XJ550RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

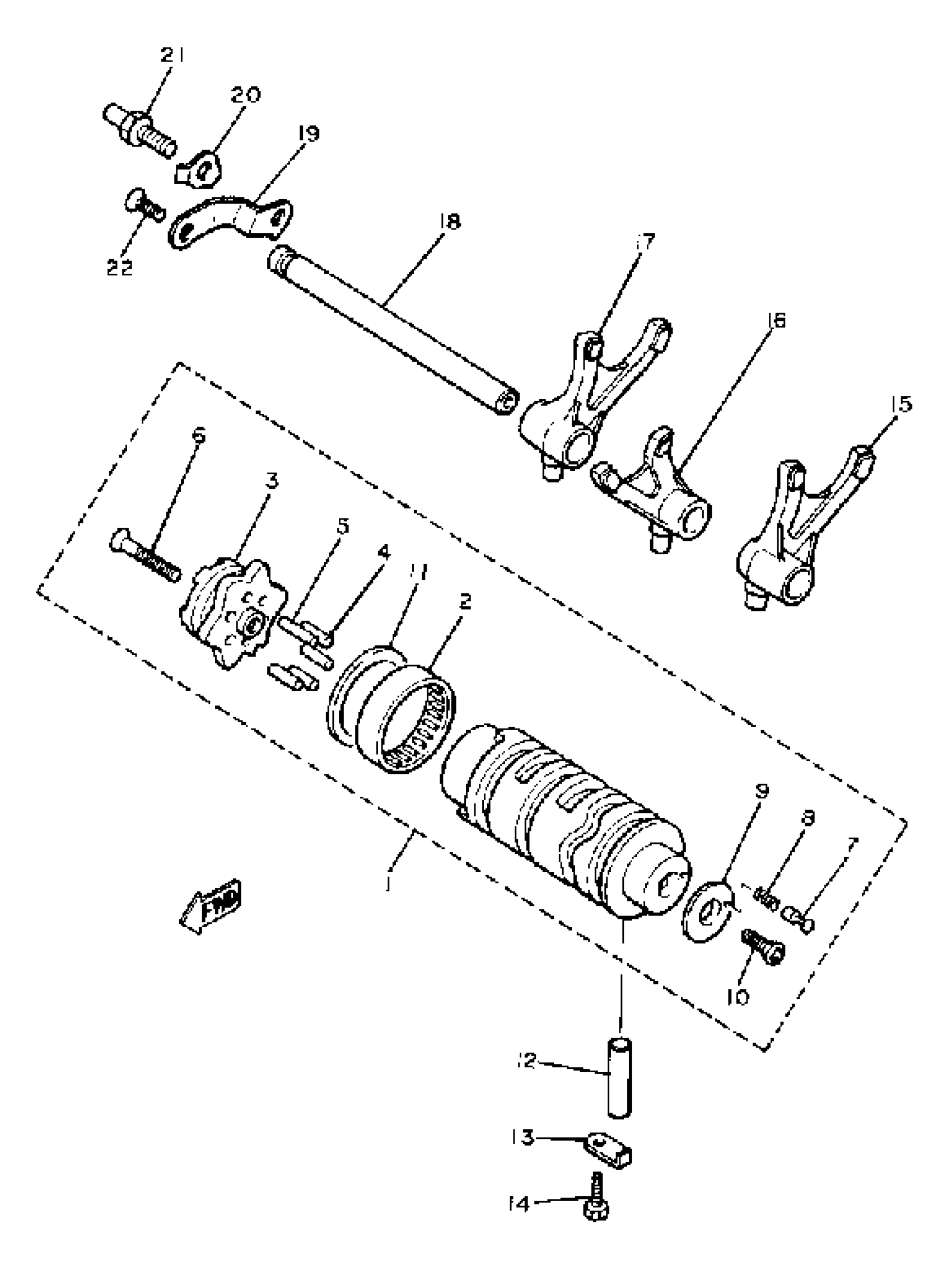

1981 Yamaha XJ550R (XJ550RH) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

4G0-18540-01-00

1
Out of stock

2

BEARING (5K5)

93306-90501-00

1
Out of stock

3

. SEGMENT

4G0-18185-01-00

1
Out of stock

4

PIN, DOWEL (409)

93604-16092-00

1

$1.94

In stock

5

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

6

SCREW, FLAT

98707-05035-00

1

$6.69

In stock

7

POINT, NEUTRAL

4UN-18542-00-00

1

$8.44

In stock

8

1

$6.17

In stock

9

PLATE, SIDE 2

278-18566-00-00

1
Out of stock

10

SCREW, FLAT

98707-05016-00

1

$5.60

In stock

11

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

12

PIN, DOWEL

93608-36165-00

1
Out of stock

13

PLATE, STOPPER

2H7-15531-00-00

—

$1.95

In stock

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

15

FORK, SHIFT 1

4G0-18511-00-00

1
Out of stock

16

FORK, SHIFT 2

4G0-18512-00-00

1
Out of stock

17

FORK, SHIFT 3

4G0-18513-00-00

1
Out of stock

18

BAR, SHIFT FORK GUIDE 1

4BR-18531-00-00

—
Out of stock

19

STOPPER, SHIFT BAR

(4G0-18536-00-00)

1
Out of stock

20

WASHER, LOCK (4G0)

90215-18178-00

—

$2.12

In stock

21

STOPPER, SCREW

5VK-18127-00-00

—

$10.89

In stock

22

SCREW, FLAT

98707-06014-00

—
Out of stock
