1981 Yamaha XJ550R (XJ550RH) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha XJ550R (XJ550RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

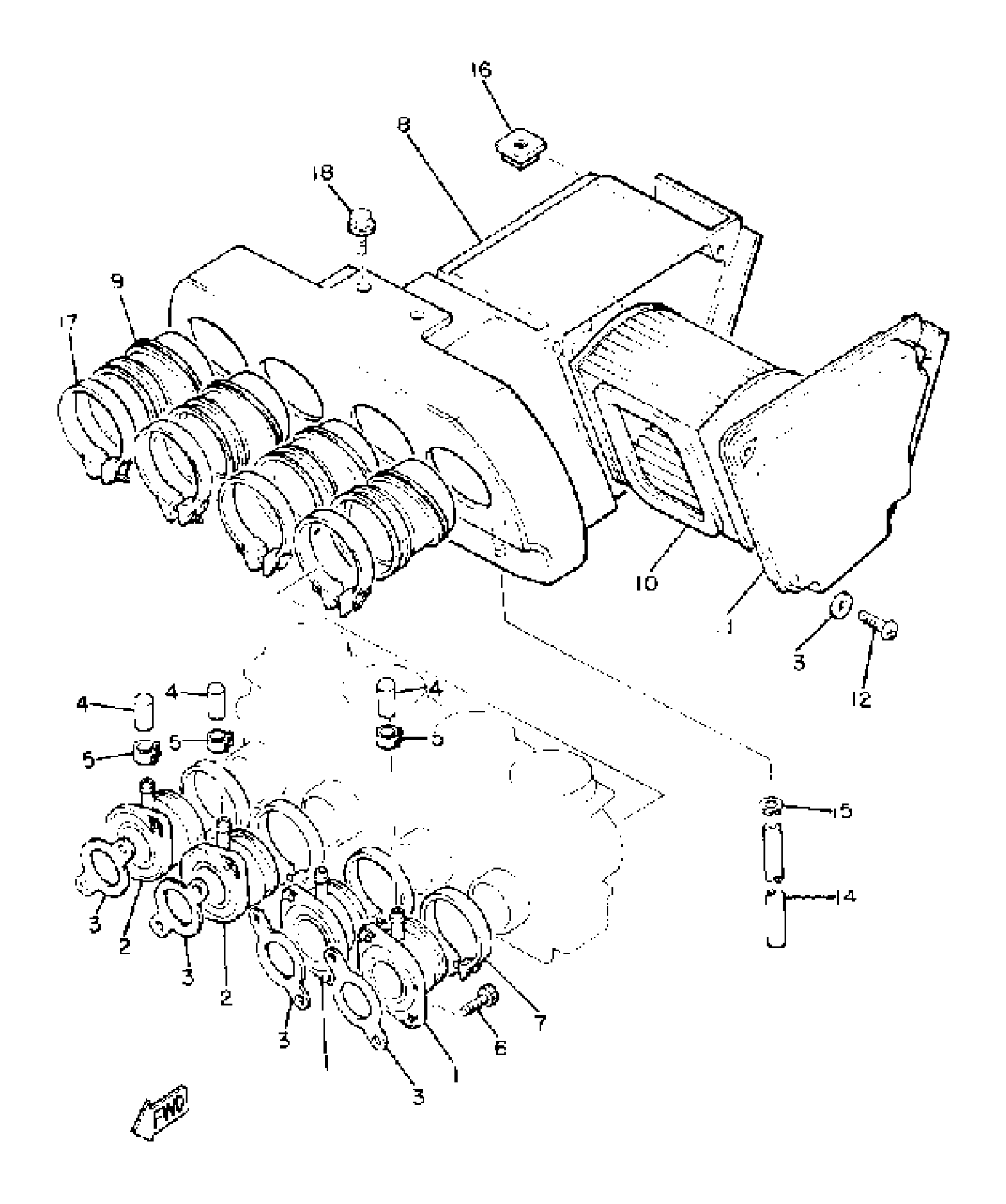

1981 Yamaha XJ550R (XJ550RH) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR

4G0-13586-02-00

—

$85.09

In stock

2

JOINT, CARBURETOR

4G0-13596-02-00

1

$117.22

In stock

3

GASKET

33M-13556-10-00

1

$3.48

In stock

4

PLUG, BLIND

16G-13569-00-00

1
Out of stock

5

CLIP (3G0)

90467-10039-00

1
Out of stock

6

BOLT,SOCKET

91317-06018-00

1

$6.17

In stock

7

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

8

AIR CLNR CASE ASSEMBLY

4U8-14401-00-00

1
Out of stock

9

JOINT, AIR CLEANER 1

4G0-14453-00-00

—

$18.21

In stock

10

ELEMENT, AIR CLEANER

4U8-14451-00-00

1

$42.14

In stock

11

CAP, CLEANER CASE 1

4U8-14412-00-00

1
Out of stock

12

SCREW, PAN HEAD(4MY)

98507-05025-00

1

$6.18

In stock

13

WASHER(1RW)

92907-05600-00

1
Out of stock

14

TUBE, FLEXIBLE(3NV)

91A21-07020-00

1

$8.95

In stock

15

CLIP

90467-090A2-00

1

$2.51

In stock

16

PLATE, CLNR CS FTNG

4H7-14484-00-00

1
Out of stock

17

HOSE CLAMP ASSY

90450-56001-00

—

$14.77

In stock

18

BOLT, WITH WASHER (4L6)

90119-06029-00

—

$5.38

In stock
