1981 Yamaha XJ550R (XJ550RH) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1981 Yamaha XJ550R (XJ550RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

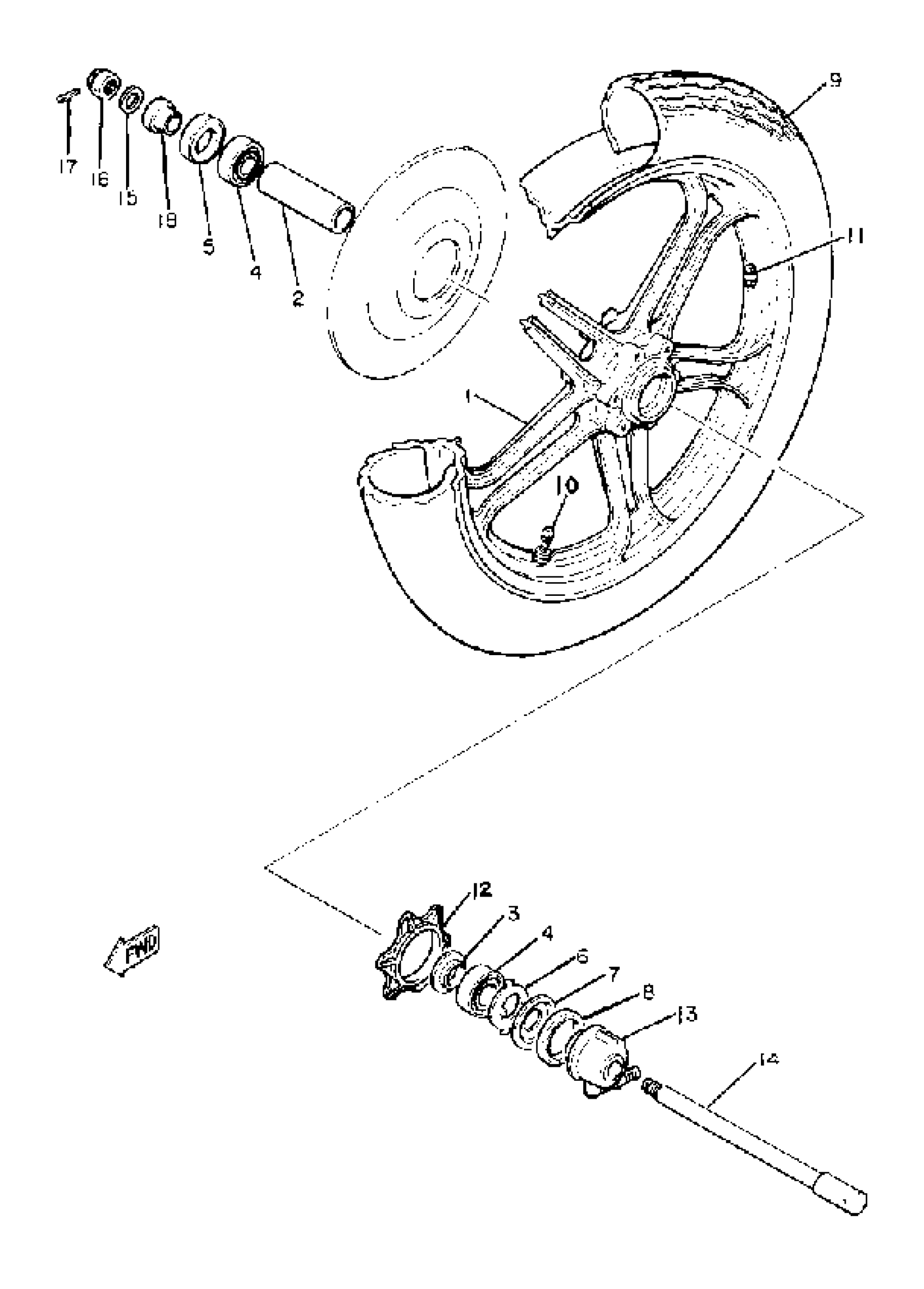

1981 Yamaha XJ550R (XJ550RH) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, CAST FRONT

4U8-25168-00-00

1
Out of stock

2

SPACER

90560-15116-00

1
Out of stock

3

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

4

BEARING

93306-30212-00

1

$33.35

In stock

5

OIL SEAL (22X42X7)

93102-22014-00

1

$10.68

In stock

6

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

1
Out of stock

8

OIL SEAL (45X56X6)

93105-45017-00

1
Out of stock

9

300H19 4PR L303 TL

94130-19447-00

1
Out of stock

10

VALVE, RIM (31A)

93900-00031-00

1
Out of stock

11

BALANCER, WHEEL

5MT-25398-00-00

1

$15.54

In stock

11

BALANCER, WHEEL

5MT-25398-00-00

1

$15.54

In stock

11

BALANCER, WHEEL

5MT-25398-00-00

1

$15.54

In stock

12

COVER, HOUSING

1U4-25847-00-00

1
Out of stock

13

GEAR UNIT ASY

31A-25190-10-00

1
Out of stock

14

AXLE, WHEEL

4H7-25181-01-00

1
Out of stock

15

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

16

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

17

PIN, COTTER

91490-30030-00

—

$7.15

In stock

18

COLLAR (1L9)

90387-15550-00

—
Out of stock
