1982 Yamaha XJ1100J (XJ1100J) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1982 Yamaha XJ1100J (XJ1100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

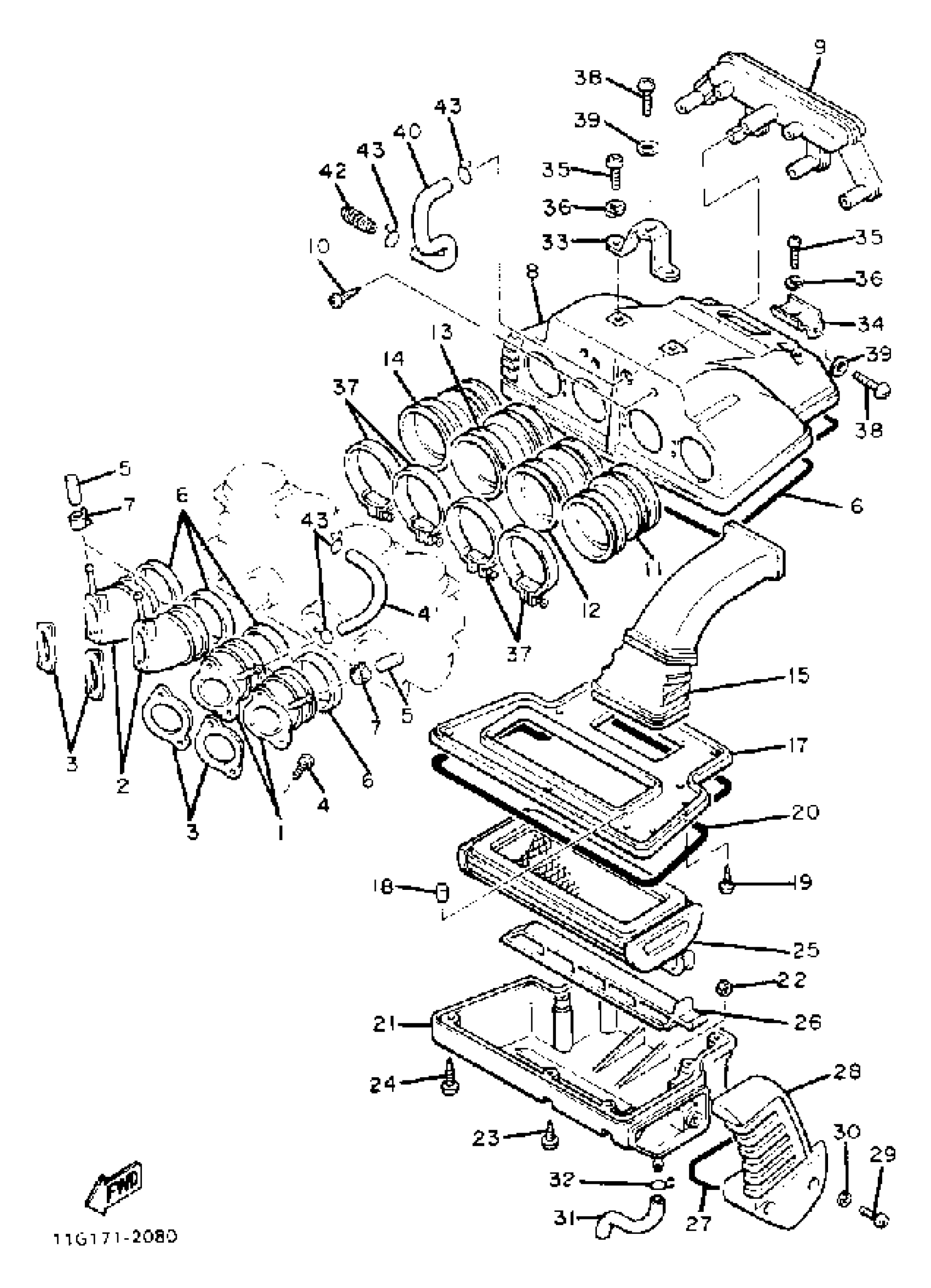

1982 Yamaha XJ1100J (XJ1100J) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR (L.H)

2H7-13586-00-00

—
Out of stock

2

JOINT, CARBURETOR 2

2H7-13596-00-00

1
Out of stock

3

GASKET, MANIFOLD

10M-13556-10-00

1
Out of stock

4

BOLT,SOCKET

91317-06020-00

—
Out of stock

5

PLUG, BLIND

16G-13569-00-00

1
Out of stock

6

HOSE CLAMP ASSY

90450-54008-00

1
Out of stock

7

CLIP (3G0)

90467-10039-00

1
Out of stock

8

CASE, AIR CLEANER 1

(10M-14411-00-00)

1
Out of stock

9

SEPARATOR, OIL

(10M-14434-01-00)

1
Out of stock

10

SCREW, TAPPING(61A)

97780-50612-00

1
Out of stock

11

JOINT, AIR CLNR 1

(10M-14453-01-00)

1
Out of stock

12

JOINT, AIR CLNR 2

10M-14463-01-00

1
Out of stock

13

JOINT

10M-14454-01-00

1
Out of stock

14

PIPE, JOINT

10M-14485-01-00

1
Out of stock

15

DUCT

(10M-14437-00-00)

1
Out of stock

16

SEAL

1VJ-14462-00-00

—
Out of stock

17

PARTN, AIR CLNR CS

(10M-1441F-00-00)

1
Out of stock

18

SEAL

5H0-14462-00-00

1
Out of stock

19

SCREW, PAN TAP.2 SLIT

97707-40610-00

—
Out of stock

20

SEAL

1VJ-14462-00-00

—
Out of stock

21

CASE, AIR CLEANER 2

10M-14421-00-00

1
Out of stock

22

NUT, FLANGE(3GM)

95707-05500-00

—
Out of stock

23

SCREW, TAPPING

(97701-60530-00)

1
Out of stock

24

SCREW, TAPPING

(97701-60545-00)

1
Out of stock

25

ELEMENT, AIR CLEANER

10M-14451-00-00

—
Out of stock

26

PLATE, ELEMENT FTNG

10M-14468-00-00

1
Out of stock

27

SEAL

1VJ-14462-00-00

—
Out of stock

28

CAP, CLEANER CASE 2

10M-14422-00-00

1
Out of stock

29

SCREW, PAN HEAD(4MY)

98507-05025-00

—
Out of stock

30

WASHER(1RW)

92907-05600-00

—
Out of stock

31

HOSE (L370)

90445-112E1-00

—
Out of stock

32

CLIP

90467-090A2-00

—
Out of stock

33

STAY 1

(10M-14498-00-00)

1
Out of stock

34

STAY 2

(10M-14499-00-00)

1
Out of stock

35

SCREW, PAN

98507-06014-00

—
Out of stock

36

WASHER, SPRING

92995-06100-00

1
Out of stock

37

HOSE CLAMP ASSY

90450-58002-00

—
Out of stock

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

39

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

40

PIPE, BREATHER 1

2H7-11166-00-00

1
Out of stock

41

PIPE, BREATHER 2

(10M-11167-00-00)

1
Out of stock

42

PIPE, BREATHER 1

(15A-11166-00-00)

1
Out of stock

43

CLIP (371)

90467-14015-00

—
Out of stock
