1982 Yamaha XJ1100J (XJ1100J) Frame Diagram

← All diagrams

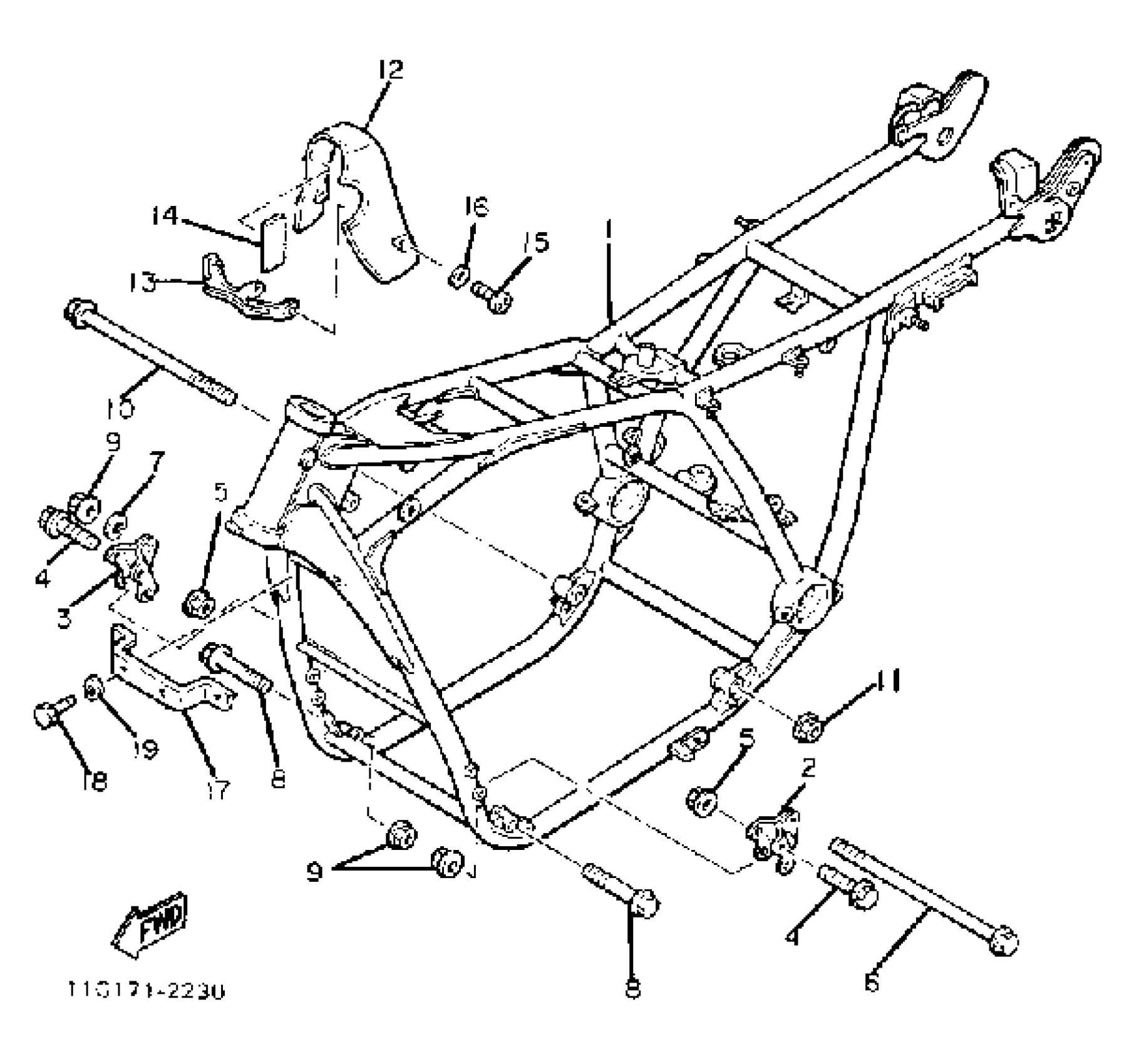

Find the part on the Frame diagram for your 1982 Yamaha XJ1100J (XJ1100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ1100J (XJ1100J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(10M-21110-00-98)

1
Out of stock

2

STAY, ENGINE 2

3H3-21315-00-00

1
Out of stock

3

STAY, ENGINE 3

(3H3-21316-00-00)

1
Out of stock

4

BOLT, WASHER BASED

90105-08107-00

1
Out of stock

5

NUT(55X)

90179-08491-00

1
Out of stock

6

BOLT, ENGINE MOUNTING

90105-10056-00

—

$17.74

In stock

7

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

8

BOLT, WASHER BASED (2H7)

90105-10105-00

1
Out of stock

9

NUT(4KG)

90179-10658-00

1

$7.49

In stock

10

BOLT, FLANGE

90105-12047-00

—
Out of stock

11

NUT(3EF)

90179-12657-00

1

$5.32

In stock

12

COVER 2

3H3-2139R-00-00

1
Out of stock

13

BRACKET, COVER

(4R0-2139T-00-00)

1
Out of stock

14

DAMPER 2

(3H3-2139U-00-00)

1
Out of stock

15

SCREW, PAN

98517-05012-00

1

$3.91

In stock

16

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

17

STAY, HORN

10M-2134Y-00-00

1
Out of stock

18

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

19

WASHER(JN5)

92907-08100-00

—

$5.98

In stock
