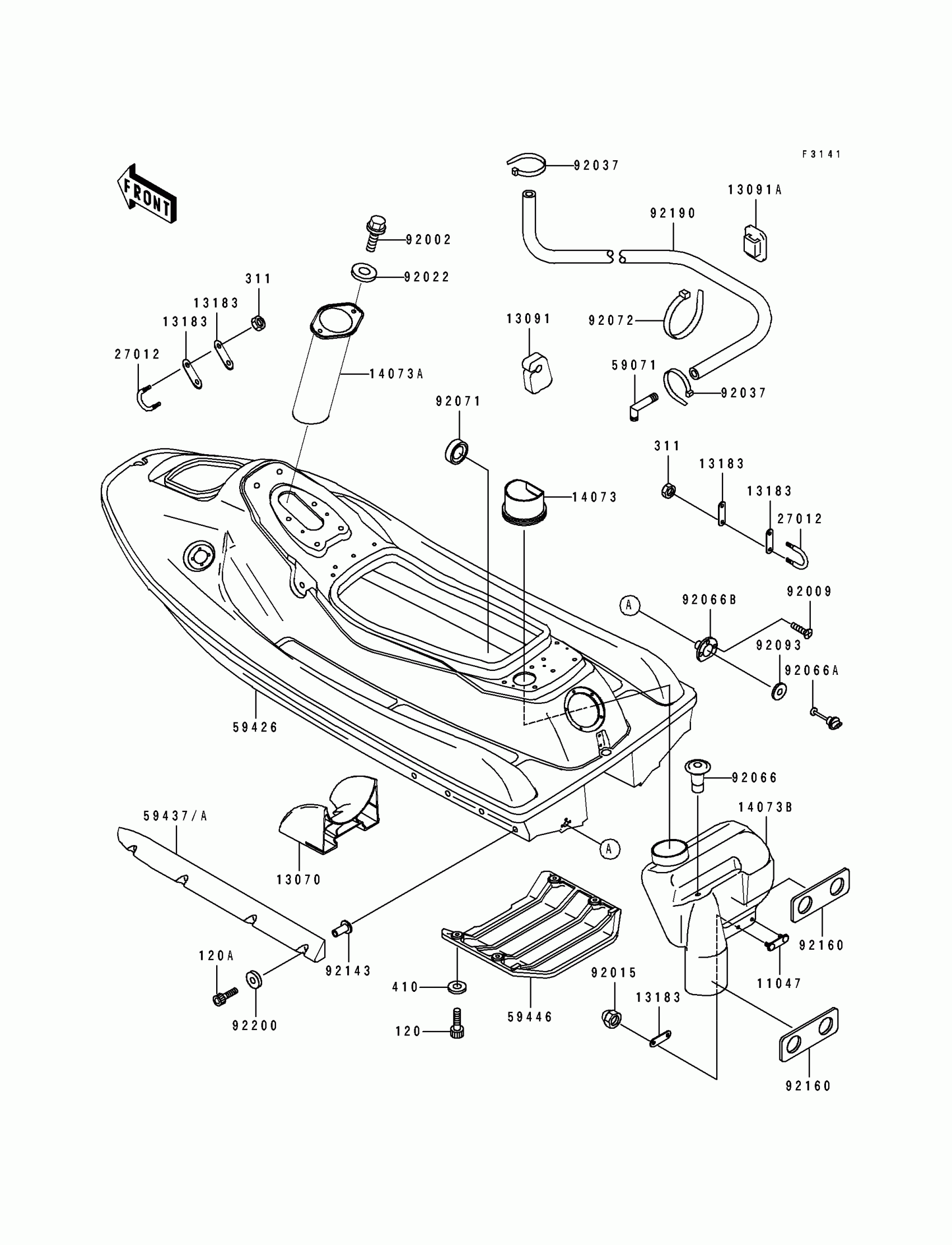

Kawasaki XiR Hull Diagram

#

Description
Price

11047

BRACKET,RR DUCT

11047-3774

Unavailable

13070

GUIDE,INTAKE

13070-3708

Unavailable

13091

HOLDER

13091-3712

$4.14

13091A

HOLDER,BAND

13091-3764

$4.58

13183

PLATE

13183-3809

$5.61

14073

DUCT,INTAKE

14073-3739

Unavailable

14073A

DUCT,FR

14073-3746

Unavailable

14073B

DUCT,RR,MAIN

14073-3747

Unavailable

27012

HOOK

27012-3761

$37.38

59071

JOINT

59071-3733

Unavailable

59426

HULL-COMP,J.WHITE

59426-3823-8C

$2,616.87

59437

STABILIZER,RH,C.C.BLUE

59437-3704-3E

$117.76

59437A

STABILIZER,LH,C.C.BLUE

59437-3705-3E

$117.76

59446

COVER-JET PUMP

59446-3727

$112.73

92002

BOLT,6X16

92002-3728

$3.24

92009

SCREW,TAPPING,4X14

92009-3755

$2.10

92015

NUT,CAP,6MM

92015-3755

$4.59

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92037

CLAMP

92037-1173

$2.58

92066

PLUG

92066-3706

$4.71

92066A

PLUG,RR,DRAIN

92066-3744

$16.76

92066B

PLUG,RR,DRAIN

92066-3747

$19.78

92071

GROMMET

92071-3783

Unavailable

92072

BAND,L=201

92072-3778

$1.61

92093

SEAL

92093-3720

$2.75

92143

COLLAR

92143-3739

Unavailable

92160

DAMPER

92160-3722

Unavailable

92190

TUBE,5X10X1600

92190-3926

$14.42

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

120

BOLT-SOCKET,6X20

120R0620

$2.74

120A

BOLT-SOCKET,6X40

120R0640

$4.42

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68
