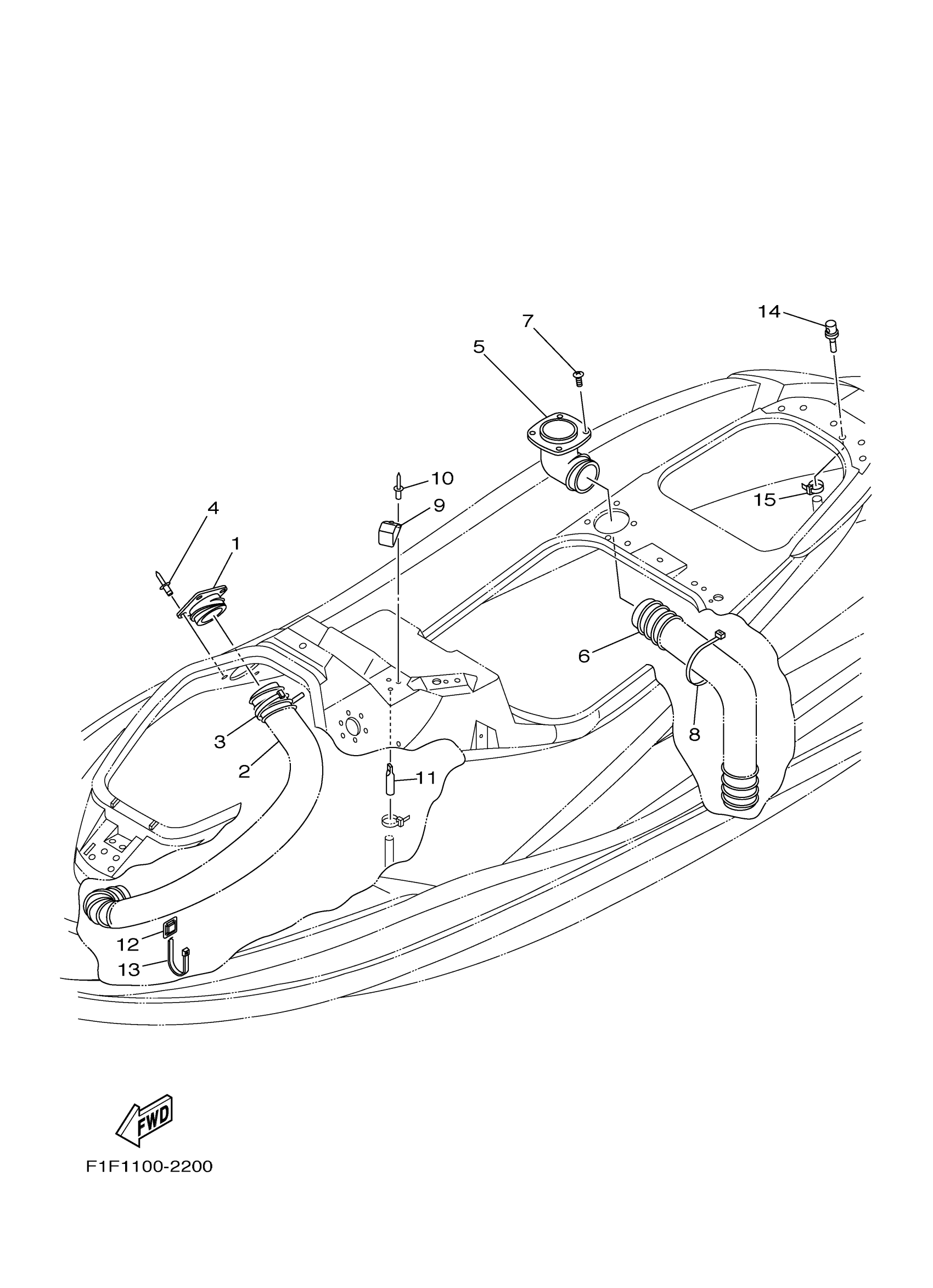

Yamaha XA800AC (XLT800) F1F7 2004 VENTILATION Diagram

#

Description
Price

1

BASE, AIR INTAKE

F0D-62127-00-00

$76.10

2

HOSE, VENTILATOR 1

F0D-U213F-05-00

Unavailable

3

CLAMP

90464-99804-00

$4.10

4

RIVET, BLIND

90267-489UE-00

Unavailable

5

VENTILATOR, OUTLET

F0D-62139-00-00

$88.04

6

HOSE, VENTILATOR 2

F0D-U213G-04-00

Unavailable

7

SCREW (EW2)

90149-05962-00

$2.13

8

BAND

90601-200U7-00

$3.06

9

SOCKET, VENTILATION

GP7-62159-02-00

$18.49

10

RIVET, BLIND

90267-48802-00

$1.98

11

PIPE, VENTILATION 1

EW2-62149-00-00

$7.16

12

BASE, CLAMP

90600-900U6-00

Unavailable

13

CLAMP

90465-10098-00

$2.24

14

NIPPLE

GJ3-6215F-00-00

$8.94

15

CLAMP

90464-99801-00

$2.69
