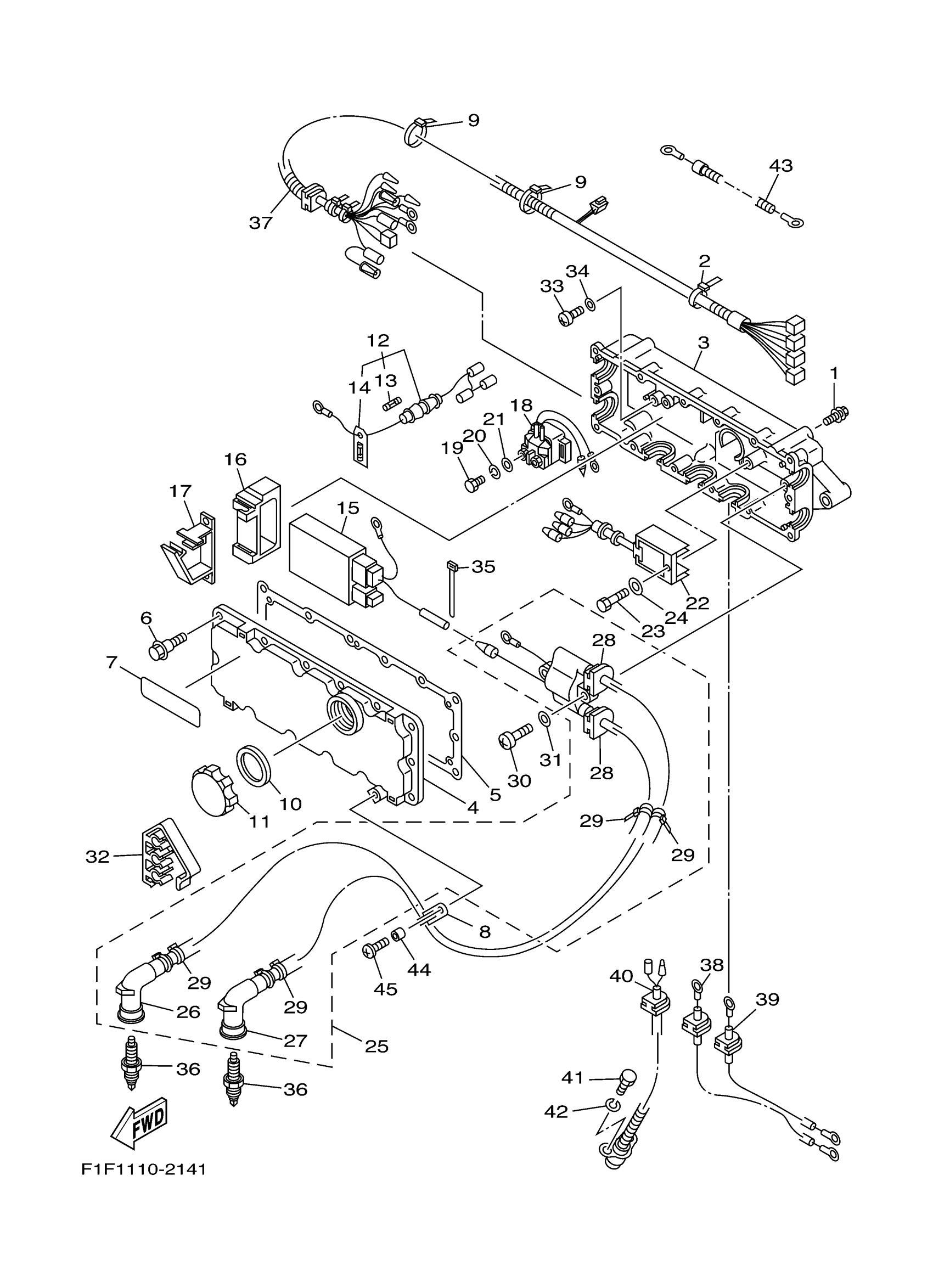

Yamaha XA800AB (XLT800) F1F4 2003 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08809-00

Unavailable

2

CLAMP(62T)

90465-12M56-00

$6.64

3

HOUSING

66E-8552A-00-94

$201.50

4

COVER, CASE

66E-8552E-00-00

Unavailable

5

GASKET, TERMINAL

66E-81921-00-00

$56.99

6

BOLT

90109-05MA0-00

$9.64

7

MARK 3

6R7-83623-40-00

$7.27

8

CLAMP

90465-12M53-00

$5.00

9

CLAMP(6E8)

90465-13M39-00

$4.47

10

GASKET

6M6-81844-00-00

$10.99

11

CAP

6M6-8132W-00-00

$14.38

12

FUSE HOLDER ASSY

66E-82150-00-00

Unavailable

13

FUSE (10A)

1E6-82151-00-00

$5.80

14

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

15

C.D.I. UNIT ASSY

66E-85540-00-00

$293.11

16

BAND

64X-85546-00-00

Unavailable

17

CLAMP

90464-06M29-00

$6.36

18

STARTER RELAY ASSY

68N-81940-00-00

$85.05

19

BOLT

97085-06010-00

$1.21

20

WASHER, SPRING

92995-06100-00

$2.95

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

RECTIFIER & REGULATOR ASSY

63M-81960-00-00

Unavailable

23

BOLT(GH1)

97080-06012-00

$2.56

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

IGNITION COIL ASSY

64X-85570-01-00

$278.77

26

. CAP, PLUG

62E-82371-11-00

$42.41

27

. CAP, PLUG

62E-82371-11-00

$42.41

28

GROMMET

90480-06M43-00

$6.82

29

CLAMP

90465-10098-00

$1.68

30

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

CLAMP, CORD

65U-81317-10-00

$7.27

33

SCREW, PAN HEAD

98580-06016-00

$2.88

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

CLAMP

90465-10098-00

$1.68

36

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

$3.82

37

EXTENSION, WIRE LEAD

60G-82553-00-00

Unavailable

38

WIRE, LEAD

6M6-82117-21-00

Unavailable

39

WIRE, LEAD

66E-82117-10-00

$107.56

40

THERMO SWITCH ASSY

68A-82560-01-00

Unavailable

41

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

42

WASHER, SPRING

92995-06100-00

$2.95

43

WIRE, LEAD

61L-82117-00-00

$106.05

44

COLLAR

90387-06M05-00

$6.45

45

SCREW, TAPPING

97780-60425-00

Unavailable
