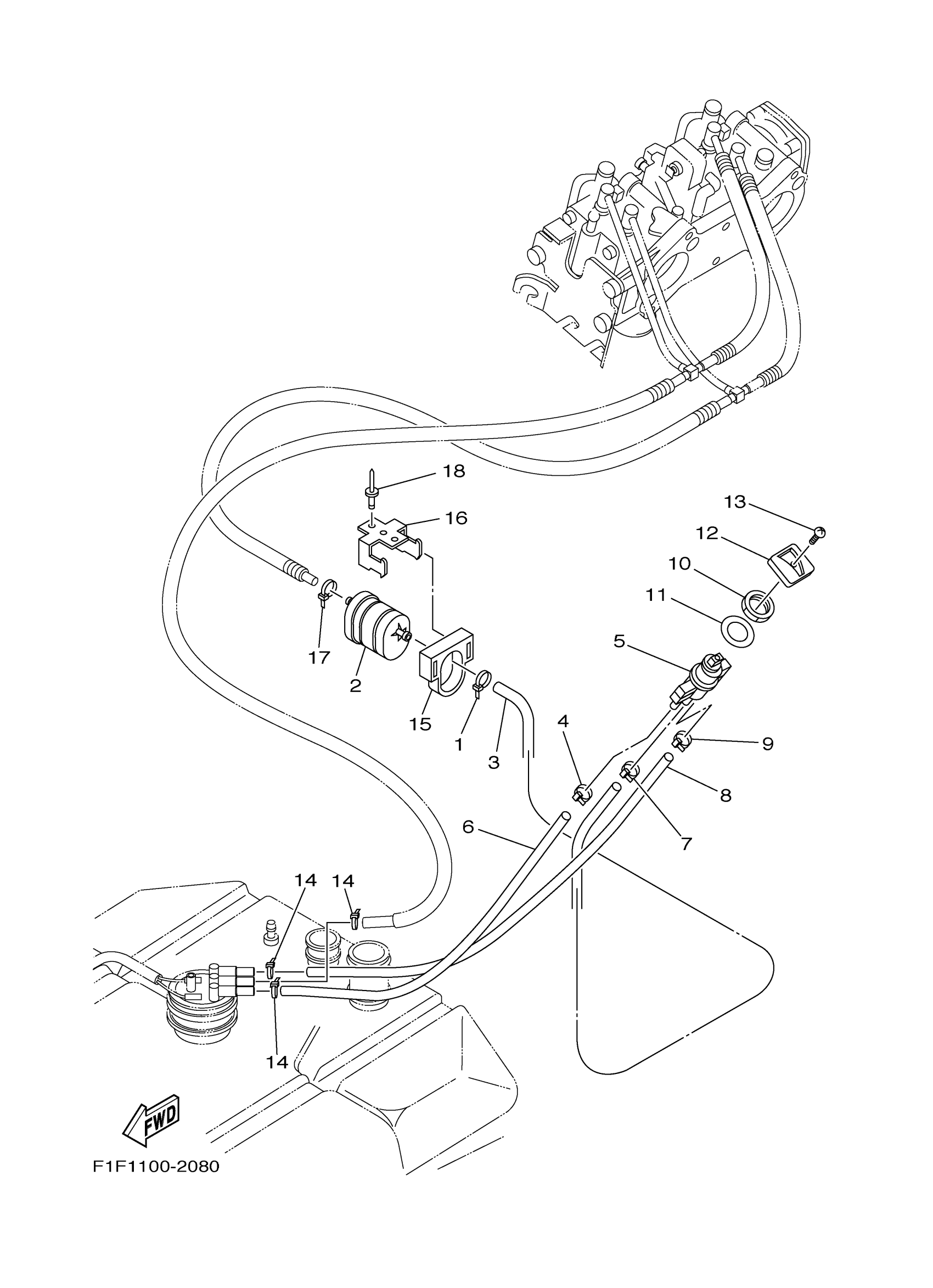

Yamaha XA800AA (XLT800) F1F1 2002 FUEL Diagram

#

Description
Price

1

CLAMP

90465-10098-00

$1.68

2

FILTER ASSY

66V-24560-01-00

$32.97

3

HOSE

90445-11M71-00

Unavailable

4

CLAMP

90465-10098-00

$1.68

5

FUEL COCK ASSY 1

66V-24500-02-00

$63.62

6

HOSE

90445-11M71-00

Unavailable

7

CLAMP

90465-10098-00

$1.68

8

HOSE

90445-11M71-00

Unavailable

9

CLAMP

90465-10098-00

$1.68

10

NUT, HEXAGON (1E6)

90170-22187-00

$7.77

11

WASHER, PLATE

90202-229U1-00

$14.35

12

LEVER, COCK

F0D-6777C-00-00

$11.48

13

SCREW, BIND

98980-04008-00

$3.05

14

CLAMP

90465-10098-00

$1.68

15

HOLDER, FILTER

EU0-U7817-00-00

$13.63

16

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

17

CLAMP

90465-10098-00

$1.68

18

RIVET (EU0)

90267-48938-00

$5.00
