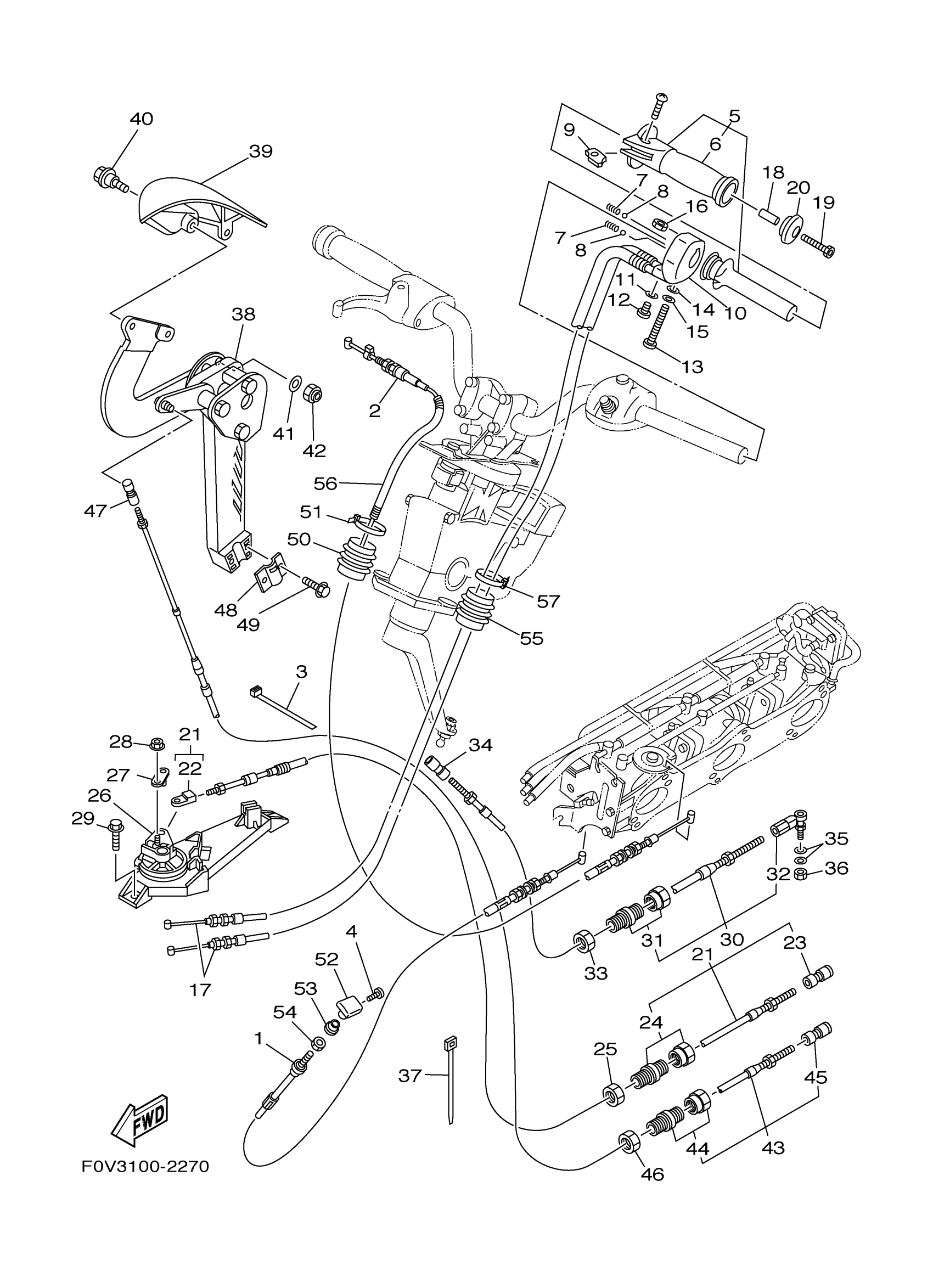

Yamaha XA1200AC (XLT1200) F0V9 2004 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, CHOKE

66V-67242-01-00

$122.71

2

CABLE, THROTTLE

66V-67252-00-00

Unavailable

3

CLAMP

90465-10098-00

$1.68

4

SCREW

90149-03M15-00

$1.44

5

GRIP, HANDLE ASSY.

GP7-U157A-00-00

$454.53

6

. GRIP, HANDLE

GP7-U155C-00-00

$58.88

7

SPRING

GP7-U152P-00-00

$12.86

8

BALL

GP7-U152R-00-00

Unavailable

9

LEVER ASSY

GP7-U151M-00-00

Unavailable

10

HOUSING ASSY

GP7-U152M-00-00

Unavailable

11

WASHER, PLAIN (646)

92990-04600-00

$0.91

12

SCREW, BINDING (M01)

98980-04010-00

$5.02

13

SCREW PAN HEAD

98580-06565-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$1.84

15

WASHER

9299R-06100-00

Unavailable

16

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

17

CABLE, NOZZLE CONTROL 2

F0D-U153D-01-00

Unavailable

18

COLLAR

90387-05800-00

$3.86

19

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

20

GRIP, END

GP7-U155F-00-00

$2.88

21

CABLE,NOZZLE CONTROL 3

F0D-6153E-18-00

Unavailable

22

. END, CABLE

GH1-U046C-00-00

Unavailable

23

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

24

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

25

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

26

REMOCON,NOZZLE 2

F0D-U153J-10-00

Unavailable

27

PIN

F0D-U152C-10-00

Unavailable

28

NUT, NYLON

9572R-06300-00

$2.80

29

BOLT, WITH WASHER

90119-069UJ-00

$2.80

30

CABLE, STEERING

F0D-U1481-10-00

Unavailable

31

CONNECTOR, CABLE

GK5-67267-00-00

Unavailable

32

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

33

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

34

SHAFT,JOINT BALL

GK5-U146F-00-00

$23.31

35

WASHER, PLATE

90201-06906-00

$2.80

36

NUT

9538R-06700-00

$1.01

37

BAND

90601-200U1-00

$2.77

38

REMOCON. LEVER ASSY.

F0V-6134A-00-00

Unavailable

39

GRIP

F0V-U2714-00-00

Unavailable

40

BOLT

90109-06803-00

Unavailable

41

WASHER

9299R-06200-00

$0.43

42

NUT, NYLON

9572R-06300-00

$2.80

43

CABLE, REVERSE

F0V-U149C-01-00

Unavailable

44

. CONNECTOR, CABLE

F0V-U7267-00-00

Unavailable

45

. STUD, JOINT BALL

F0V-U1461-00-00

$43.92

46

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

47

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

48

STOPPER, CABLE

GH1-61468-01-00

$8.32

49

BOLT, WITH WASHER

90119-069UJ-00

$2.80

50

GROMMET

F0D-6822E-00-00

$18.49

51

BAND

90601-200U1-00

$2.77

52

. KNOB

EW2-67243-00-00

$13.33

53

NUT, COMPRESSION

F0N-6724E-00-00

$1.36

54

NUT

F0P-6724F-00-00

$10.49

55

GROMMET

F0D-6822E-00-00

$18.49

56

TUBE, 2

F0D-6773E-00-00

$16.99

57

BAND

90601-200U1-00

$2.77
