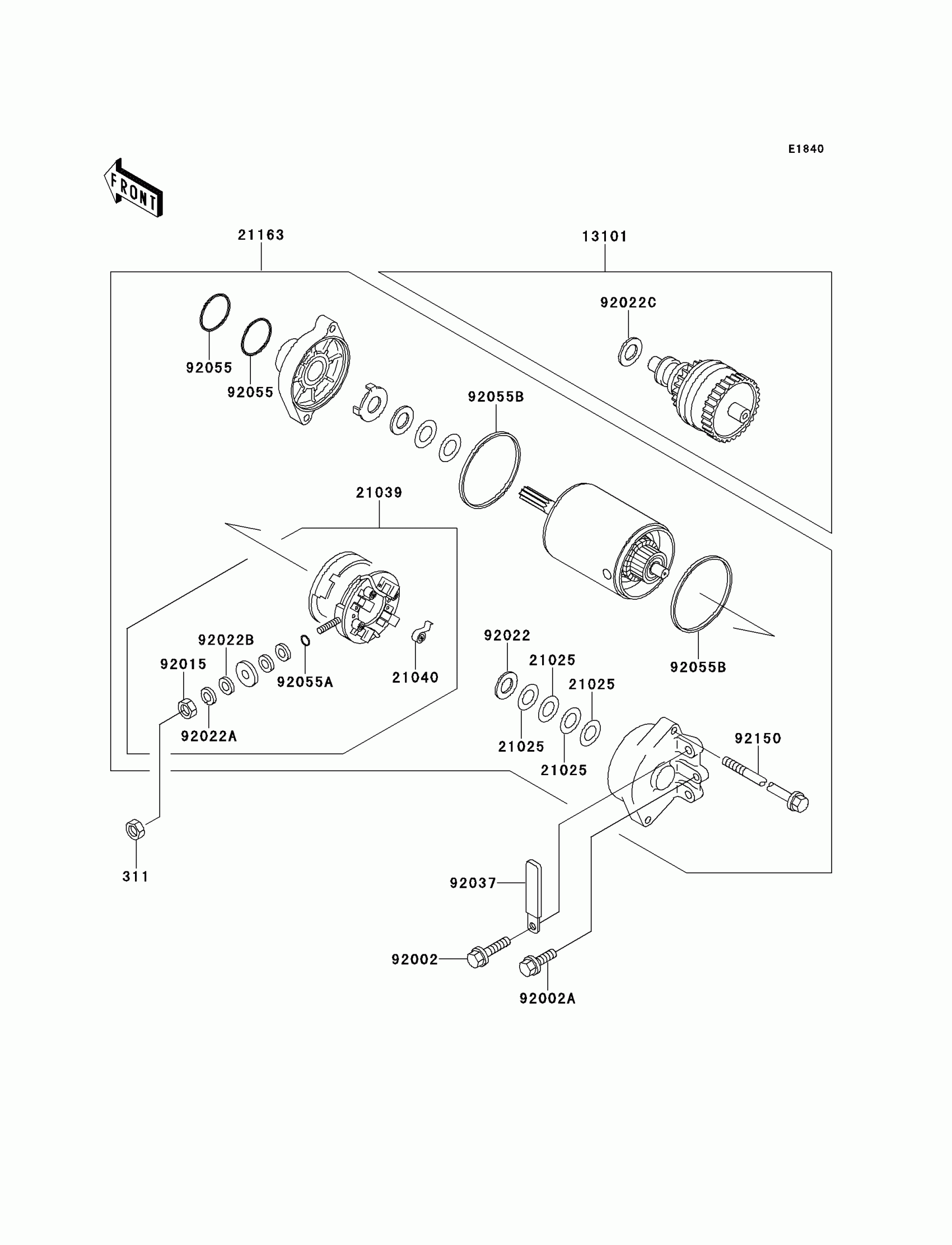

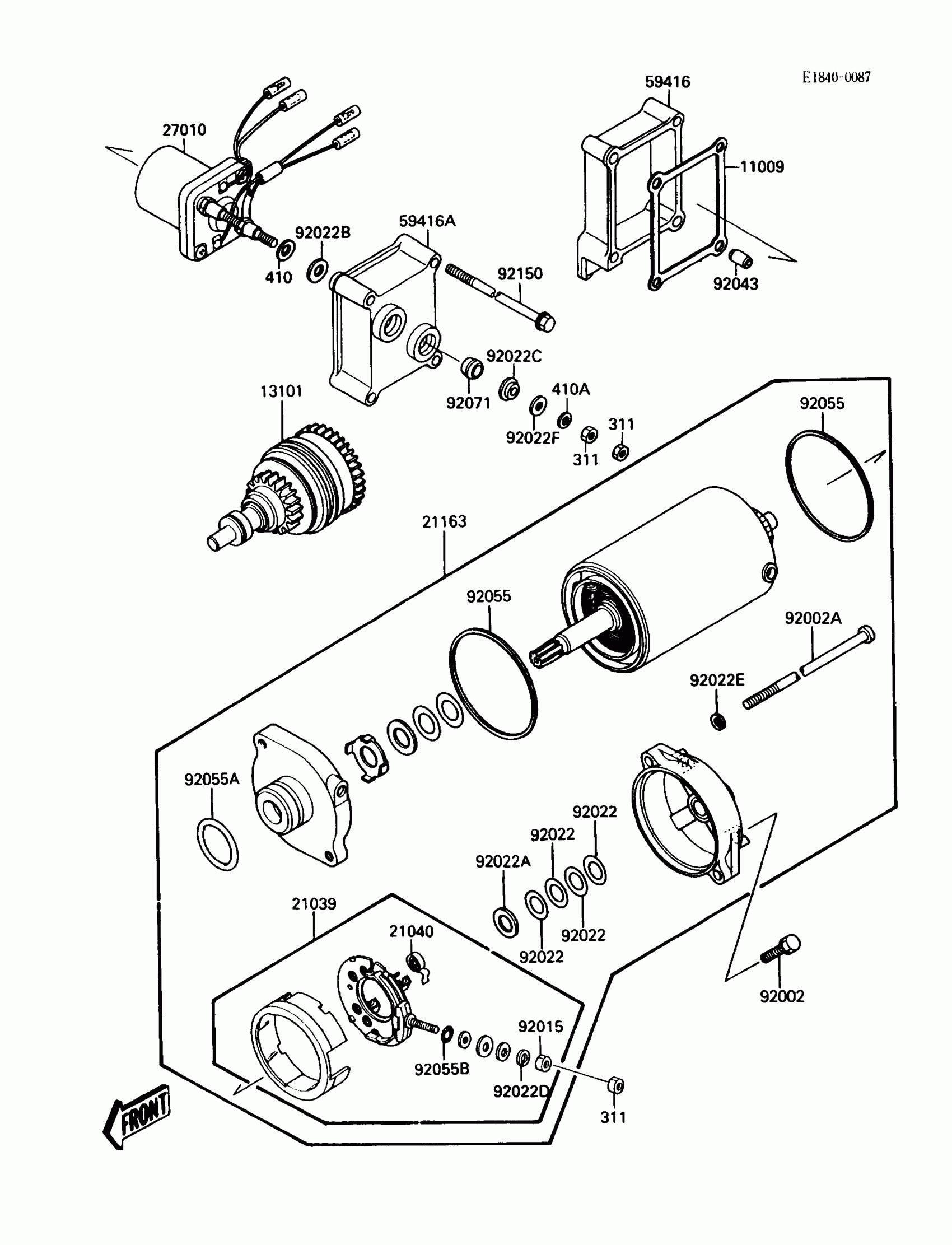

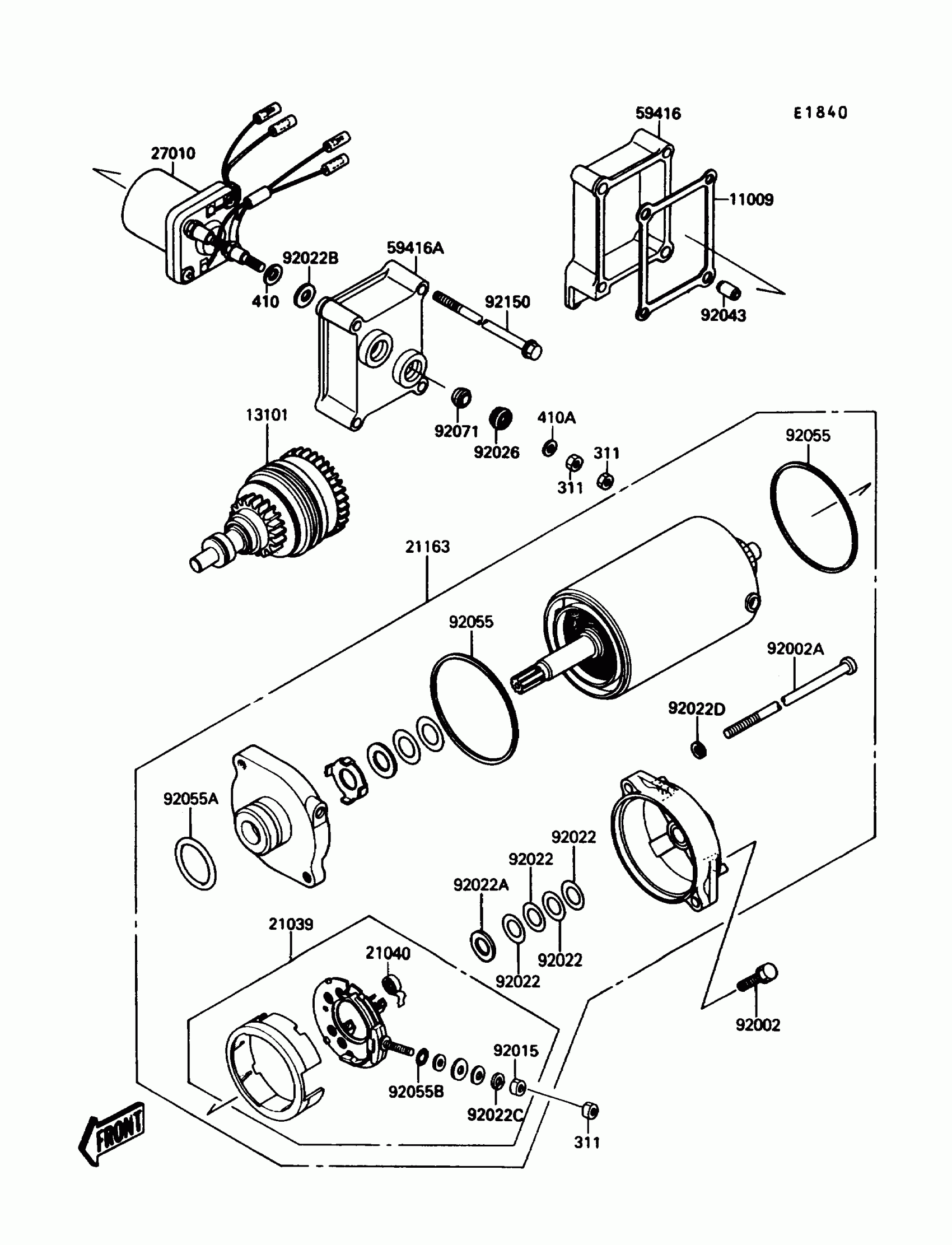

Kawasaki X2 Starter Motor Diagram

#

Description
Price

11009

GASKET

11009-3739

Unavailable

13101

GEAR-ASSY

13101-3701

Unavailable

21039

BRUSH,CARBON

21039-3702

Unavailable

21040

SPRING-BRUSH

21040-1003

$9.12

21163

STARTER-ELECTRIC

21163-3702

Unavailable

27010

SWITCH

27010-3706

$157.99

59416

CASE-ELECTRIC

59416-3710

$61.47

59416A

CASE-ELECTRIC

59416-3711

$68.39

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT

92002-3744

$37.51

92015

NUT,6MM

92015-3710

$3.75

92022

WASHER,9.1X18X0.2

21025-011

$4.67

92022A

WASHER,9.1X18X0.8

92022-1132

$5.42

92022B

WASHER

92022-3035

$2.69

92022C

WASHER

92022-3036

Unavailable

92022D

WASHER,6MM

92022-3711

$3.75

92022E

WASHER,SPRING,5MM

92022-3712

Unavailable

92022F

WASHER

92022-553

$0.97

92043

PIN

92043-3715

$5.61

92055

RING-O,64MM

92055-1086

$9.68

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92071

GROMMET

92071-3004

$3.05

92150

BOLT,6X80

92150-3711

$12.42

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER PLAIN 10MM

410B1000

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable
