Partiron

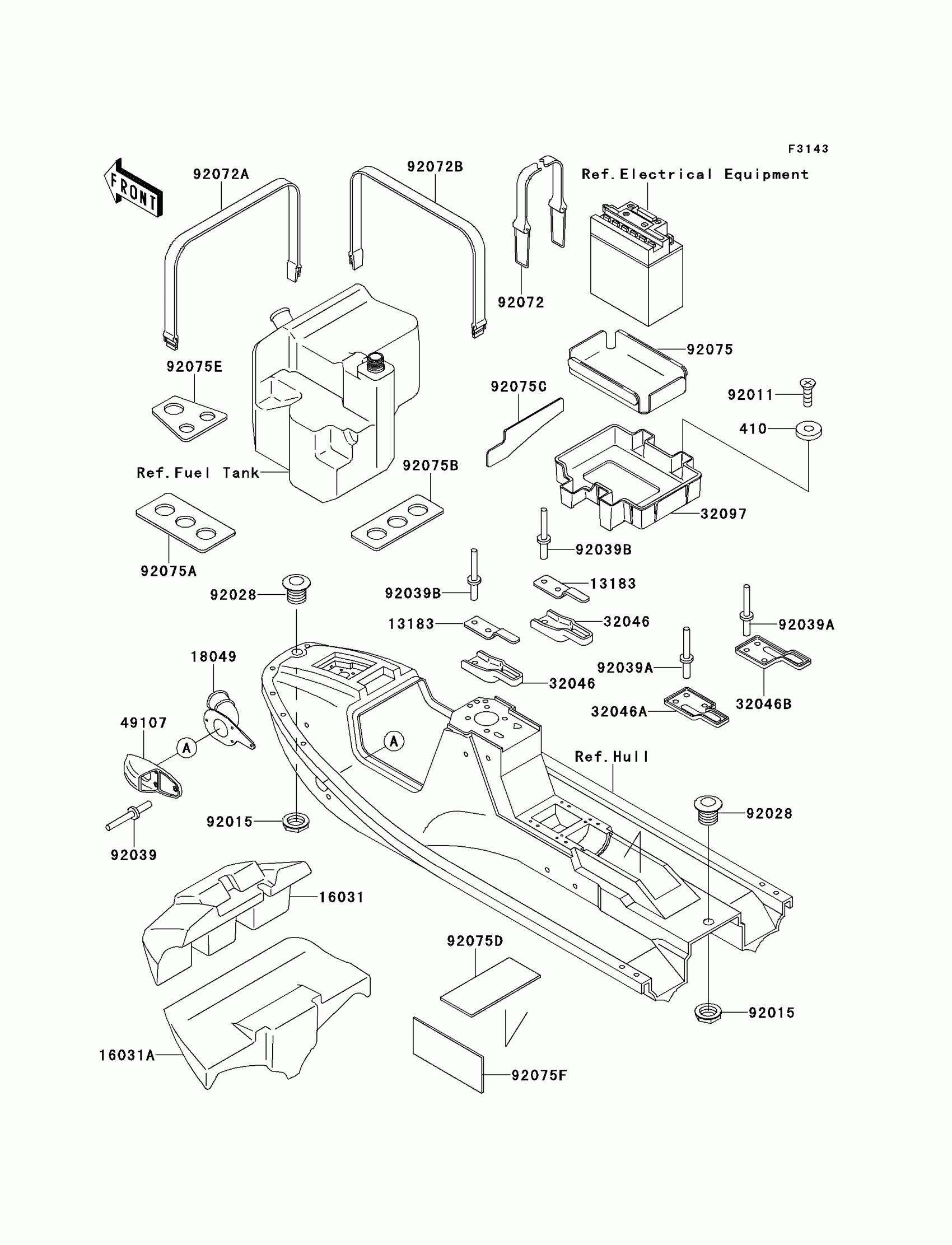

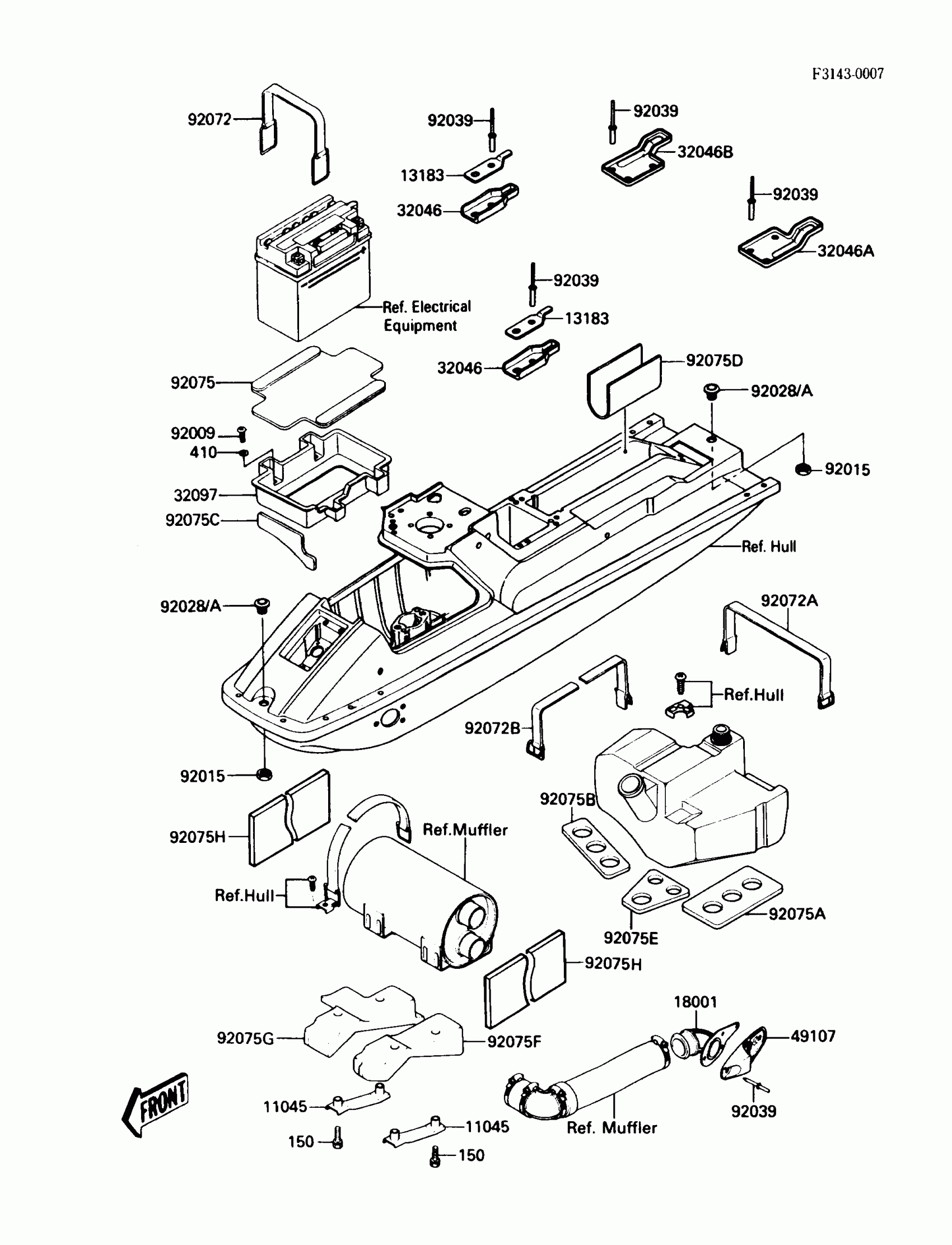

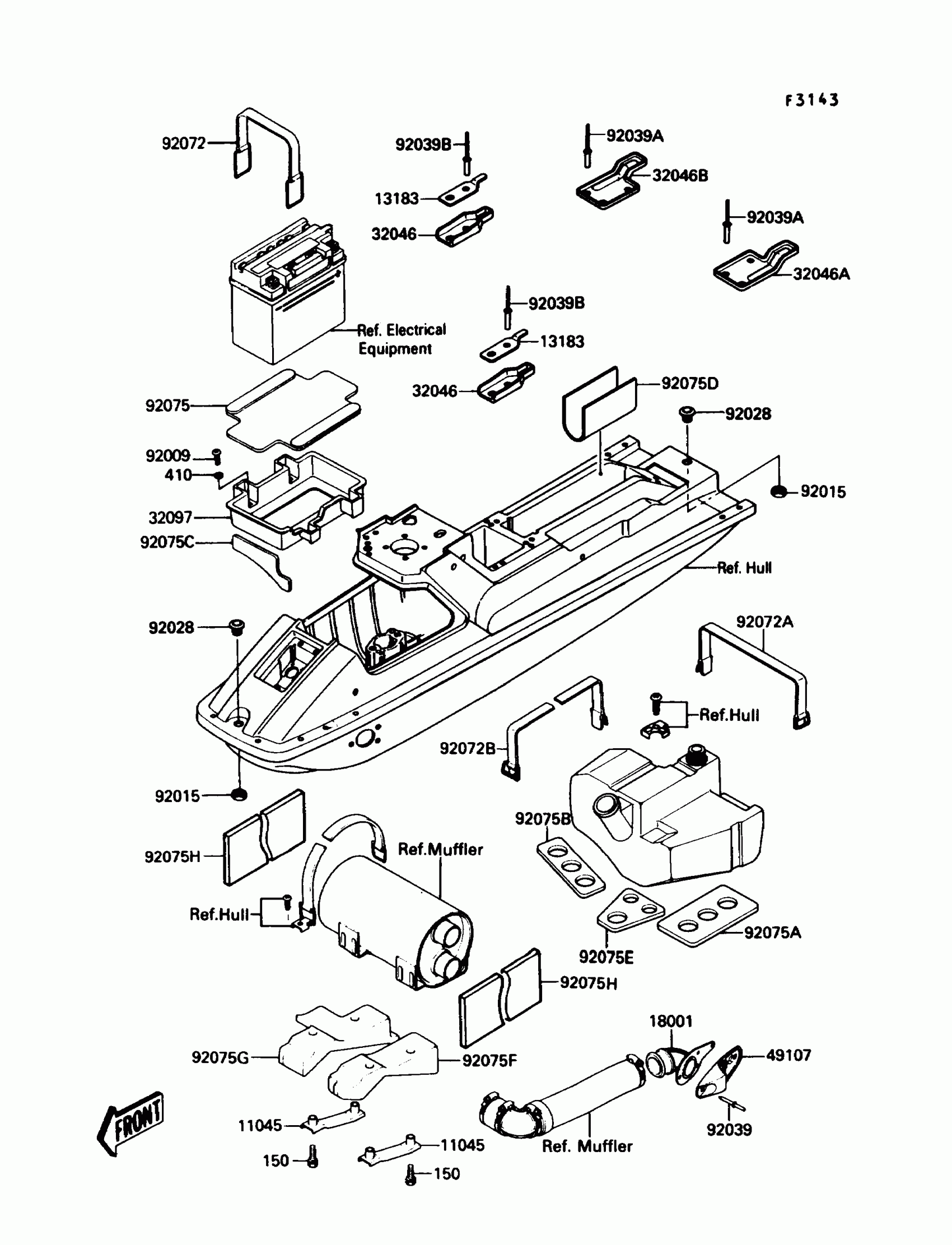

Kawasaki X2 Hull Fittings Diagram

#

Description
Price

11045

BRACKET,WATER MUFFLER

11045-3763

Unavailable

13183

PLATE,SEAT,FR

13183-3721

Unavailable

18001

MUFFLER,TAIL

18001-3719

$79.51

32046

BRACKET-SEAT,FR

32046-3704

Unavailable

32046A

BRACKET-SEAT,CNT,LH

32046-3705

Unavailable

32046B

BRACKET-SEAT,CNT,RH

32046-3706

Unavailable

32097

CASE-BATTERY

32097-3702

Unavailable

49107

COVER-EXHAUST PIPE

49107-3703

$59.07

92009

SCREW,TAPPING

92011-561

Unavailable

92015

NUT,20MM

92015-3721

Unavailable

92028

BUSHING,L=18

92028-3724

Unavailable

92028A

BUSHING,L=21

92028-3727

Unavailable

92039

RIVET

92039-3002

$5.82

92072

BAND,BATTERY,L=366

92072-3706

$40.40

92072A

BAND,L=544

92072-3709

Unavailable

92072B

BAND,L=479

92072-3712

$34.31

92075

DAMPER,BATTERY

92075-3714

$16.74

92075A

DAMPER,FUEL TANK,LH

92075-3727

$35.45

92075B

DAMPER,FUEL TANK,RH

92075-3729

Unavailable

92075C

DAMPER,FUEL TANK

92075-3738

Unavailable

92075D

DAMPER,FIRE EXTINGUISHER

92075-3750

$18.98

92075E

DAMPER,FUEL TANK

92075-3751

Unavailable

92075F

DAMPER,WATER MUFFLER,LH

92075-3761

$184.18

92075G

DAMPER,WATER MUFFLER,RH

92075-3762

$194.05

92075H

DAMPER,MUFFLER

92075-522

Unavailable

150

BOLT-WS,6X22

150R0622

$4.67

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78
