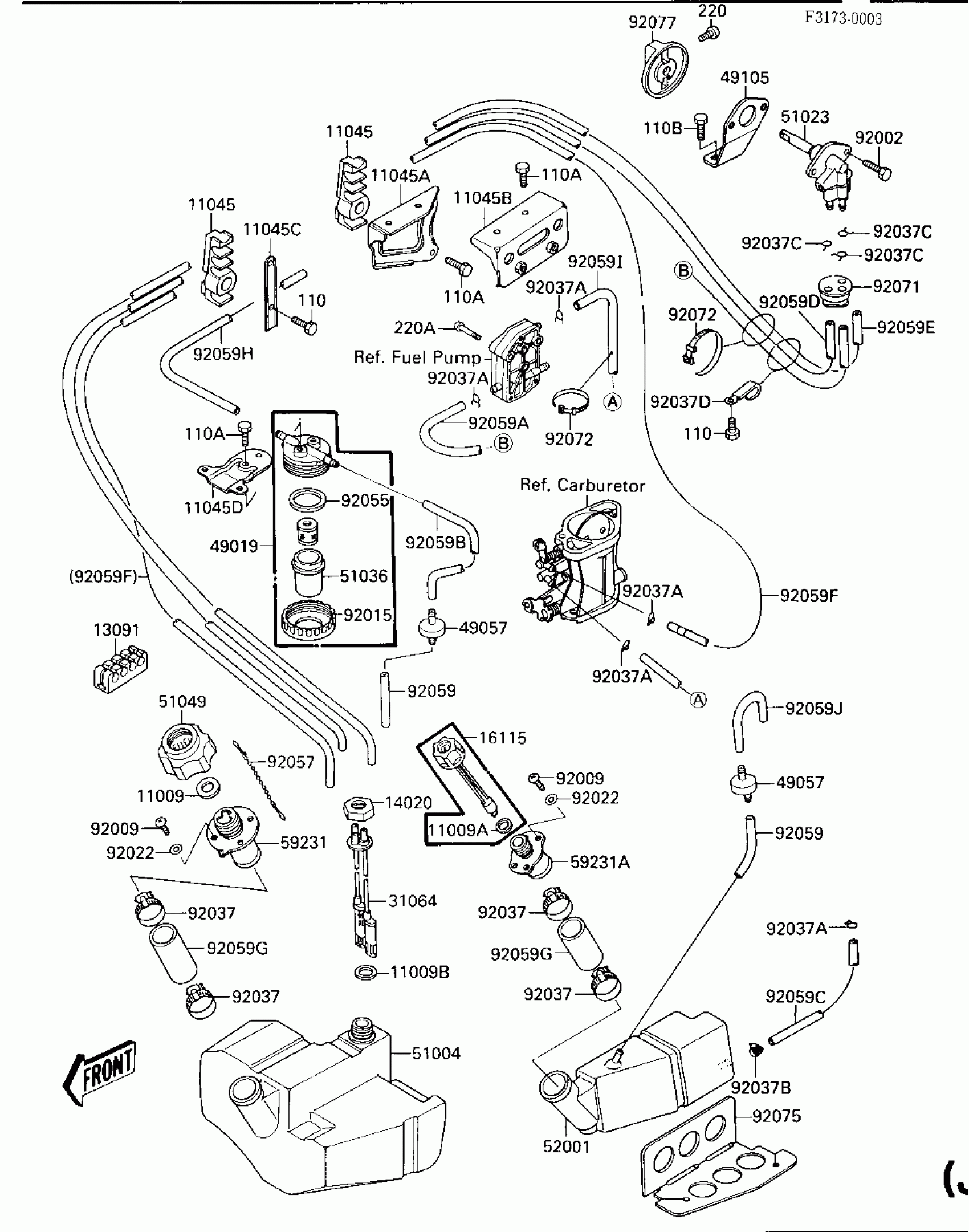

Kawasaki X2 FUEL TANK/OIL TANK (JF650-A2) Diagram

#

Description
Price

11009

GASKET,TANK CAP

11009-3020

$10.69

11009A

GASKET,OIL FILLER CAP

11009-3736

Unavailable

11009B

GASKET

92065-504

$12.11

11045

BRACKET,FUEL PIPE

11044-3718

Unavailable

11045A

BRACKET,FUEL PUMP

11044-3719

Unavailable

11045B

BRACKET,FUEL PUMP

11045-3702

Unavailable

11045C

BRACKET

11045-3757

Unavailable

11045D

BRACKET

11045-3760

Unavailable

13091

HOLDER,FUEL PIPE

13091-3709

Unavailable

14020

RETAINER

23072-501

Unavailable

16115

CAP-OIL FILLER

16115-3705

$65.12

31064

PIPE-COMP,FUEL

31064-3717

Unavailable

49019

FILTER-FUEL

49019-3706

Unavailable

49057

VALVE-RELIEF

49057-3001

$59.58

49105

BRACKET-TAP

49105-3704

Unavailable

51004

TANK-FUEL

51004-3704

Unavailable

51023

TAP-ASSY,FUEL

51023-3703

Unavailable

51036

CUP,FUEL FILTER

51036-3702

Unavailable

51049

CAP-TANK,FUEL

51049-3705

Unavailable

52001

TANK-OIL

52001-3704

$20.41

59231

FILLER,FUEL TANK

59231-3702

$18.64

59231A

FILLER,OIL TANK

59231-3703

$17.66

92002

BOLT,5X16

92002-3747

$3.97

92009

SCREW

92011-562

$1.42

92015

NUT,RING

92015-3013

Unavailable

92022

WASHER

92022-563

$1.05

92037

CLAMP

92037-3009

$3.25

92037A

CLAMP

92037-1173

$2.92

92037B

CLAMP

92037-3726

$3.63

92037C

CLAMP

92037-3727

$1.88

92037D

CLAMP,L=100

92037-3736

$4.85

92055

RING-O,FILTER CUP

92055-3006

Unavailable

92057

CHAIN,COVER,L=100

92057-3704

$15.18

92059

TUBE,5.8X12.2X55

92059-3026

Unavailable

92059A

TUBE,5.8X700

92059-3720

$36.41

92059B

TUBE,5.8X10.8X200

92059-3721

$7.24

92059C

TUBE,5.8X10.8X360

92059-3743

Unavailable

92059D

TUBE,"RES",5.8X1400

92059-3744

$36.41

92059E

TUBE,"ON",5.8X1400

92059-3745

$36.41

92059F

TUBE,RETURN,7X12X1230

92059-3746

$36.83

92059G

TUBE,45X53X75

92059-3751

Unavailable

92059H

TUBE,5.8X10.8X1260

92059-3770

$36.41

92059I

TUBE,5.8X10.8X330

92059-3794

Unavailable

92059J

TUBE

92059-3802

Unavailable

92071

GROMMET

92071-3745

Unavailable

92072

BAND,L=186

92072-056

$3.97

92075

DAMPER

92075-3728

Unavailable

92077

KNOB,FUEL TAP

92077-3704

Unavailable

110

BOLT (6X10)

110R0610

Unavailable

110A

BOLT 6X12

110R0612

Unavailable

110B

BOLT,6X16

110R0616

Unavailable

220

SCREW-PAN-CROS,4X8

220R0408

Unavailable

220A

SCREW-PAN-CROS,6X40

220R0640

$2.95
