1998 Yamaha Waveventure 700 (WVT700W) Hull Deck Diagram

← All diagrams

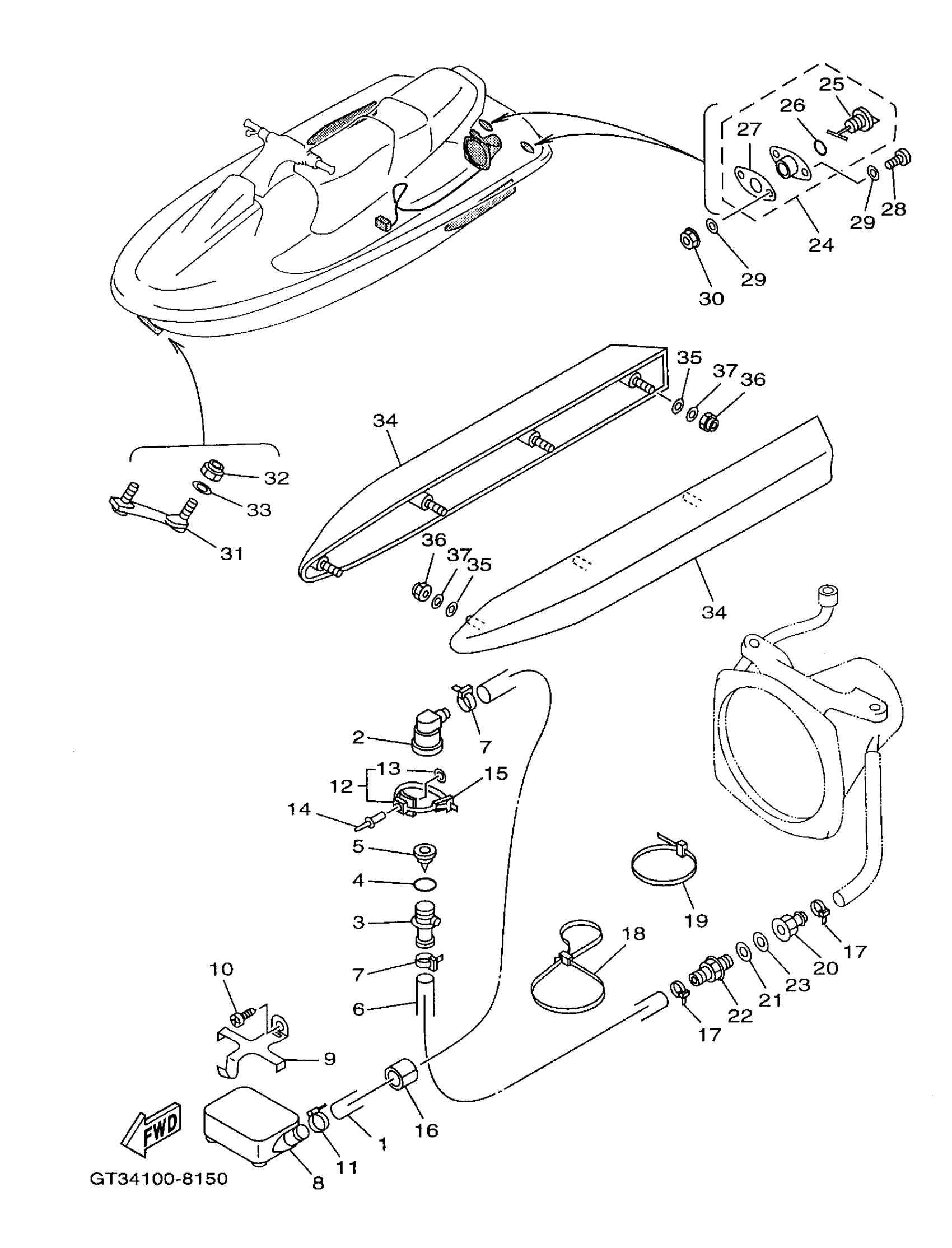

Find the part on the Hull Deck diagram for your 1998 Yamaha Waveventure 700 (WVT700W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Waveventure 700 (WVT700W) Hull Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE

90445-19M01-00

1
Out of stock

2

JOINT, HOSE 2

63M-51165-00-00

1
Out of stock

3

JOINT, HOSE

68N-5112T-00-00

1

$44.09

In stock

4

O-RING

93210-22ME5-00

1

$4.23

In stock

5

VALVE 1

63M-5316M-00-00

1

$25.49

In stock

6

HOSE

90445-19M01-00

1
Out of stock

7

CLAMP (6E5)

90465-13M11-00

1

$5.72

In stock

8

STRAINER, BILGE

GD0-U761D-00-00

1
Out of stock

9

BASE, STRAINER BLIGE

EW2-67618-00-00

1

$37.39

In stock

10

SCREW, TAPPING(61A)

97780-50612-00

1
Out of stock

11

BAND

90601-200U1-00

1

$2.89

In stock

12

CLAMP COMP (EU0)

90600-91736-00

1

$6.68

In stock

13

. WASHER, PLAIN

90201-05925-00

1
Out of stock

14

RIVET, BLIND

90267-489U7-00

1
Out of stock

15

BAND (EU0)

90601-20009-00

1

$6.46

In stock

16

PACKING, HOSE 2

GJ1-U7578-12-00

—

$1.31

In stock

17

BAND

90601-200U1-00

1

$2.89

In stock

18

NYLON CLIP 1(GD0)

90601-20016-00

—

$9.17

In stock

19

BAND

90601-200U4-00

1
Out of stock

20

CONNECTION, THRU-HULL 1/4

90604-80759-00

1

$18.99

In stock

21

GASKET

90430-13909-00

1
Out of stock

22

—

$16.48

In stock

23

GASKET

90430-13909-00

1
Out of stock

24

DRAIN PLUG ASSY

EU0-62280-00-00

1

$28.23

In stock

25

. PLUG, DRAIN

EU0-62282-00-00

1

$7.91

In stock

26

. O-RING

EU0-62283-00-00

1

$3.95

In stock

27

. PACKING DRAIN (EU0)

EU0-62285-01-00

1

$6.00

In stock

28

SCREW, PANHEAD (A93)

98580-05525-00

—

$1.54

In stock

29

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

30

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

31

BOWEYE 1

FN8-U1624-00-00

1
Out of stock

32

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

33

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

34

STABILIZER (BLACK)

GH3-U883M-30-00

1
Out of stock

35

PACKING,STABILIZER

GU2-U883U-00-00

1
Out of stock

36

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

37

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
