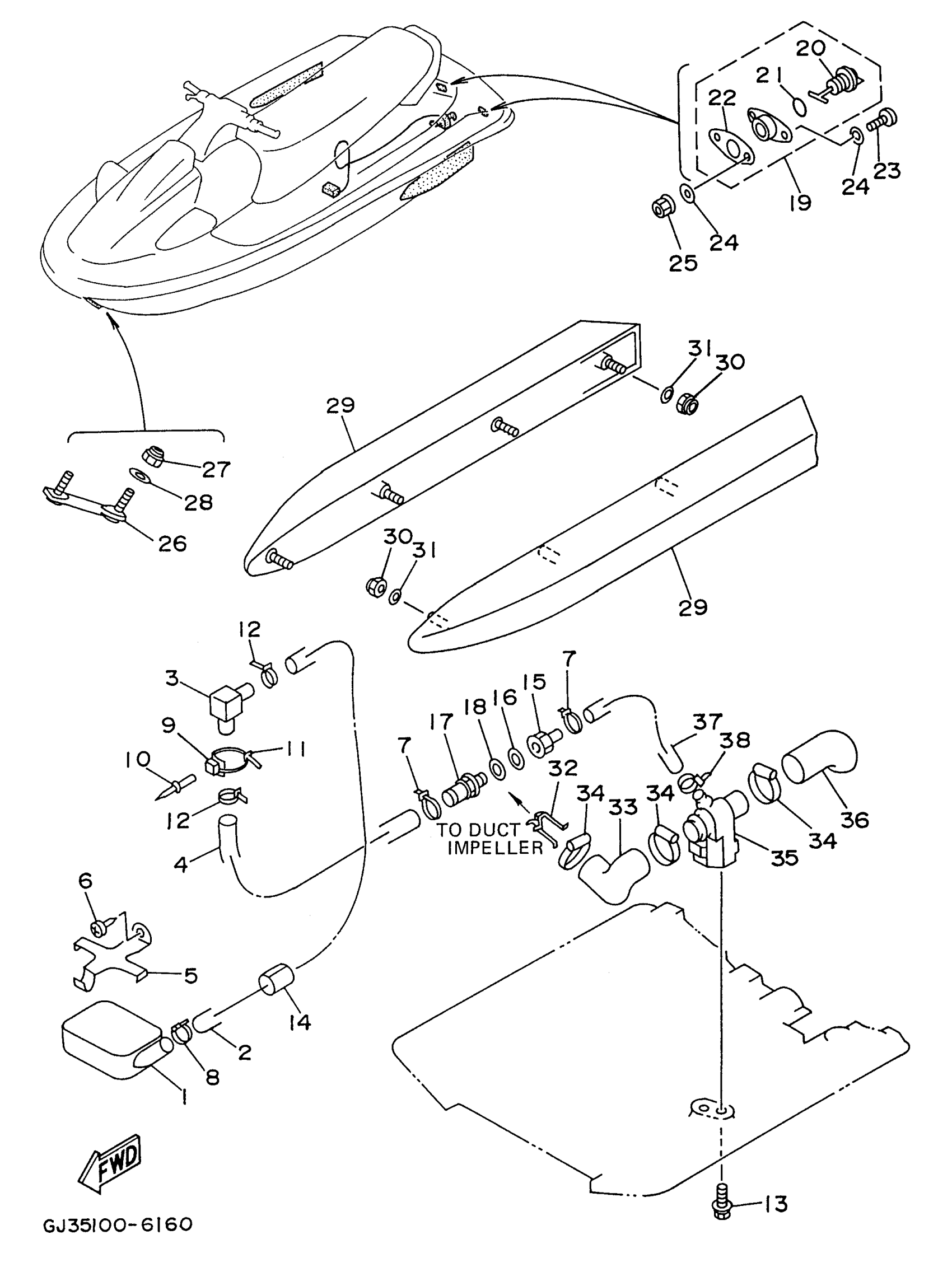

Yamaha WVT700U (WAVE VENTURE 700) 1996 HULL - DECK Diagram

#

Description
Price

1

STRAINER, BILGE

F4R-6761D-00-00

$31.33

2

HOSE

90445-14M03-00

Unavailable

2

HOSE

90445-14M03-00

Unavailable

3

JOINT, HOSE

6K8-51162-00-00

$11.18

4

HOSE

90445-149U3-00

Unavailable

4

HOSE

90445-14M03-00

Unavailable

5

BASE, STRAINER BLIGE

EW2-67618-00-00

$35.88

6

SCREW, TAPPING(61A)

97780-50612-00

$3.86

7

BAND

90601-200U1-00

$2.77

8

BAND

90601-200U1-00

$2.77

9

CLAMP COMP (EU0)

90600-91736-00

$6.22

10

RIVET, BLIND

90267-489U7-00

Unavailable

11

BAND (EU0)

90601-20009-00

$6.27

12

CLAMP (6E5)

90465-13M11-00

$5.34

13

BOLT, WITH WASHER

90119-06896-00

$5.23

14

PACKING, HOSE 2

GJ1-67578-10-00

$3.58

15

CONNECTION, THRU-HULL 1/4

90604-80759-00

$18.64

16

GASKET

90430-13909-00

Unavailable

17

CONNECTION, THRU-HULL 1/4

90604-80760-00

Unavailable

18

GASKET

90430-13909-00

Unavailable

19

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

20

. PLUG, DRAIN

EU0-62282-00-00

$7.59

21

. O-RING

EU0-62283-00-00

$3.79

22

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.82

23

SCREW, PAN HEAD(6A1)

97885-05020-00

$3.88

24

. WASHER, PLAIN

92990-05200-00

$4.71

25

NUT, FLANGE

95720-05300-00

$1.29

26

BOWEYE 1

FN8-U1624-00-00

Unavailable

27

. NUT, SELF-LOCKING

95720-08300-00

$3.41

28

WASHER, PLAIN

92990-08200-00

$2.52

29

STABILIZER (BLACK)

GH3-U883M-30-00

Unavailable

30

NUT, SELF-LOCKING

95720-06300-00

$1.72

31

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

32

SCREEN

6R8-51384-00-00

Unavailable

33

HOSE, PLASHER

6R8-51161-00-00

Unavailable

34

HOSE CLAMP ASSY

90450-32097-00

$13.99

35

BODY, VALVE

6K8-7610K-01-00

Unavailable

36

HOSE SUCTION

6K8-51141-00-00

Unavailable

37

HOSE

90445-14M11-00

Unavailable

38

CLAMP (6E5)

90465-13M11-00

$5.34
