1996 Yamaha Wave Venture 700 (WVT700U) Engine Hatch Diagram

← All diagrams

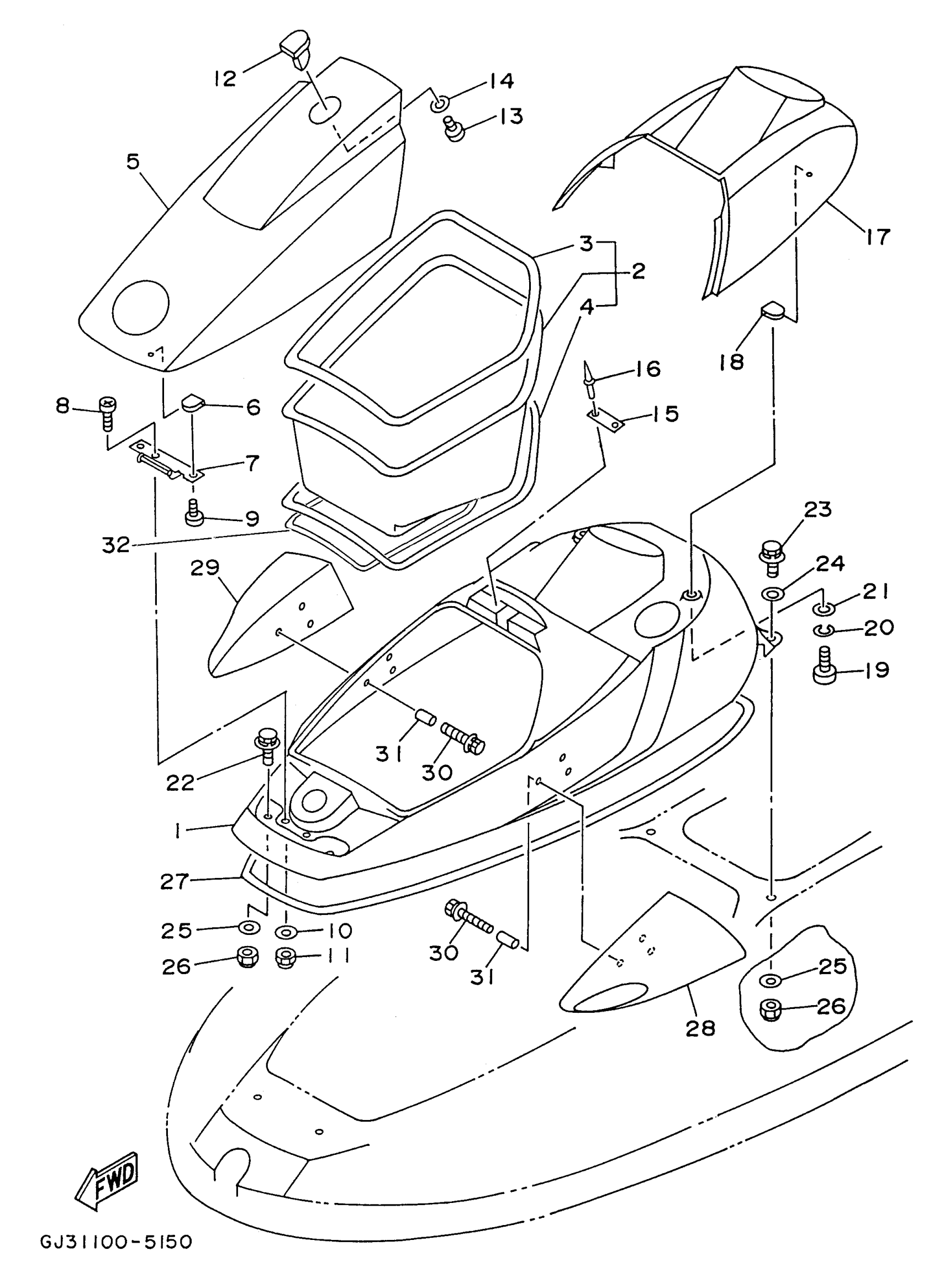

Find the part on the Engine Hatch diagram for your 1996 Yamaha Wave Venture 700 (WVT700U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Wave Venture 700 (WVT700U) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

GJ3-U516A-00-P0

1
Out of stock

2

BOW LOCKER ASSEMBLY

GJ3-U475A-00-00

1
Out of stock

3

PACKING 4

GJ3-U266C-31-00

1
Out of stock

4

PACKING 4

GJ3-U266C-31-00

1
Out of stock

5

LID, ENGINE HATCH

GJ3-6517B-00-P0

1
Out of stock

6

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

7

HINGE, LID

GJ3-6517D-01-00

1
Out of stock

8

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

9

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

12

LOCK, LID

GJ3-6517C-01-00

1
Out of stock

13

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

14

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

15

HOOK, LID LOCK

GJ3-6517F-00-00

1
Out of stock

16

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

17

COVER, ENGINE HATCH

GJ3-6516N-00-P0

1
Out of stock

18

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

19

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

BOLT, WITH WASHER

90119-089U2-00

1

$3.15

In stock

23

BOLT, WITH WASHER(GA7)

90119-08932-00

—

$28.11

In stock

24

WASHER, PLATE

90201-099U1-00

1

$2.46

In stock

25

WASHER (FJ0)

90201-08929-00

—
Out of stock

26

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

27

PACKING 1

GJ3-U2663-01-00

1
Out of stock

28

MIRROR (L.H)

GH1-6596B-40-00

1
Out of stock

29

MIRROR (R.H)

GH1-6596C-40-00

1
Out of stock

30

BOLT, HEX (MIRROR)

90119-06924-00

1
Out of stock

31

COLLAR

90387-06915-00

1
Out of stock

32

PACKING, FLOATATION

GJ3-U897F-01-00

1
Out of stock
