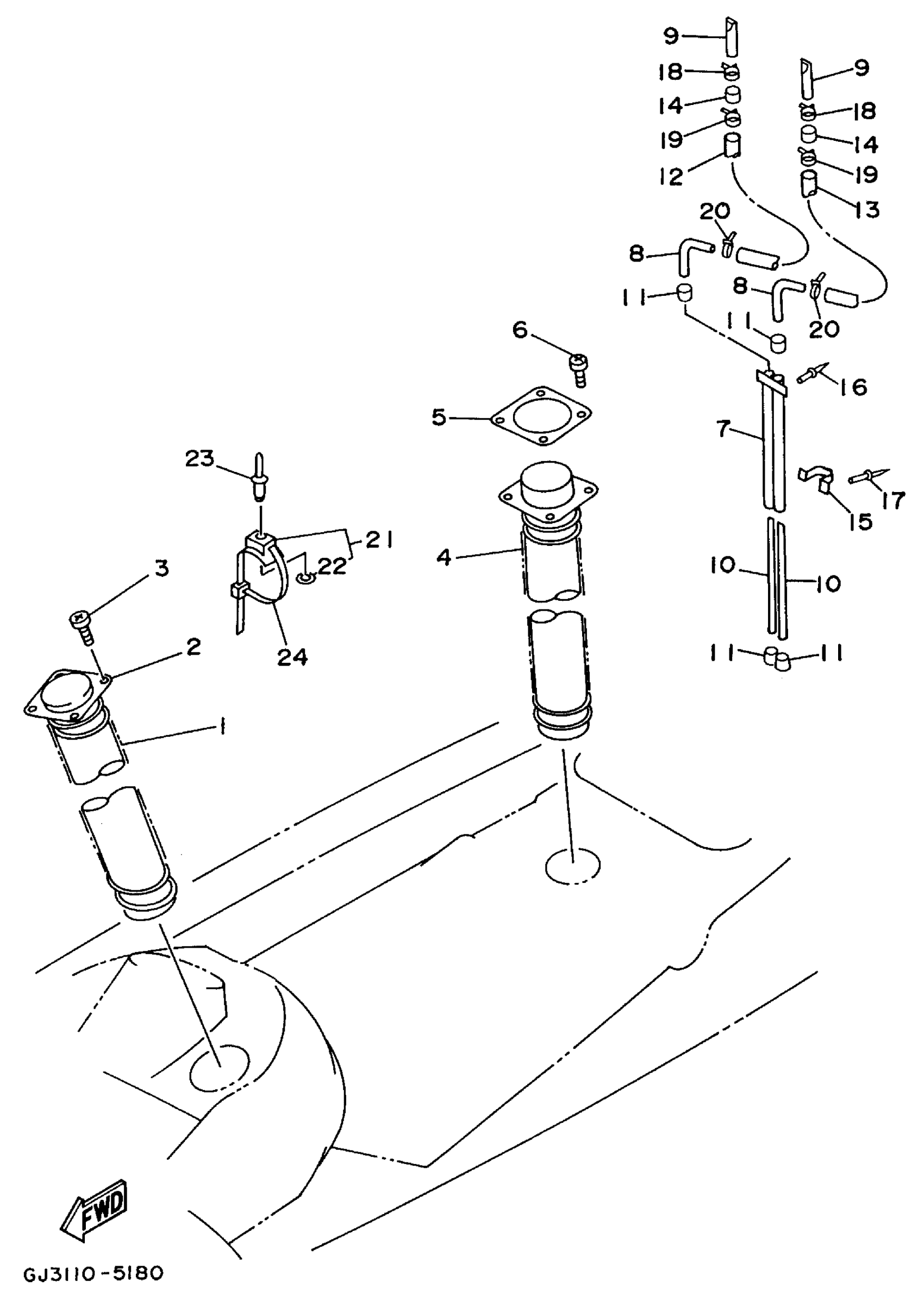

Find the part on the Ventilation diagram for your 1995 Yamaha Wave Venture (WVT700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Wave Venture (WVT700T) Ventilation Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, VENTILATOR 1

GJ3-6213F-00-00

1
Out of stock

2

BASE, AIR INTAKE

GJ3-62127-00-00

1
Out of stock

3

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

4

HOSE, VENTILATOR 2

GJ3-U213G-00-00

1
Out of stock

5

PLATE, HOSE 2

GJ3-6213J-00-00

1
Out of stock

6

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

7

PIPE, VENTILATION

FJ0-62149-00-00

1
Out of stock

8

ELBOW, VENTILATOR 11

FJ0-62156-00-00

1
Out of stock

9

PIPE, VENTILATION 1

EW2-62149-00-00

1

$7.38

In stock

10

ELBOW VENT 12

EU0-62156-32-00

1
Out of stock

11

CAP

EU0-62155-00-00

1
Out of stock

12

HOSE, AIR VENT

EU0-67856-50-00

1
Out of stock

13

HOSE, AIR VENT 3

GJ3-67856-10-00

1

$16.99

In stock

14

HOSE, AIR VENT 3

GJ3-67856-00-00

1
Out of stock

15

SUPPORT

FJ0-62151-00-00

1
Out of stock

16

RIVET, BLIND

90267-489U7-00

1
Out of stock

17

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock

18

CLAMP

90465-10098-00

1

$2.24

In stock

19

CLAMP

90465-10098-00

1

$2.24

In stock

20

CLAMP

90465-10098-00

1

$2.24

In stock

21

CLAMP COMP (EU0)

90600-91736-00

—

$6.68

In stock

22

. WASHER, PLAIN

90201-05925-00

1
Out of stock

23

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

24

BAND

90601-20008-00

1

$7.38

In stock
