1995 Yamaha Wave Venture (WVT700T) Hull Deck Diagram

← All diagrams

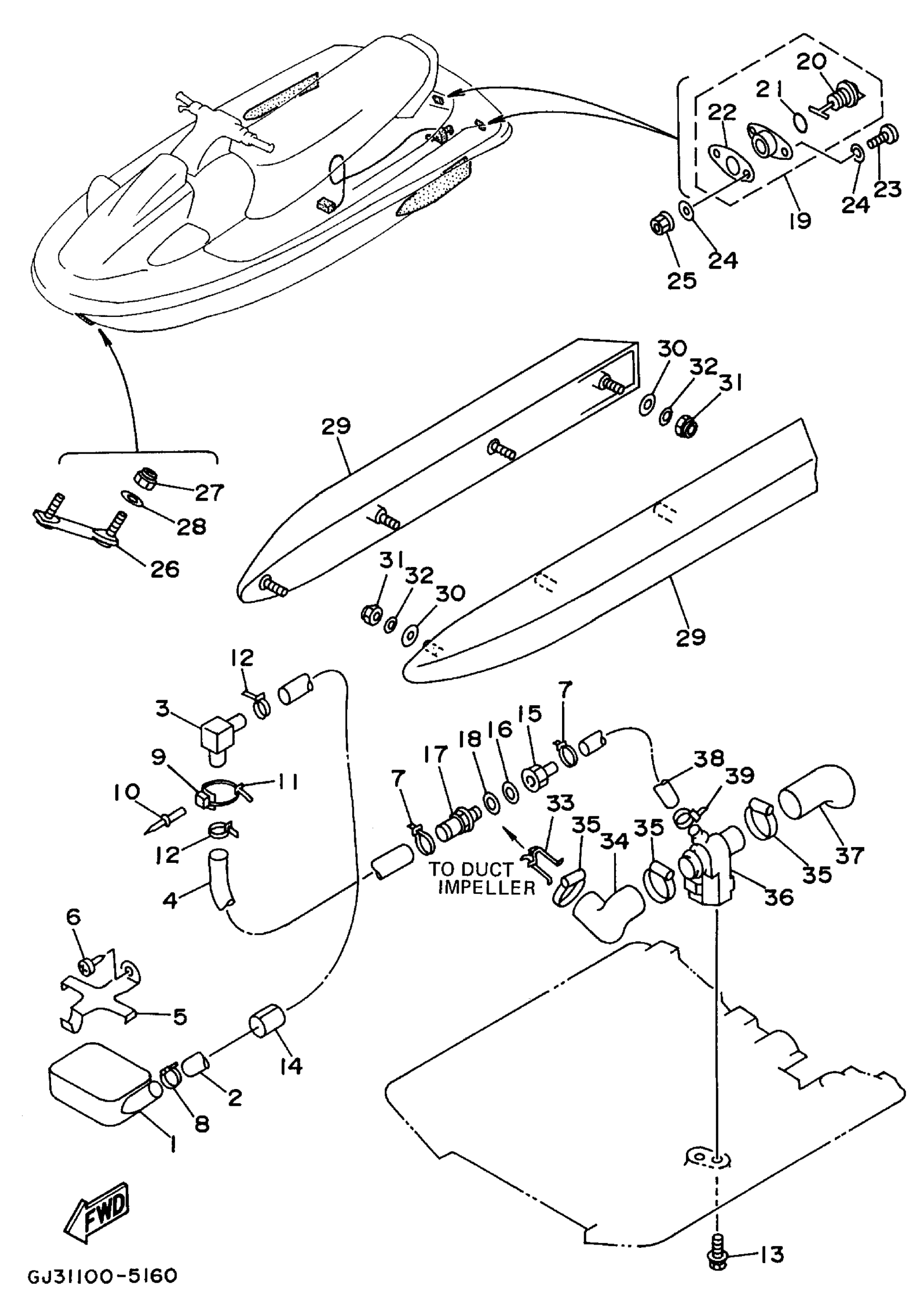

Find the part on the Hull Deck diagram for your 1995 Yamaha Wave Venture (WVT700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Wave Venture (WVT700T) Hull Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STRAINER, BILGE

F4R-6761D-00-00

1

$31.99

In stock

2

HOSE

90445-14M03-00

1
Out of stock

2

HOSE

90445-14M03-00

1
Out of stock

3

JOINT, HOSE

6K8-51162-00-00

1

$11.49

In stock

4

HOSE

90445-149U3-00

1
Out of stock

4

HOSE

90445-14M03-00

1
Out of stock

5

BASE, STRAINER BLIGE

EW2-67618-00-00

1

$37.39

In stock

6

SCREW, TAPPING(61A)

97780-50612-00

1
Out of stock

7

BAND

90601-200U1-00

1

$2.89

In stock

8

BAND

90601-200U1-00

1

$2.89

In stock

9

CLAMP COMP (EU0)

90600-91736-00

1

$6.68

In stock

10

RIVET, BLIND

90267-489U7-00

1
Out of stock

11

BAND (EU0)

90601-20009-00

1

$6.46

In stock

12

CLAMP (6E5)

90465-13M11-00

1

$5.72

In stock

13

BOLT, WITH WASHER

90119-06901-00

1
Out of stock

14

PACKING, HOSE 2

GJ1-67578-00-00

1
Out of stock

15

CONNECTION, THRU-HULL 1/4

90604-80759-00

1

$18.99

In stock

16

GASKET

90430-13909-00

1
Out of stock

17

CONNECTION, THRU-HULL 1/4

90604-80760-00

1
Out of stock

18

GASKET

90430-13909-00

1
Out of stock

19

DRAIN PLUG ASSY

EU0-62280-00-00

1

$28.23

In stock

20

. PLUG, DRAIN

EU0-62282-00-00

1

$7.91

In stock

21

. O-RING

EU0-62283-00-00

1

$3.95

In stock

22

. PACKING DRAIN (EU0)

EU0-62285-01-00

1

$6.00

In stock

23

SCREW, PAN HEAD(6A1)

97885-05020-00

1

$4.15

In stock

24

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

25

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

26

BOWEYE 1

FN8-U1624-00-00

1
Out of stock

27

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

28

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

29

STABILIZER (BLACK)

GH3-U883M-30-00

1
Out of stock

30

PACKING, STABILIZER

GJ3-U883U-00-00

1
Out of stock

31

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

SCREEN

6R8-51384-00-00

1
Out of stock

34

HOSE, PLASHER

6R8-51161-00-00

1
Out of stock

35

HOSE CLAMP ASSY

90450-32097-00

1

$13.99

In stock

36

BODY, VALVE

6K8-7610K-01-00

1
Out of stock

37

HOSE SUCTION

6K8-51141-00-00

1
Out of stock

38

HOSE

90445-14M11-00

1
Out of stock

39

CLAMP (6E5)

90465-13M11-00

1

$5.72

In stock
