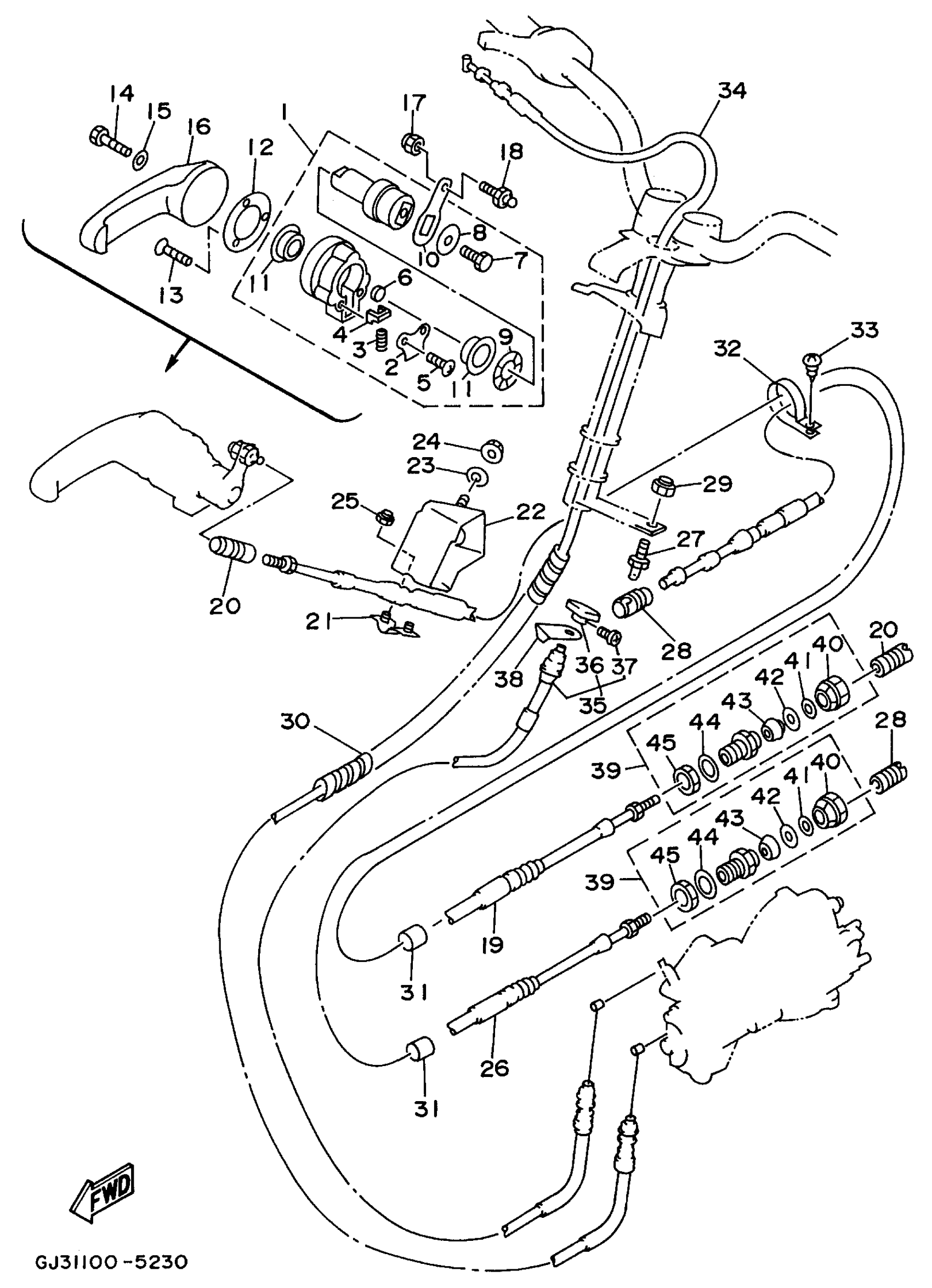

Yamaha WVT700T (WAVE VENTURE) 1995 CONTROL CABLE Diagram

#

Description
Price

1

LEVER, SUB-ASSY

GJ3-6134B-01-00

Unavailable

2

. PLATE

FJ0-61348-01-00

Unavailable

3

. SPRING

FJ0-61349-00-00

Unavailable

4

. DETENT ROLLER SET

FJ0-61351-00-00

$22.71

5

SCREW,PAN HEAD (646)

98580-05012-00

$5.52

6

. DETENT ROLLER

FJ0-61352-00-00

Unavailable

7

BOLT (FJ0)

97080-06018-00

Unavailable

8

. WASHER

FJ0-61353-00-00

$15.89

9

. WAVE WASHER

FJ0-61354-00-00

$11.99

10

ARM

GJ3-6134N-01-00

Unavailable

11

. BEARING

FJ0-61347-00-00

$13.99

12

WASHER

FJ0-61344-00-00

$25.74

13

YBS53-525 SCREW,FLAT HEAD

98780-05525-00

$1.65

14

BOLT(J52)

97080-06035-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

16

LEVER,1

GJ3-6134C-01-00

Unavailable

17

NUT, SELF-LOCKING

95720-06300-00

$1.82

18

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

19

CABLE, REVERSE

GJ3-U149C-00-00

$219.68

20

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

21

STOPPER, CABLE

GJ3-61468-01-00

$11.54

22

BRACKET, CABLE STOPPER 2

GJ3-6146D-00-00

Unavailable

23

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

24

NUT, FLANGE

95780-06300-00

$7.14

25

NUT, SELF-LOCKING

95720-06300-00

$1.82

26

CABLE, STEERING

GJ3-U1481-00-00

Unavailable

27

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

28

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

29

NUT, FLANGE

95780-06300-00

$7.14

30

SPI-RAP 25

90699-38U03-00

Unavailable

31

PACKING, HOSE 2

GJ1-67578-00-00

Unavailable

32

CLIP, NYLON 21

90600-921U1-00

Unavailable

33

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

34

CABLE, THROTTLE

GJ1-U7252-00-00

Unavailable

35

CABLE, CHOKE

GJ3-U7242-02-00

Unavailable

36

KNOB, CHOKE

GP7-U724C-00-00

Unavailable

37

SCREW, KNOB

GP7-U724D-00-00

Unavailable

38

PLATE, CHOKE

GJ3-6824D-00-00

$71.20

39

CONNECTOR, CABLE

EU0-67267-00-00

$35.71

40

. CAP

EU0-62694-00-00

$10.74

41

. WASHER 30

EU0-61446-00-00

$4.55

42

. STOPPER

EU0-61486-00-00

$6.82

43

. SEAL, PIPE 30

EU0-61435-00-00

$10.99

44

. PACKING (C)

EU0-61438-00-00

$8.32

45

. NUT, DRAIN 1

EU0-62241-30-00

$10.49
