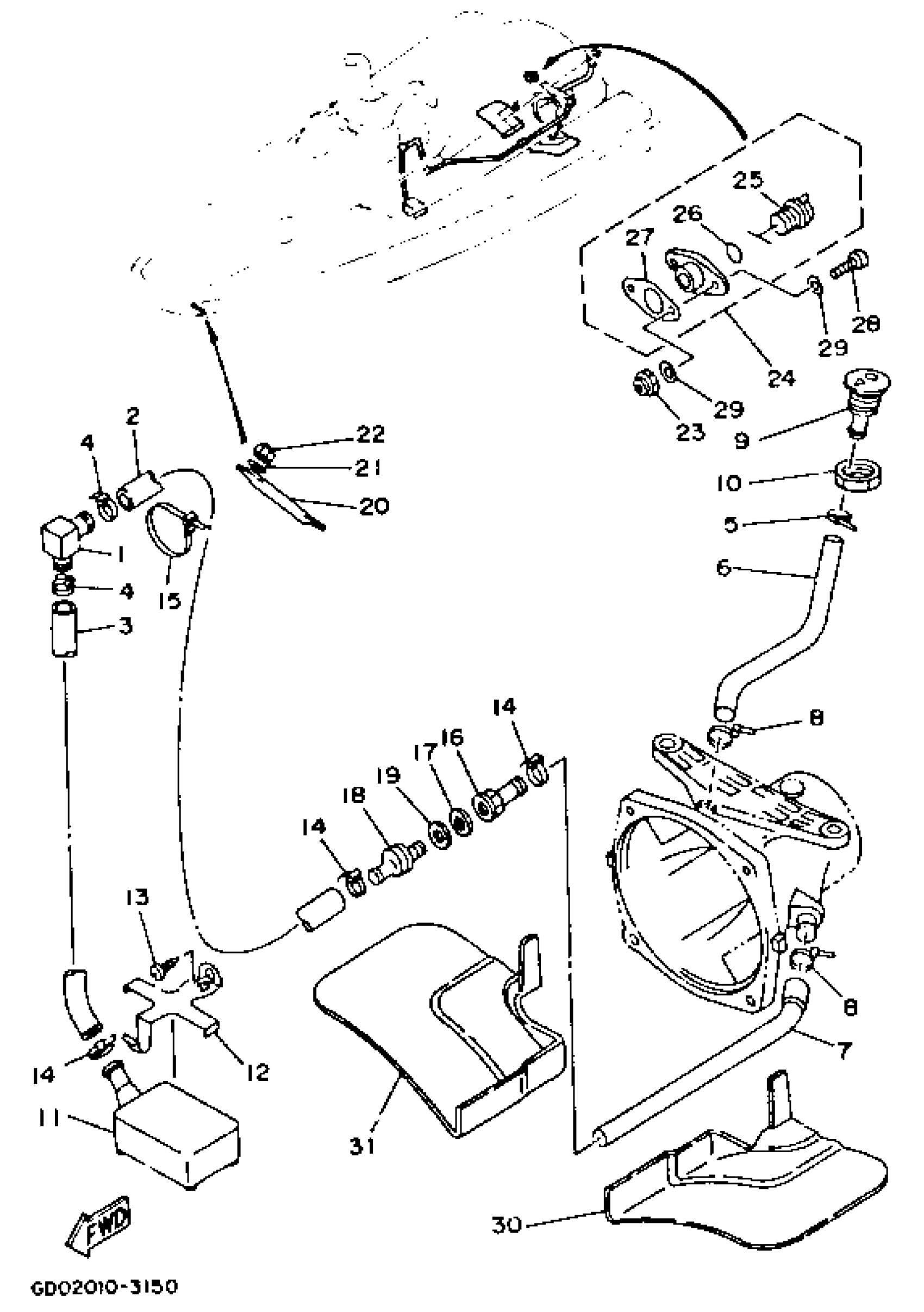

Yamaha WRB700R (WAVE RUNNER PRO VXR) 1993 HULL - DECK Diagram

#

Description
Price

1

JOINT, HOSE

61X-51162-00-00

$18.92

2

HOSE

90445-19M03-00

Unavailable

3

HOSE

90445-19M01-00

Unavailable

4

CLAMP

90465-10098-00

$1.68

5

CLAMP

90465-10098-00

$1.68

6

HOSE

90445-16M00-00

Unavailable

7

PIPE

61L-51385-00-00

$17.41

8

CLAMP

90465-10098-00

$1.68

9

SPOUT

FN8-6269B-00-00

$22.49

10

NUT

EU0-61652-00-00

$11.48

11

STRAINER, BILGE

GD0-6761D-00-00

$58.99

12

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

13

SCREW, PANHEAD TAPPING (682)

97780-50514-00

$3.57

14

CLAMP

90465-10098-00

$1.68

15

BAND (EU0)

90601-20009-00

$6.36

16

CONNECTION, THRU-HULL 1/4

90604-80759-00

$18.92

17

GASKET

90430-13909-00

Unavailable

18

CONNECTION, THROUGH HALL (GD0)

90604-80775-00

Unavailable

19

GASKET

90430-13909-00

Unavailable

20

BOWEYE 1

FN8-U1624-00-00

Unavailable

21

WASHER, PLAIN

92990-08200-00

$2.36

22

. NUT, SELF-LOCKING

95720-08300-00

$3.33

23

NUT, FLANGE

95720-05300-00

$1.28

24

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

25

. PLUG, DRAIN

EU0-62282-00-00

$7.40

26

. O-RING

EU0-62283-00-00

$3.70

27

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

28

SCREW, PAN HEAD

98580-05020-00

$1.43

29

. WASHER, PLAIN

92990-05200-00

$4.29

30

REINF. HULL LH

(GD0-69111-10-00)

Unavailable

31

REINF. HULL RH

(GD0-69111-20-00)

Unavailable
