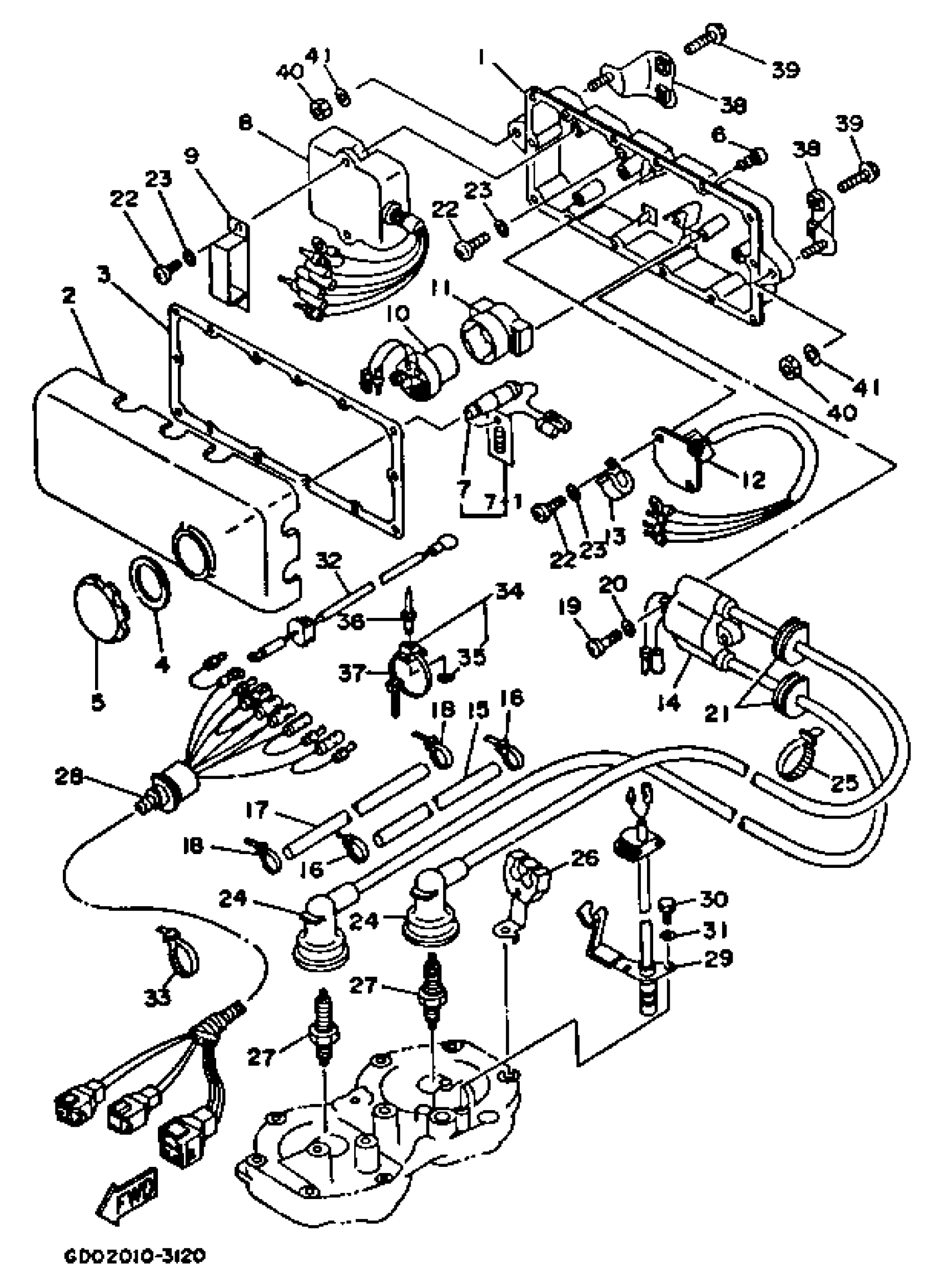

Yamaha WRB700R (WAVE RUNNER PRO VXR) 1993 ELECTRICAL 1 Diagram

#

Description
Price

1

FUSE (10A)

1E6-82151-00-00

$5.80

1

HOUSING

6M6-8552A-01-8P

$135.81

2

COVER, CASE

6M6-8552E-01-00

$77.60

3

GASKET, TERMINAL

6M6-81921-00-00

$20.13

4

GASKET

6M6-81844-00-00

$10.99

5

CAP

6M6-8132W-00-00

$14.16

6

SCREW, TAPPING(65J)

97780-60625-00

$2.64

7

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

8

C.D.I. UNIT ASSY

6M6-85540-02-00

Unavailable

9

CLAMP

90464-06M29-00

$6.27

10

STARTER RELAY ASSY

6G1-81941-10-00

$68.39

11

HOLDER, RELAY

6M6-81952-01-00

Unavailable

12

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

13

CLAMP

90465-08028-00

$4.31

14

IGNITION COIL ASSEMBLY

61L-85570-00-00

Unavailable

15

TUBE, CORD 2

6R8-82352-00-00

Unavailable

16

CLAMP

90465-10098-00

$2.24

17

TUBE, CORD 2

6R8-82352-00-00

Unavailable

18

CLAMP

90465-10098-00

$2.24

19

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.71

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

GROMMET

90480-06M43-00

$5.69

22

SCREW, PAN

98507-06014-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

PLUG CAP ASSY

63M-82370-00-00

$71.35

25

CLAMP

90465-10098-00

$2.24

26

CLAMP, CORD

6R7-82361-00-00

Unavailable

27

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

28

EXTENSION, WIRE LEAD

61X-82553-00-00

Unavailable

29

THERMO SWITCH ASSY

6R7-82560-00-00

Unavailable

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

31

WASHER, SPRING

92995-06100-00

$3.04

32

WIRE, LEAD

62E-82117-20-00

$88.04

33

CLAMP

90465-10098-00

$2.24

34

CLAMP COMP (EU0)

90600-91736-00

Unavailable

35

. WASHER, PLAIN

90201-05925-00

Unavailable

36

RIVET, BLIND

90267-489UE-00

Unavailable

37

BAND (EU0)

90601-20009-00

$6.27

38

BRACKET, ELECTRIC BOX

EW2-68156-00-00

$18.99

39

BOLT,FLANGE (EW2)

90105-06903-00

Unavailable

40

. NUT

95380-08700-00

$3.14

41

WASHER, PLAIN

92990-08200-00

$2.52
