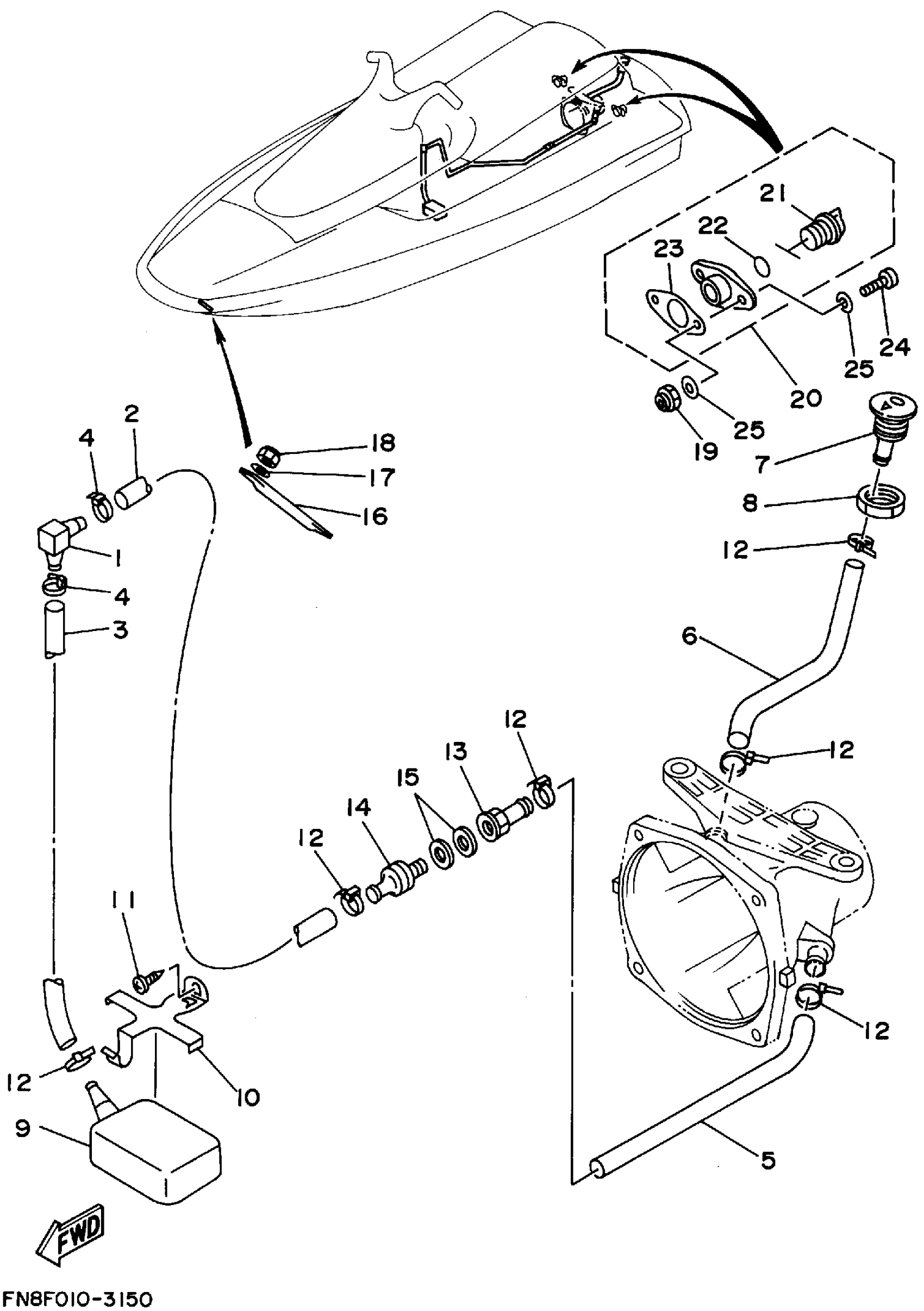

Yamaha WRB650T (WAVE RUNNER VXR) FN8M 1995 HULL - DECK Diagram

#

Description
Price

1

JOINT, HOSE

6K8-51162-00-00

$11.35

2

HOSE

90445-14M03-00

Unavailable

3

HOSE (L380)

90445-14M25-00

$18.17

4

CLAMP

90465-10098-00

$1.68

5

HOSE (L380)

90445-14M25-00

$18.17

6

PIPE 1

61X-51673-00-00

Unavailable

7

SPOUT

FN8-6269B-00-00

$22.49

8

NUT

EU0-61652-00-00

$11.48

9

STRAINER, BILGE

F4R-6761D-00-00

$31.80

10

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

11

SCREW, PANHEAD TAPPING (682)

97780-50514-00

$3.57

12

CLAMP

90465-10098-00

$1.68

13

CONNECTION, THRU-HULL 1/4

90604-80759-00

$18.92

14

CONNECTION, THRU-HULL 1/4

90604-80760-00

Unavailable

15

GASKET

90430-13909-00

Unavailable

16

BOWEYE 1

FN8-U1624-00-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

$2.36

18

. NUT, SELF-LOCKING

95720-08300-00

$3.33

19

NUT, FLANGE

95720-05300-00

$1.28

20

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

21

. PLUG, DRAIN

EU0-62282-00-00

$7.40

22

. O-RING

EU0-62283-00-00

$3.70

23

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

24

SCREW, PAN HEAD

98580-05020-00

$1.43

25

. WASHER, PLAIN

92990-05200-00

$4.29
