1995 Yamaha Wave Runner VXR (WRB650T) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1995 Yamaha Wave Runner VXR (WRB650T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

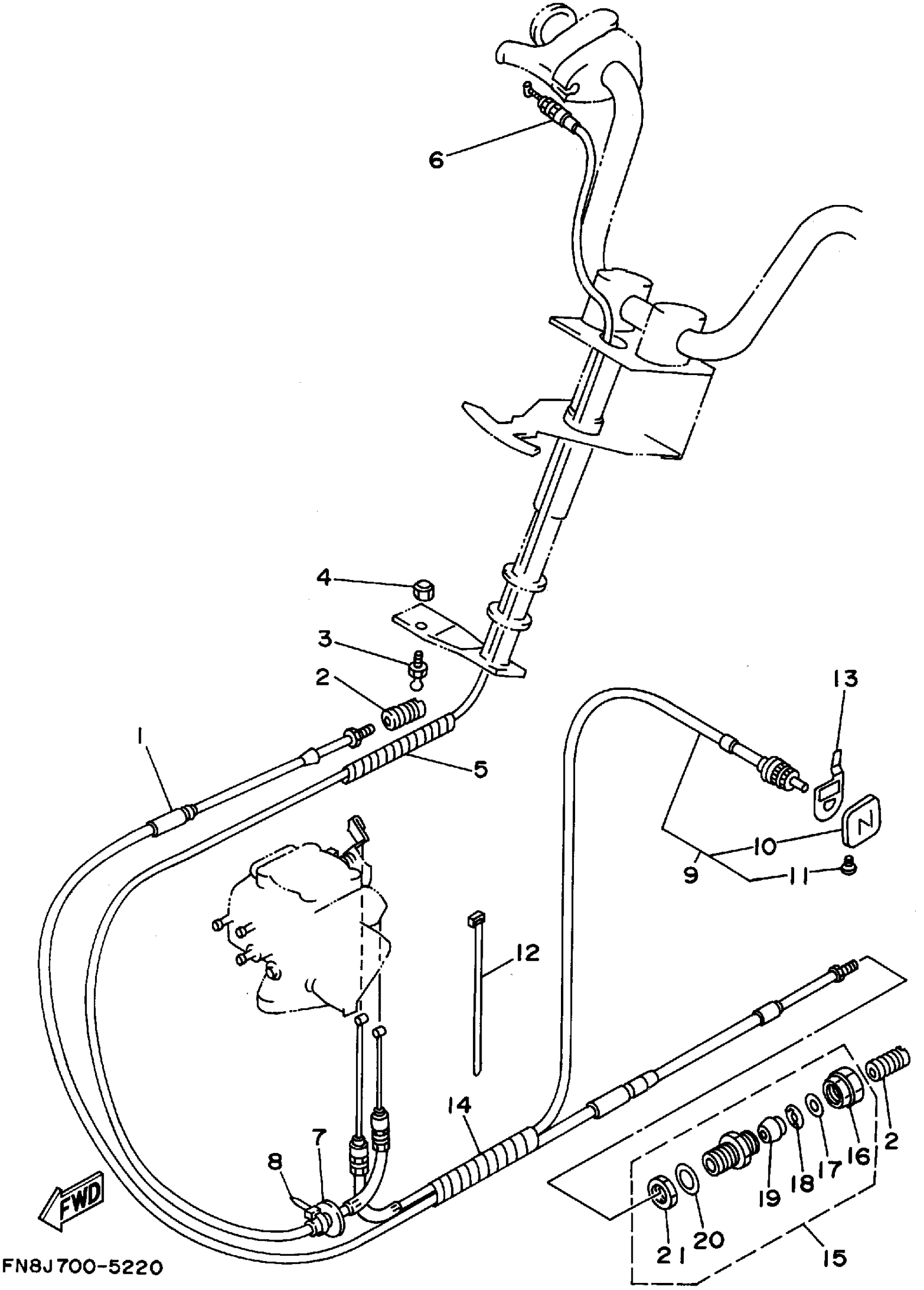

1995 Yamaha Wave Runner VXR (WRB650T) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

FN8-U1481-00-00

1
Out of stock

2

SHAFT,JOINT BALL

EU0-61461-30-00

1

$45.13

In stock

3

SHAFT, JOINT BALL

EU0-U1461-10-00

1

$29.91

In stock

4

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

5

SPIRAL TUBE

90699-U1100-00

1
Out of stock

6

CABLE, THROTTLE 1

EU0-U7252-01-00

1

$131.70

In stock

7

GROMMET

90480-10907-00

1
Out of stock

8

CLAMP

90465-10098-00

1

$2.24

In stock

9

CABLE, CHOKE

FN8-U7242-00-00

1
Out of stock

10

KNOB, CHOKE

GP7-U724C-00-00

1
Out of stock

11

SCREW, KNOB

GP7-U724D-00-00

1
Out of stock

12

BAND

90601-200U1-00

1

$2.89

In stock

13

PLATE, CHOKE

FN8-67243-00-00

1
Out of stock

14

SPIRAL TUBE 11

90699-36U02-00

1
Out of stock

15

CONNECTOR, CABLE

EU0-67267-00-00

1

$43.19

In stock

16

. CAP

EU0-62694-00-00

1

$14.49

In stock

17

. WASHER 30

EU0-61446-00-00

1

$4.62

In stock

18

. STOPPER

EU0-61486-00-00

1

$5.93

In stock

19

. SEAL, PIPE 30

EU0-61435-00-00

1

$8.70

In stock

20

. PACKING (C)

EU0-61438-00-00

1

$8.45

In stock

21

. NUT, DRAIN 1

EU0-62241-30-00

1

$10.49

In stock
