1994 Yamaha Wave Runner VXR (WRB650S) Hull - Deck Diagram

← All diagrams

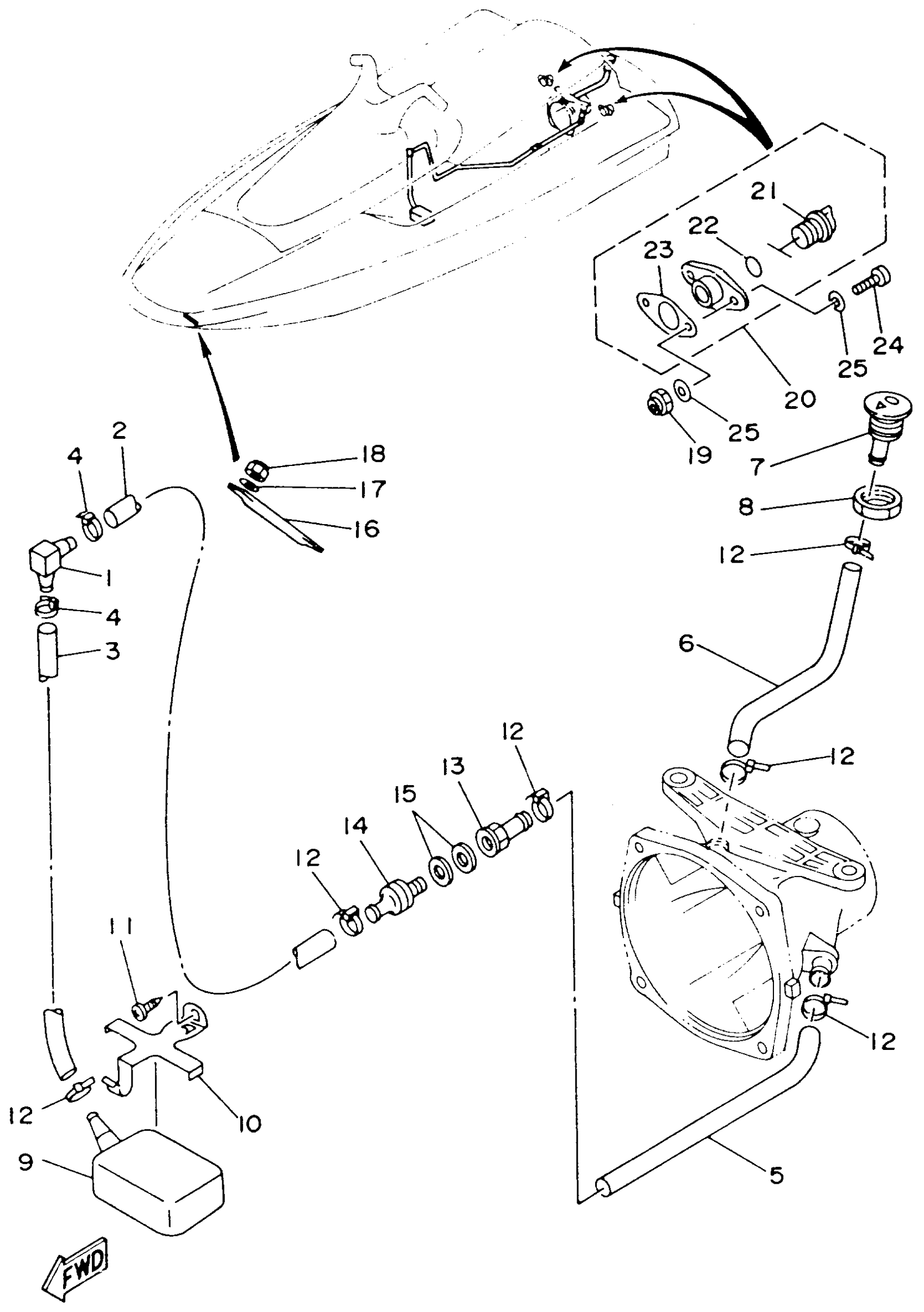

Find the part on the Hull - Deck diagram for your 1994 Yamaha Wave Runner VXR (WRB650S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Wave Runner VXR (WRB650S) Hull - Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, HOSE

6K8-51162-00-00

1

$11.49

In stock

2

HOSE

90445-14M03-00

1
Out of stock

3

HOSE (L380)

90445-14M25-00

1

$19.46

In stock

4

CLAMP

90465-10098-00

1

$2.24

In stock

5

HOSE (L380)

90445-14M25-00

1

$19.46

In stock

6

PIPE 1

61X-51673-00-00

1
Out of stock

7

SPOUT

FN8-6269B-00-00

1

$17.81

In stock

8

NUT

EU0-61652-00-00

1

$12.27

In stock

9

STRAINER, BILGE

F4R-6761D-00-00

1

$31.99

In stock

10

BASE, STRAINER BLIGE

EW2-67618-00-00

1

$37.39

In stock

11

1

$4.15

In stock

12

CLAMP

90465-10098-00

1

$2.24

In stock

13

CONNECTION, THRU-HULL 1/4

90604-80759-00

1

$18.99

In stock

14

CONNECTION, THRU-HULL 1/4

90604-80760-00

1
Out of stock

15

GASKET

90430-13909-00

1
Out of stock

16

BOWEYE 1

FN8-U1624-00-00

1
Out of stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

19

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

20

DRAIN PLUG ASSY

EU0-62280-00-00

1

$28.23

In stock

21

. PLUG, DRAIN

EU0-62282-00-00

1

$7.91

In stock

22

. O-RING

EU0-62283-00-00

1

$3.95

In stock

23

. PACKING DRAIN (EU0)

EU0-62285-01-00

1

$6.00

In stock

24

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

25

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock
