1994 Yamaha Wave Runner VXR (WRB650S) Engine Hatch Diagram

← All diagrams

Find the part on the Engine Hatch diagram for your 1994 Yamaha Wave Runner VXR (WRB650S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

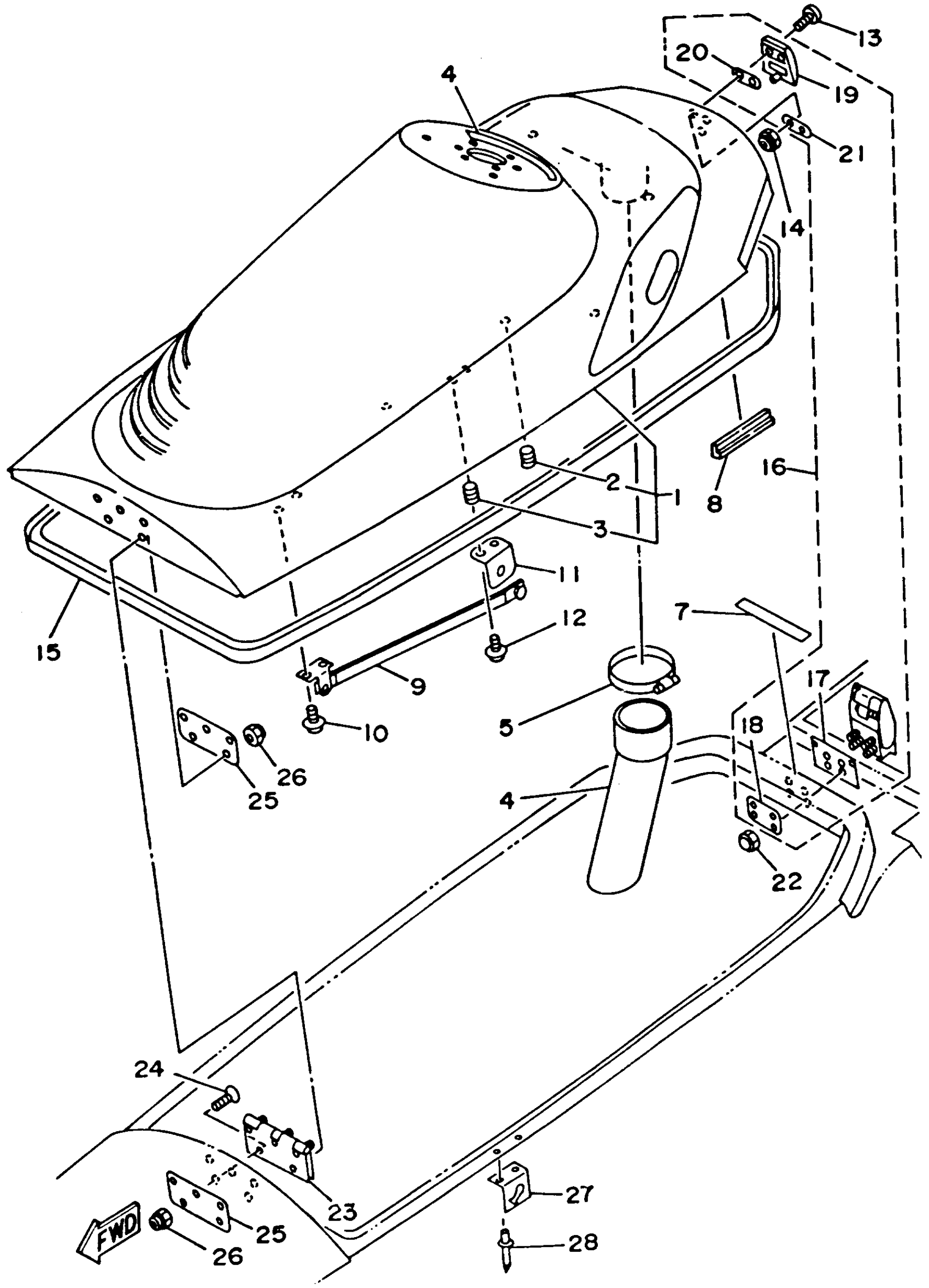

1994 Yamaha Wave Runner VXR (WRB650S) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

FN8-U516D-00-P1

1
Out of stock

2

. NUT

90179-08927-00

1
Out of stock

3

NUT

90179-069U4-00

1
Out of stock

4

TAPE

FN8-65578-00-00

1
Out of stock

5

HOSE, VENTILATOR 1

EW2-62136-01-00

1
Out of stock

6

BAND, HOSE 68

90601-168U7-00

1
Out of stock

7

TRIM

FN8-U5162-00-00

1
Out of stock

8

TRIM 1

FN8-6516C-00-00

1
Out of stock

9

SUPPORT, HATCH

FN8-62891-01-00

1
Out of stock

10

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

11

FIX, PLATE

FN8-62892-00-00

1
Out of stock

12

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

13

SCREW

90149-05970-00

1
Out of stock

14

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

15

PACKING

FN8-U2664-00-00

1
Out of stock

16

HATCH LOCK ASSY

FN8-62840-01-00

1
Out of stock

17

. PACKING, HATCH LOCK

EW2-62845-00-00

1

$6.46

In stock

18

. PLATE, HATCH LOCK

EW2-62846-00-00

1

$5.54

In stock

19

. HOOK, HATCH LOCK

FN8-62843-00-00

1
Out of stock

20

. PACKING, HOOK

EW2-62847-00-00

1

$4.62

In stock

21

. PLATE, HOOK

EW2-62848-00-00

1

$4.62

In stock

22

.. NUT

95380-05800-00

1

$2.77

In stock

23

HINGE

90600-70069-00

1

$109.99

In stock

24

SCREW, FLAT HEAD

98780-05020-00

1

$2.22

In stock

25

PLATE

FN8-U5193-00-00

1
Out of stock

26

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

27

BRACKET, HATCH SUPPORT

FN8-62884-00-00

1
Out of stock

28

RIVET, BLIND

90267-48940-00

1

$10.99

In stock
