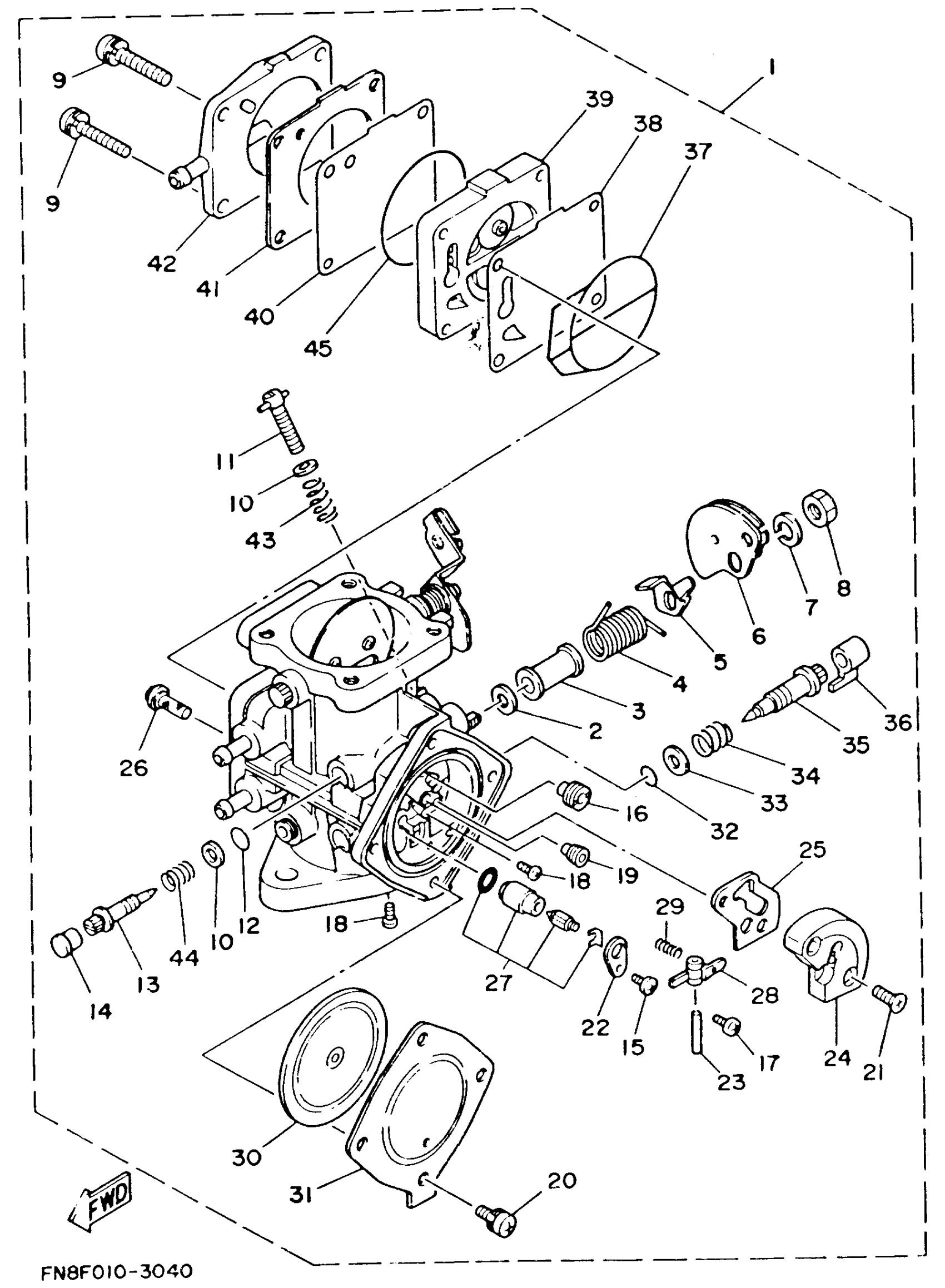

Yamaha WRB650S (WAVE RUNNER VXR) 1994 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASY 1

61L-14301-02-00

Unavailable

2

. WASHER

6R7-14596-00-00

Unavailable

3

. COLLAR

6K8-14534-10-00

$19.68

4

. SPRING

6K8-14556-10-00

Unavailable

5

. BRACKET, THROTTLE 1

6K8-14926-10-00

$19.68

6

. THROTTLE SHAFT ASSEMBLY

6K8-14930-00-00

Unavailable

7

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

8

. NUT

95380-08700-00

$3.05

9

SCREW, WITH WASHER(61B)

97985-05330-00

$2.80

10

WASHER,NEEDLE

812-14235-00-00

$2.44

11

SCREW,ADJUST

6M6-14521-01-00

Unavailable

12

. O-RING

6K8-14562-00-00

$1.88

13

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.49

14

. CAP, CARBURETOR

6K8-14471-00-00

Unavailable

15

. SCREW

6M6-14503-00-00

$5.55

16

JET, MAIN (#125)

3G2-14231-25-00

Unavailable

17

. SCREW

6K8-14503-02-00

Unavailable

18

. SCREW

6K8-14521-10-00

$34.49

19

. JET, MAIN (#120)

830-14231-24-00

Unavailable

20

. SCREW

6K8-14591-10-00

$4.57

21

SCREW, STOP

6K8-14523-12-00

Unavailable

22

. PLATE

6K8-14527-11-00

$11.35

23

. PIN, FLOAT

6K8-14579-00-00

Unavailable

24

. BODY 1

6R7-24412-01-00

$23.36

25

. GASKET

6K8-14536-11-00

$8.14

26

. STRAINER

6R7-14569-00-00

$11.48

27

NEEDLE

61X-14916-16-00

$22.90

28

. ARM, FLOAT

6K8-14547-01-00

$8.26

29

. SPRING

6R7-14253-00-00

$2.49

30

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

31

. BODY, PUMP 1

6R7-14542-00-00

$56.05

32

O-RING

583-14561-00-00

Unavailable

33

. WASHER

6K8-14537-00-00

$3.18

34

. SPRING

6K8-14589-00-00

$3.70

35

. SCREW, PILOT

6K8-14923-10-00

Unavailable

36

. CAP, CARBURETOR

6K8-14481-10-00

Unavailable

37

. O-RING

6K8-14564-00-00

$8.51

38

. DIAPHRAGM

6K8-24411-20-00

$29.63

39

BODY 2

6M6-24413-02-00

$45.81

40

. VALVE, CHECK

6K8-24421-10-00

$24.44

41

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$10.36

42

. COVER

6K8-24452-10-00

Unavailable

43

. SPRING, ADJUST SCREW

6K8-14531-00-00

Unavailable

44

. SPRING, ADJUST SCREW

6K8-14533-00-00

Unavailable

45

. O-RING

6K8-14563-00-00

Unavailable
