1993 Yamaha Wave Runner VXR (WRB650R) Electrical 2 Diagram

← All diagrams

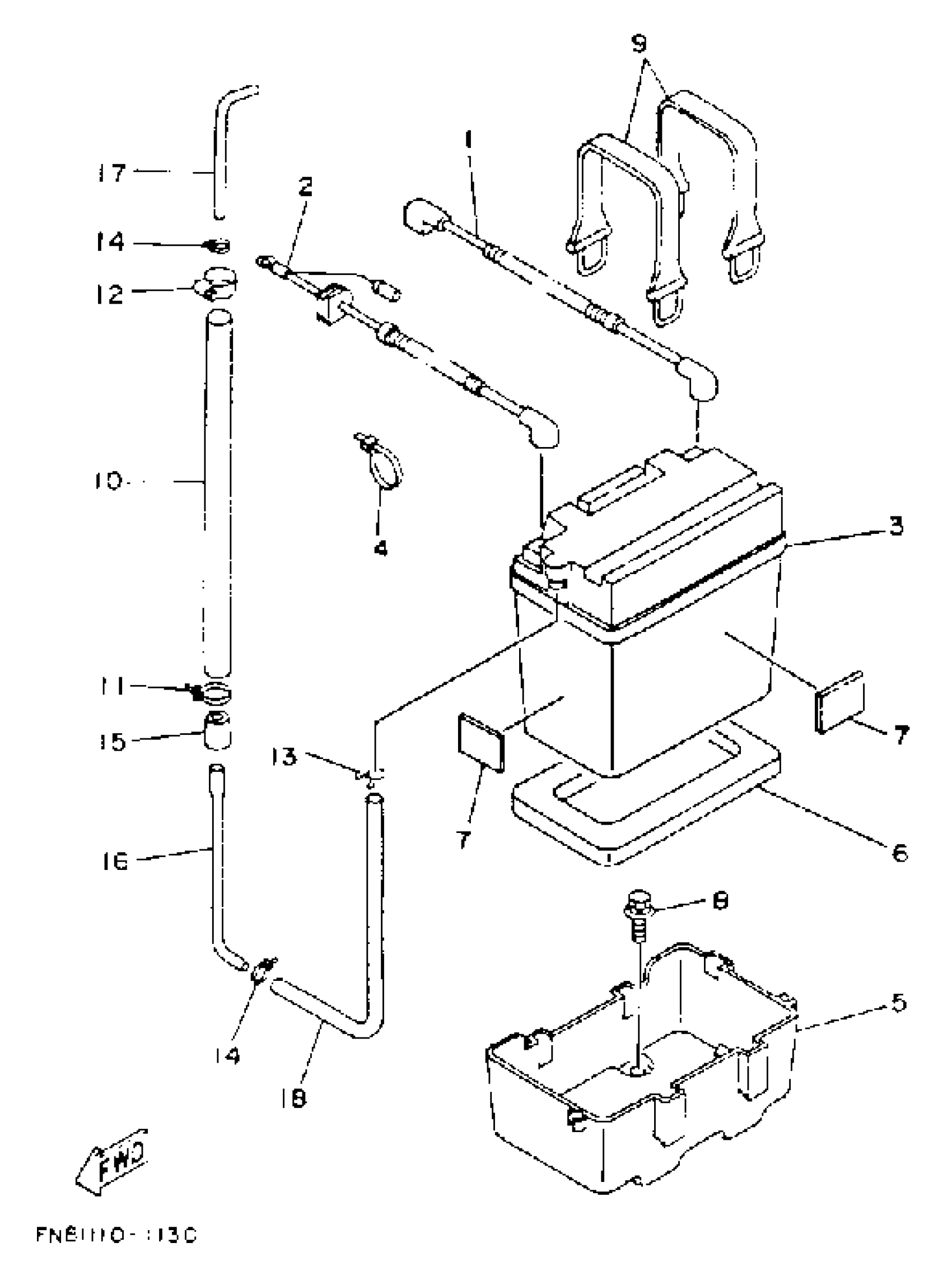

Find the part on the Electrical 2 diagram for your 1993 Yamaha Wave Runner VXR (WRB650R), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha Wave Runner VXR (WRB650R) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE, LEAD

61L-82117-00-00

1
Out of stock

2

WIRE, LEAD

61L-82117-10-00

1
Out of stock

3

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

1
Out of stock

4

BAND (EU0)

90601-20009-00

1
Out of stock

5

CASE, BATTERY

EW2-68211-00-00

1
Out of stock

6

PAD, BATTERY

F1S-U8221-00-00

1
Out of stock

7

PAD, BATTERY 2

EU0-68221-30-00

1
Out of stock

8

BOLT WITH WASHER (EW2)

90119-06920-00

1
Out of stock

9

BAND,BATTERY

EU0-68218-04-00

1
Out of stock

10

HOSE 1

90669-03003-00

1
Out of stock

11

BAND

90601-200U1-00

1
Out of stock

12

HOSE CLAMP ASSY

90450-32097-00

1
Out of stock

13

CLIP

90467-08M10-00

1
Out of stock

14

CLAMP

90465-10098-00

1
Out of stock

15

CAP

EU0-62155-00-00

1
Out of stock

16

ELBOW VENT 12

EU0-62156-32-00

1
Out of stock

17

ELBOW, VENTILATER 14

FN8-62156-50-00

1
Out of stock

18

HOSE, AIR VENT 5

FJ0-67856-40-00

1
Out of stock
