1997 Yamaha Wave Runner Iii (WRA700V) Hull - Deck 2 Diagram

← All diagrams

Find the part on the Hull - Deck 2 diagram for your 1997 Yamaha Wave Runner Iii (WRA700V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

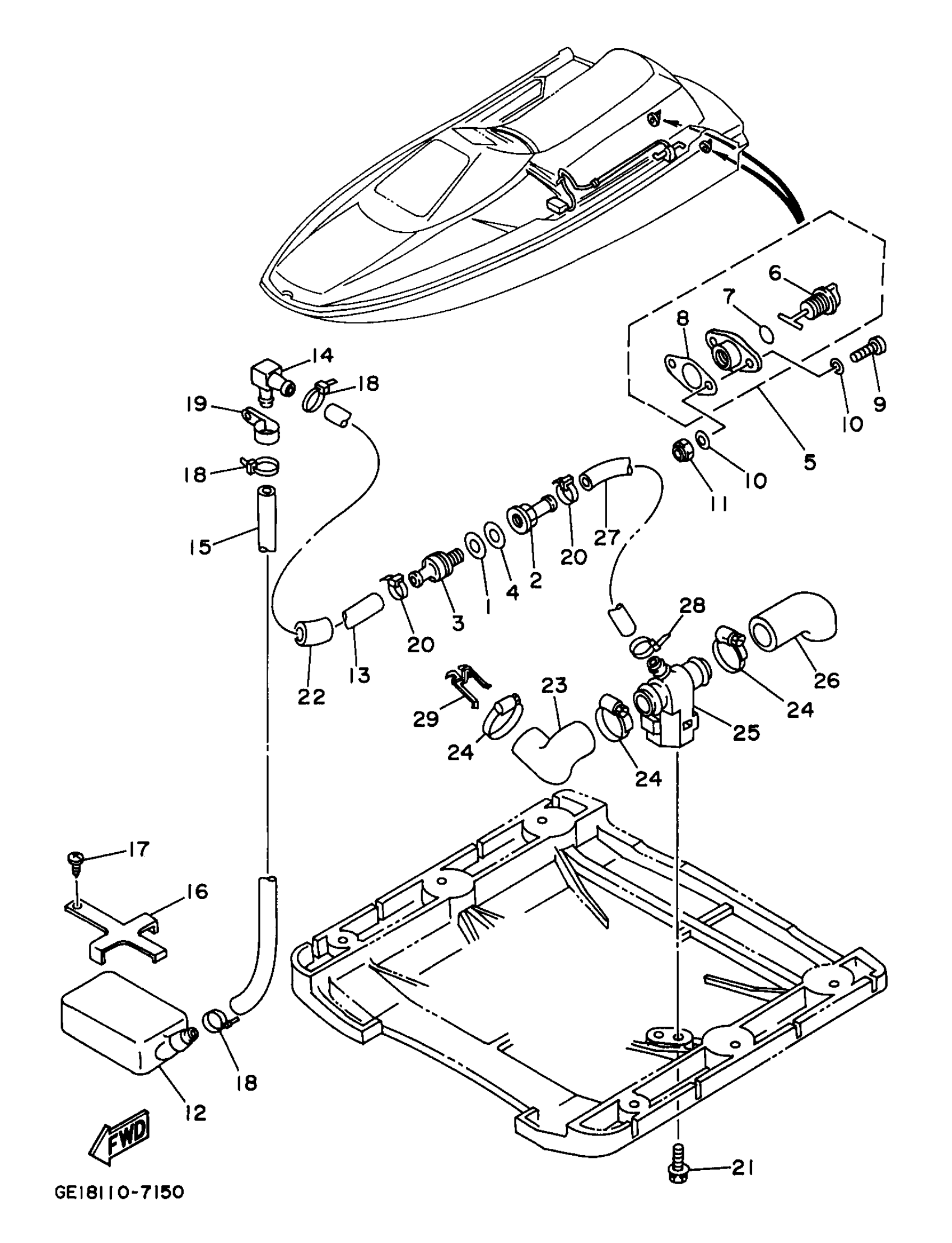

1997 Yamaha Wave Runner Iii (WRA700V) Hull - Deck 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

90430-13909-00

1
Out of stock

2

CONNECTION, THRU-HULL 1/4

90604-80759-00

1
Out of stock

3

CONNECTION, THRU-HULL 1/4

90604-80760-00

1
Out of stock

4

GASKET

90430-13909-00

1
Out of stock

5

DRAIN PLUG ASSY

EU0-62280-00-00

1
Out of stock

6

. PLUG, DRAIN

EU0-62282-00-00

1
Out of stock

7

. O-RING

EU0-62283-00-00

1
Out of stock

8

. PACKING DRAIN (EU0)

EU0-62285-01-00

1
Out of stock

9

SCREW, PAN HEAD

98580-05020-00

1
Out of stock

10

. WASHER, PLAIN

92990-05200-00

1
Out of stock

11

NUT, FLANGE

95720-05300-00

1
Out of stock

12

STRAINER, BILGE

F4R-6761D-00-00

1
Out of stock

13

HOSE

90445-149U2-00

1
Out of stock

14

JOINT, HOSE

6K8-51162-00-00

1
Out of stock

15

HOSE

90445-149U3-00

1
Out of stock

16

BASE

FJ0-67618-00-00

1
Out of stock

17

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

—
Out of stock

18

CLAMP (6E5)

90465-13M11-00

—
Out of stock

19

CLIP, NYLON 18

90600-918U3-00

1
Out of stock

20

CLAMP (6E5)

90465-13M11-00

—
Out of stock

21

BOLT, WITH WASHER

90119-06901-00

1
Out of stock

22

PACKING, HOSE 2

FJ0-67578-00-00

1
Out of stock

23

HOSE, PLASHER

6R8-51161-00-00

1
Out of stock

24

HOSE CLAMP ASSY

90450-32097-00

1
Out of stock

25

BODY, VALVE

6K8-7610K-01-00

1
Out of stock

26

HOSE SUCTION

6K8-51141-00-00

1
Out of stock

27

HOSE

90445-14M11-00

1
Out of stock

28

CLAMP (6E5)

90465-13M11-00

—
Out of stock

29

SCREEN

6R8-51384-00-00

1
Out of stock
