1997 Yamaha Wave Runner Iii (WRA700V) Electrical 1 Diagram

← All diagrams

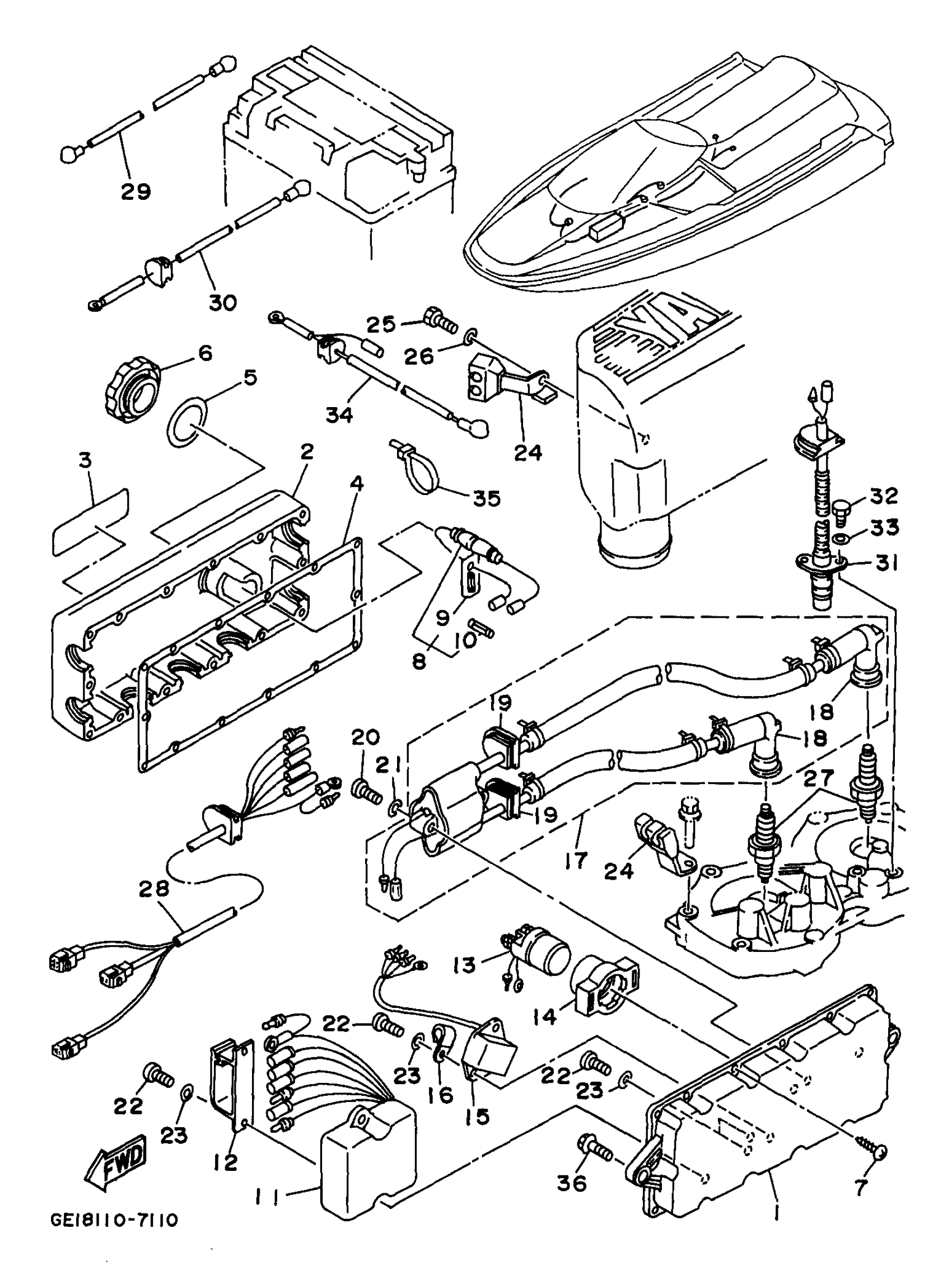

Find the part on the Electrical 1 diagram for your 1997 Yamaha Wave Runner Iii (WRA700V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Wave Runner Iii (WRA700V) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING

6M6-8552A-01-8P

1
Out of stock

2

COVER, CASE

6M6-8552E-01-00

1
Out of stock

3

MARK 3

6R7-83623-40-00

1
Out of stock

4

GASKET, TERMINAL

6M6-81921-00-00

1
Out of stock

5

GASKET

6M6-81844-00-00

1
Out of stock

6

CAP

6M6-8132W-00-00

1
Out of stock

7

SCREW, TAPPING(65J)

97780-60625-00

1
Out of stock

8

FUSE HOLDER ASSY

6K8-82150-02-00

1
Out of stock

9

FUSE SPEAR (10A)

6K8-82159-01-00

1
Out of stock

10

FUSE (10A)

1E6-82151-00-00

1
Out of stock

11

C.D.I. UNIT ASSY

62T-85540-04-00

1
Out of stock

12

CLAMP

90464-06M29-00

1
Out of stock

13

STARTER RELAY ASSY

6G1-81941-10-00

1
Out of stock

14

HOLDER, RELAY

6M6-81952-01-00

1
Out of stock

15

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

1
Out of stock

16

CLAMP

90465-08028-00

1
Out of stock

17

IGNITION COIL ASSY

6R8-85570-11-00

1
Out of stock

18

. CAP, PLUG

62E-82371-10-00

1
Out of stock

19

GROMMET

90480-06M43-00

1
Out of stock

20

SCREW, PAN HEAD(6E0)

97885-06030-00

1
Out of stock

21

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

22

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

23

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

24

CLAMP, CORD

6R8-82361-00-00

1
Out of stock

25

BOLT(62E)

97013-08012-00

—
Out of stock

26

.. WASHER, PLATE

92990-08600-00

1
Out of stock

27

BR7HS NGK SPLG 4PK

BR7-HS000-00-00

1
Out of stock

28

EXTENSION, WIRE LEAD

6R8-82553-01-00

1
Out of stock

29

WIRE,LEAD

62T-82117-01-00

1
Out of stock

30

WIRE, LEAD

6R8-82117-11-00

1
Out of stock

31

THERMO SWITCH ASSEMBLY

6R8-82560-00-00

1
Out of stock

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

33

WASHER, SPRING

92995-06100-00

1
Out of stock

34

WIRE, LEAD

6R8-82117-21-00

1
Out of stock

35

CLAMP (6E5)

90465-13M11-00

—
Out of stock

36

BOLT, WITH WASHER

90119-08907-00

1
Out of stock
