1995 Yamaha Wave Runner III GP (WRA700T) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1995 Yamaha Wave Runner III GP (WRA700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

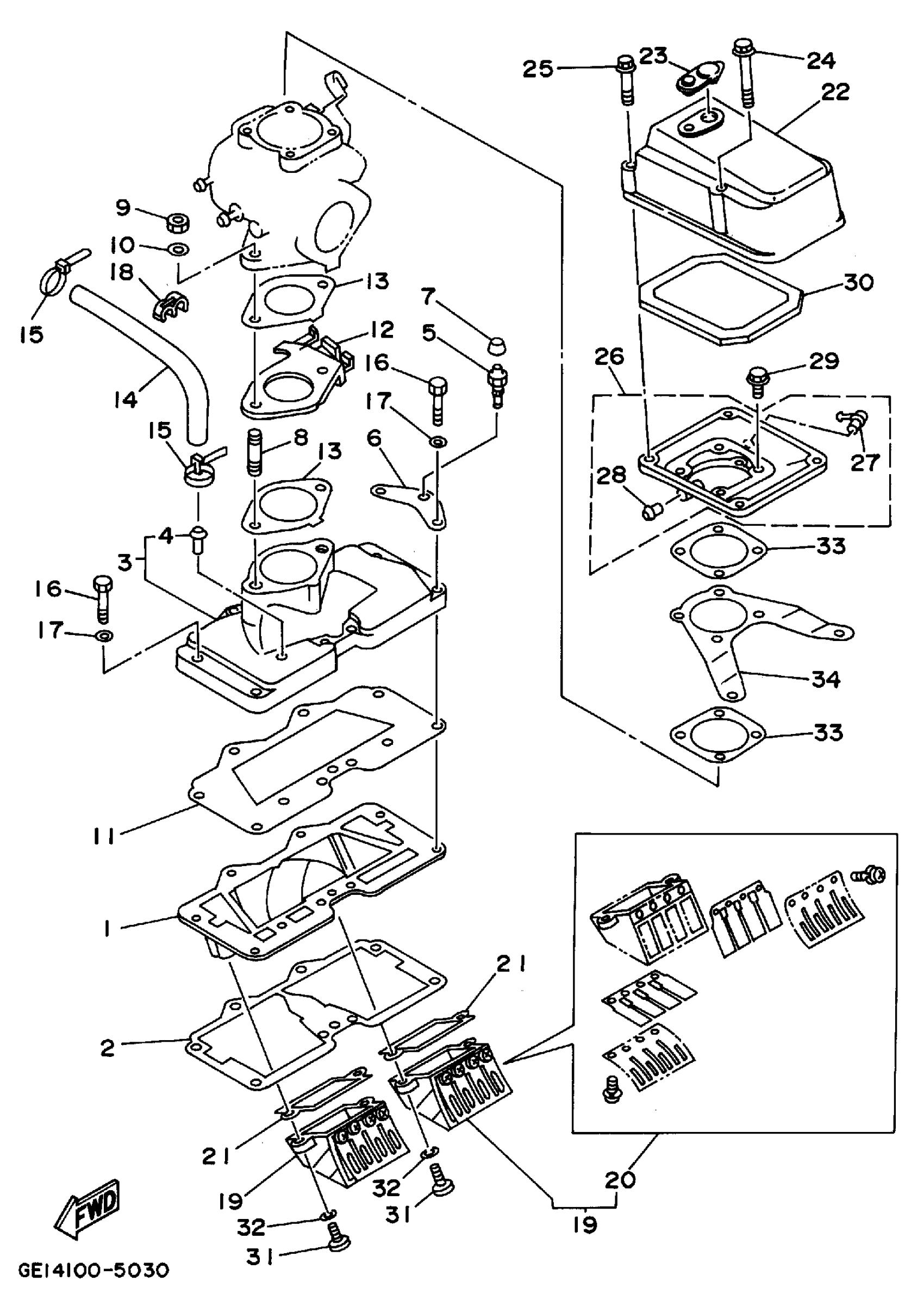

1995 Yamaha Wave Runner III GP (WRA700T) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD 1

61X-13641-01-94

1
Out of stock

2

GASKET

61X-13566-A1-00

1

$12.99

In stock

3

MANIFOLD, INTAKE

61X-13555-01-8P

1
Out of stock

4

. PIPE, JOINT 4

652-24461-00-00

1

$4.74

In stock

5

NIPPLE, GREASE

61L-5169A-00-00

1

$9.22

In stock

6

PLATE

61L-14243-00-00

1
Out of stock

7

CAP, GREASE NIPPLE

663-45119-01-00

1

$1.86

In stock

8

BOLT, STUD

90116-08M14-00

1

$5.53

In stock

9

NUT (661)

95380-08600-00

1

$6.23

In stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

GASKET

61X-13563-A1-00

1
Out of stock

12

PLATE

6M6-14527-02-94

1
Out of stock

13

GASKET, MANIFOLD

6M6-13556-A1-00

1

$6.00

In stock

14

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

15

CLAMP

90465-10098-00

1

$2.24

In stock

16

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

CLAMP(6R8)

90464-10M38-00

—

$7.49

In stock

19

REED VALVE ASSY

61X-13610-01-00

1
Out of stock

20

. REED SET

61X-W0004-00-00

1
Out of stock

21

. GASKET, VALVE SEAT

61X-13621-A0-00

1
Out of stock

22

COVER, CARBURETOR 1

61X-14283-01-00

1

$42.99

In stock

23

GROMMET

6K8-14435-00-00

1

$11.49

In stock

24

BOLT, WITH WASHER

90119-05M02-00

1

$3.16

In stock

25

BOLT, WITH WASHER

90119-05M01-00

1
Out of stock

26

COVER, CARBURETOR 2

6R8-14284-00-98

1
Out of stock

27

NIPPLE, HOSE

6E5-11372-01-00

1

$9.35

In stock

28

. PIPE, JOINT

6H1-14485-00-00

1

$7.15

In stock

29

1

$2.46

In stock

30

ELEMENT, AIR CLEANER

6M6-14451-00-00

1
Out of stock

31

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

32

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

33

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

1

$5.08

In stock

34

PLATE

6R7-14255-00-00

1
Out of stock
