1995 Yamaha Wave Runner III GP (WRA700T) Hull Deck 2 Diagram

← All diagrams

Find the part on the Hull Deck 2 diagram for your 1995 Yamaha Wave Runner III GP (WRA700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

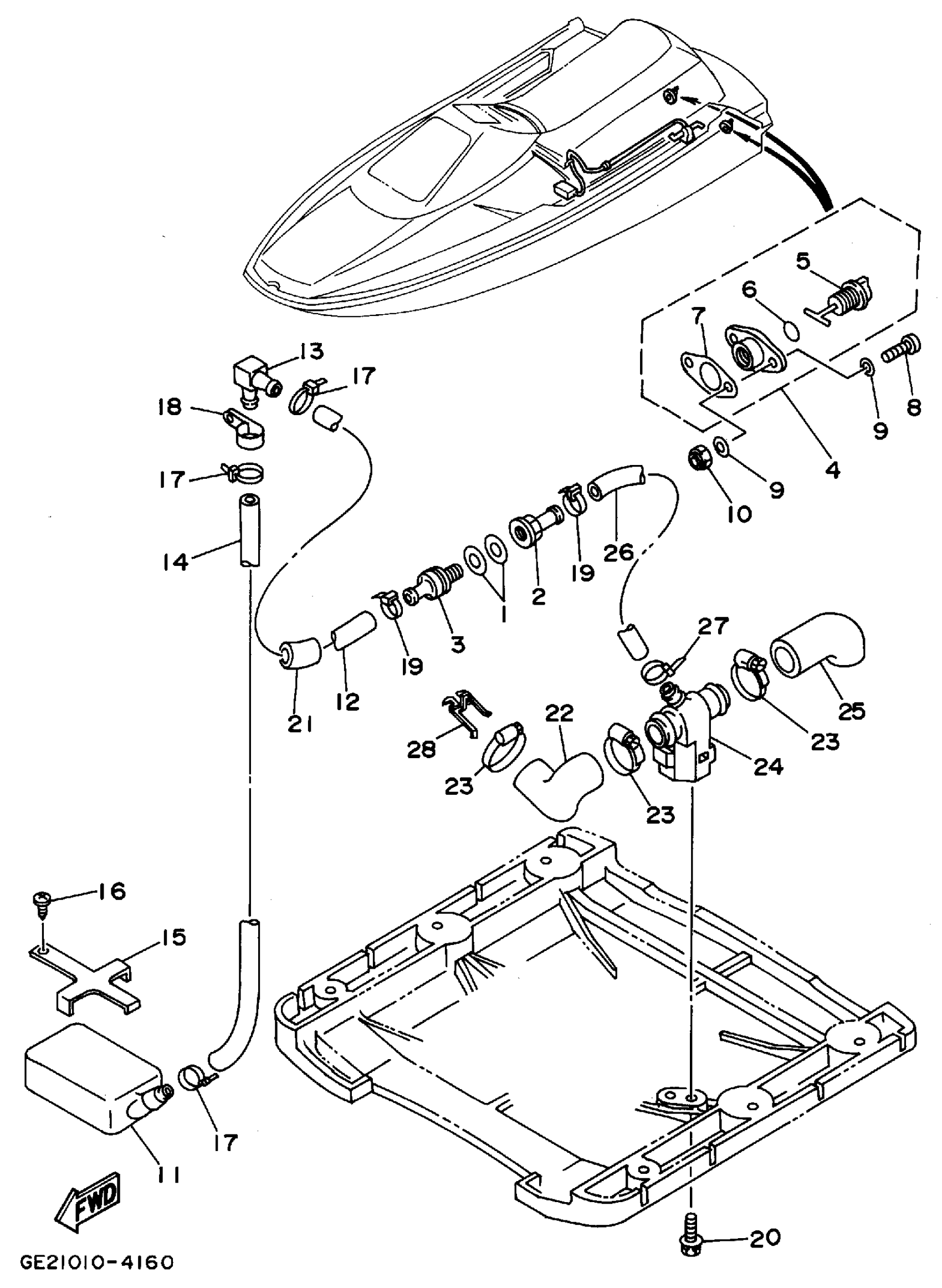

1995 Yamaha Wave Runner III GP (WRA700T) Hull Deck 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

90430-13909-00

1
Out of stock

2

CONNECTION, THRU-HULL 1/4

90604-80759-00

1

$18.99

In stock

3

CONNECTION, THRU-HULL 1/4

90604-80760-00

1
Out of stock

4

DRAIN PLUG ASSY

EU0-62280-00-00

1

$28.23

In stock

5

. PLUG, DRAIN

EU0-62282-00-00

1

$7.91

In stock

6

. O-RING

EU0-62283-00-00

1

$3.95

In stock

7

. PACKING DRAIN (EU0)

EU0-62285-01-00

1

$6.00

In stock

8

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

9

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

10

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

11

STRAINER, BILGE

F4R-6761D-00-00

1

$31.99

In stock

12

HOSE

90445-149U2-00

1
Out of stock

13

JOINT, HOSE

6K8-51162-00-00

1

$11.49

In stock

14

HOSE

90445-149U3-00

1
Out of stock

15

BASE

FJ0-67618-00-00

1
Out of stock

16

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

17

CLAMP

90465-10098-00

1

$2.24

In stock

18

CLIP, NYLON 17

90600-91728-00

1

$5.54

In stock

19

CLAMP

90465-10098-00

1

$2.24

In stock

20

BOLT, WITH WASHER

90119-06901-00

1
Out of stock

21

PACKING, HOSE 2

FJ0-67578-00-00

1
Out of stock

22

HOSE, PLASHER

6R8-51161-00-00

1
Out of stock

23

HOSE CLAMP ASSY

90450-32097-00

1

$13.99

In stock

24

BODY, VALVE

6K8-7610K-01-00

1
Out of stock

25

HOSE SUCTION

6K8-51141-00-00

1
Out of stock

26

HOSE

90445-14M11-00

1
Out of stock

27

CLAMP

90465-10098-00

1

$2.24

In stock

28

SCREEN

6R8-51384-00-00

1
Out of stock
