1995 Yamaha Wave Runner III GP (WRA700T) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1995 Yamaha Wave Runner III GP (WRA700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

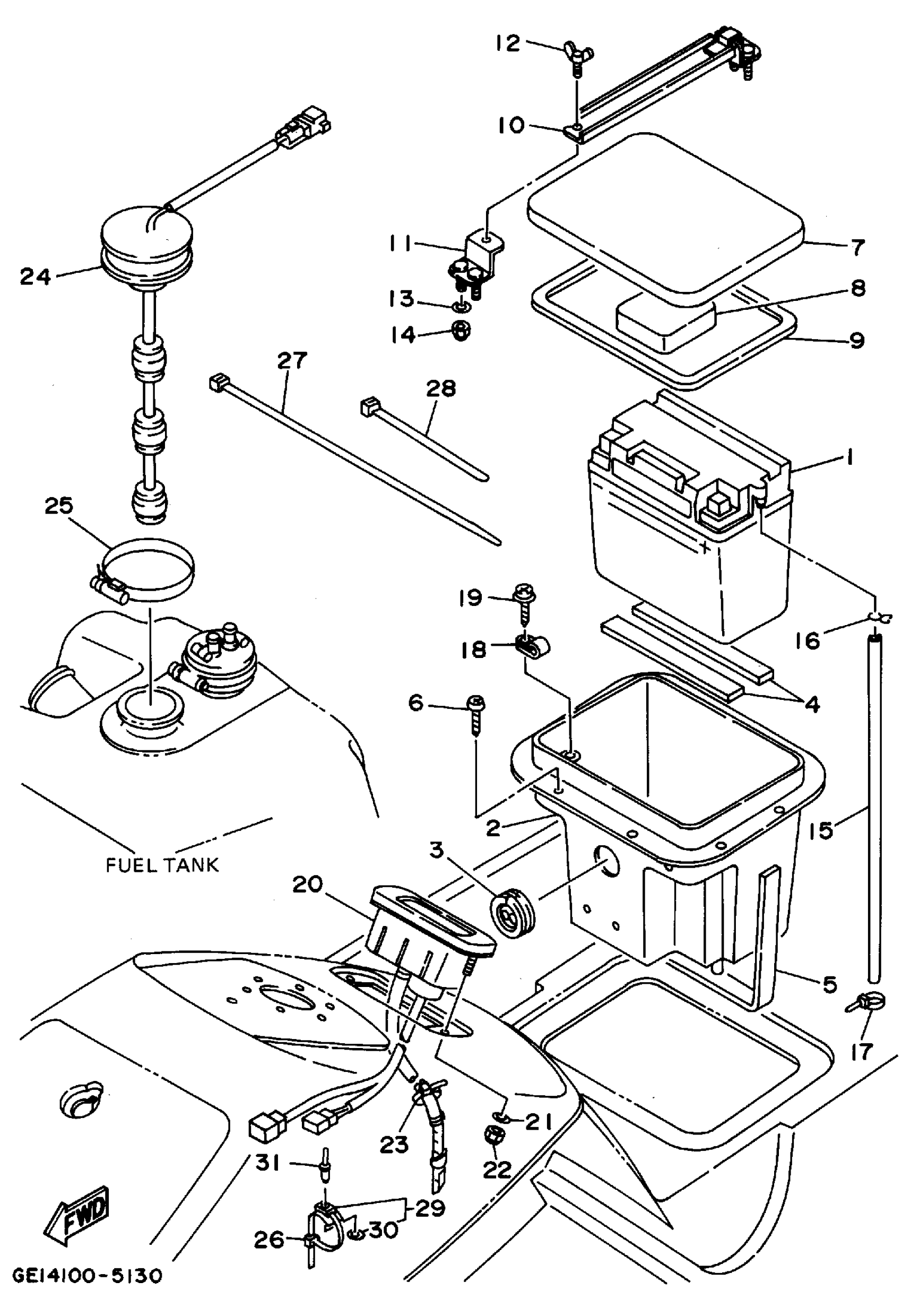

1995 Yamaha Wave Runner III GP (WRA700T) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

1

$180.91

In stock

2

CASE,BATTERY

GA9-U8211-01-00

1
Out of stock

3

GROMMET

FJ0-68222-01-00

1
Out of stock

4

PAD, BATTERY 1

FJ0-68221-00-00

1
Out of stock

5

PAD, BATTERY 2

FJ0-68221-30-00

1
Out of stock

6

SCREW

90149-05984-00

1

$2.77

In stock

7

RID, BATTERY CASE

GA9-U8212-00-00

1
Out of stock

8

PAD, BATTERY 3

FJ0-68221-40-00

1
Out of stock

9

PAD, BATTERY 4

FJ0-68221-50-00

1
Out of stock

10

BAND, BATTERY CASE

FJ0-68228-00-00

1
Out of stock

11

END PLATE

FJ0-68229-00-00

1
Out of stock

12

BOLT, WING

90122-05909-00

1
Out of stock

13

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

14

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

15

HOSE, AIR VENT 5

FJ0-67856-40-00

1

$16.99

In stock

16

CLIP

90467-08M10-00

1
Out of stock

17

CLAMP

90465-10098-00

1

$2.24

In stock

18

CLIP, NYLON 14

90601-31402-00

1

$7.23

In stock

19

SCREW, TAPPING

97780-40116-00

1

$3.79

In stock

20

METER ASSY

FJ0-68204-02-00

1
Out of stock

21

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

22

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

23

BAND

90601-200U2-00

1

$3.54

In stock

24

FUEL SENSER

FJ0-68242-00-00

1
Out of stock

25

BAND, HOSE 62

90601-162U5-00

1

$6.92

In stock

26

BAND (EU0)

90601-20009-00

1

$6.46

In stock

27

BAND

90601-20008-00

1

$7.38

In stock

28

BAND (EU0)

90601-20009-00

1

$6.46

In stock

29

CLAMP COMP (EU0)

90600-91736-00

—

$6.68

In stock

30

. WASHER, PLAIN

90201-05925-00

1
Out of stock

31

RIVET, BLIND

90267-48802-00

1

$2.06

In stock
