VENTILATION

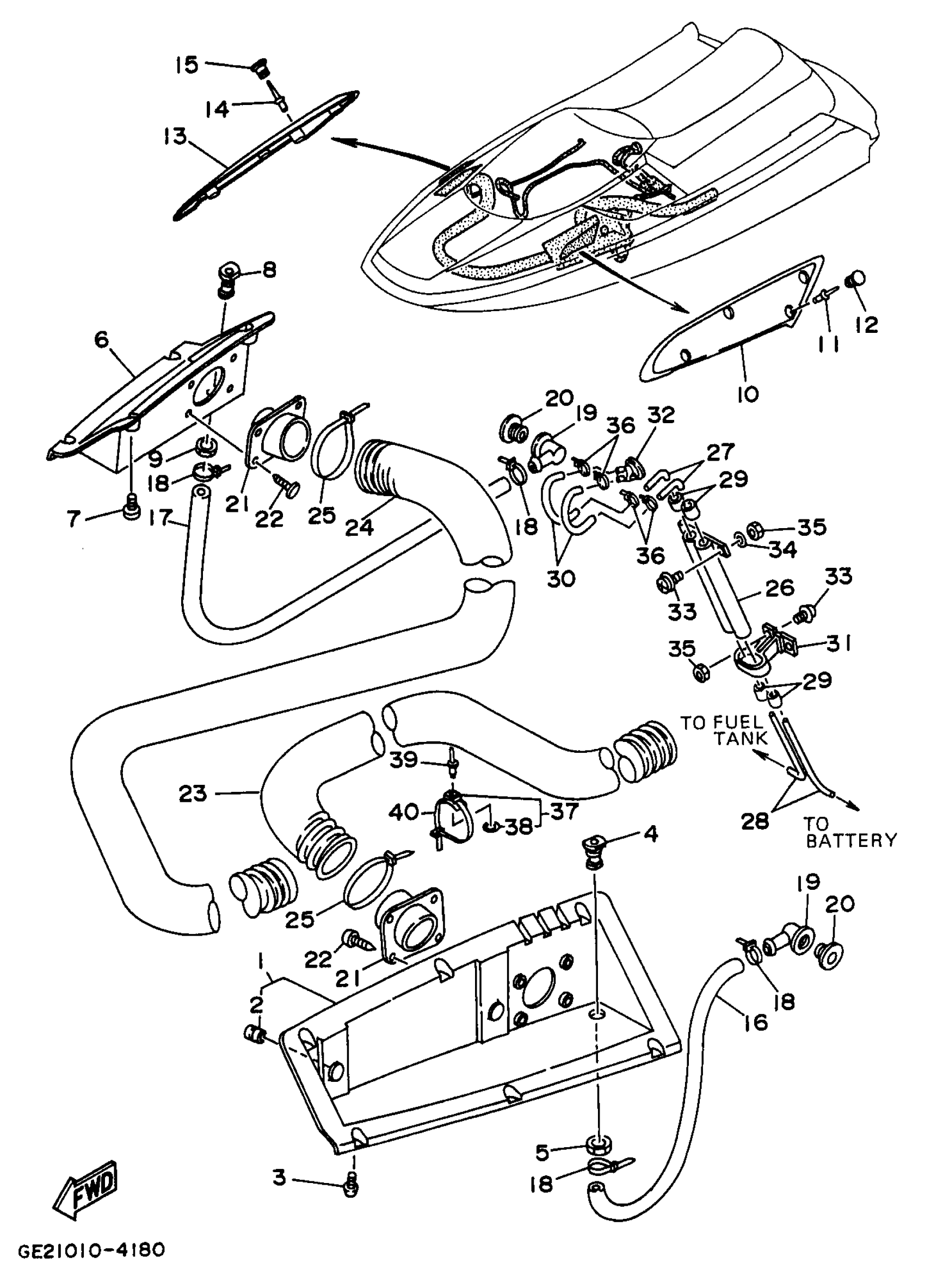

1996 Yamaha Wave Runner III (WRA650U) Ventilation Diagram
Find the part on the Ventilation diagram for your 1996 Yamaha Wave Runner III (WRA650U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
COVER, VENTILATOR (LH)
GA9-U213B-00-00
1
COVER, VENTILATOR (LH)
GA9-U213B-00-00
2
. NUT
90179-08927-00
3
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
3
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
4
BODY, DRAIN 1
EU0-62241-00-00
6
COVER, VENTILATOR (RH)
GA9-U213C-00-00
6
COVER, VENTILATOR (RH)
GA9-U213C-00-00
7
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
7
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
8
BODY, DRAIN 1
EU0-62241-00-00
10
COVER, AIR INTAKE
GE2-6212B-10-00
11
RIVET, BLIND
90267-489UJ-00
12
CAP, RIVE
GE2-6212D-00-00
13
COVER, AIR INTAKE
GE2-6212B-20-00
14
RIVET, BLIND
90267-489UJ-00
15
CAP, RIVE
GE2-6212D-00-00
17
HOSE
90669-03008-00
19
BODY, DRAIN 3
FN8-6224E-00-00
20
BODY, DRAIN 4
FN8-6224F-01-00
21
BASE, AIR INTAKE
FJ0-62127-00-00
22
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
23
VENTILATION HOSE (LH)
FJ0-62136-10-00
24
VENTILATION HOSE (RH)
FJ0-62136-20-00
26
PIPE, VENTILATION
FJ0-62149-00-00
27
ELBOW, VENTILATOR 11
FJ0-62156-00-00
28
ELBOW VENT 12
EU0-62156-32-00
29
CAP
EU0-62155-00-00
30
HOSE (L180)
90445-094K7-00
31
SUPPORT
FJ0-62151-00-00
32
NIPPLE
FJ0-6215F-00-00
38
. WASHER, PLAIN
90201-05925-00
