1996 Yamaha Wave Runner III (WRA650U) JET Unit Diagram

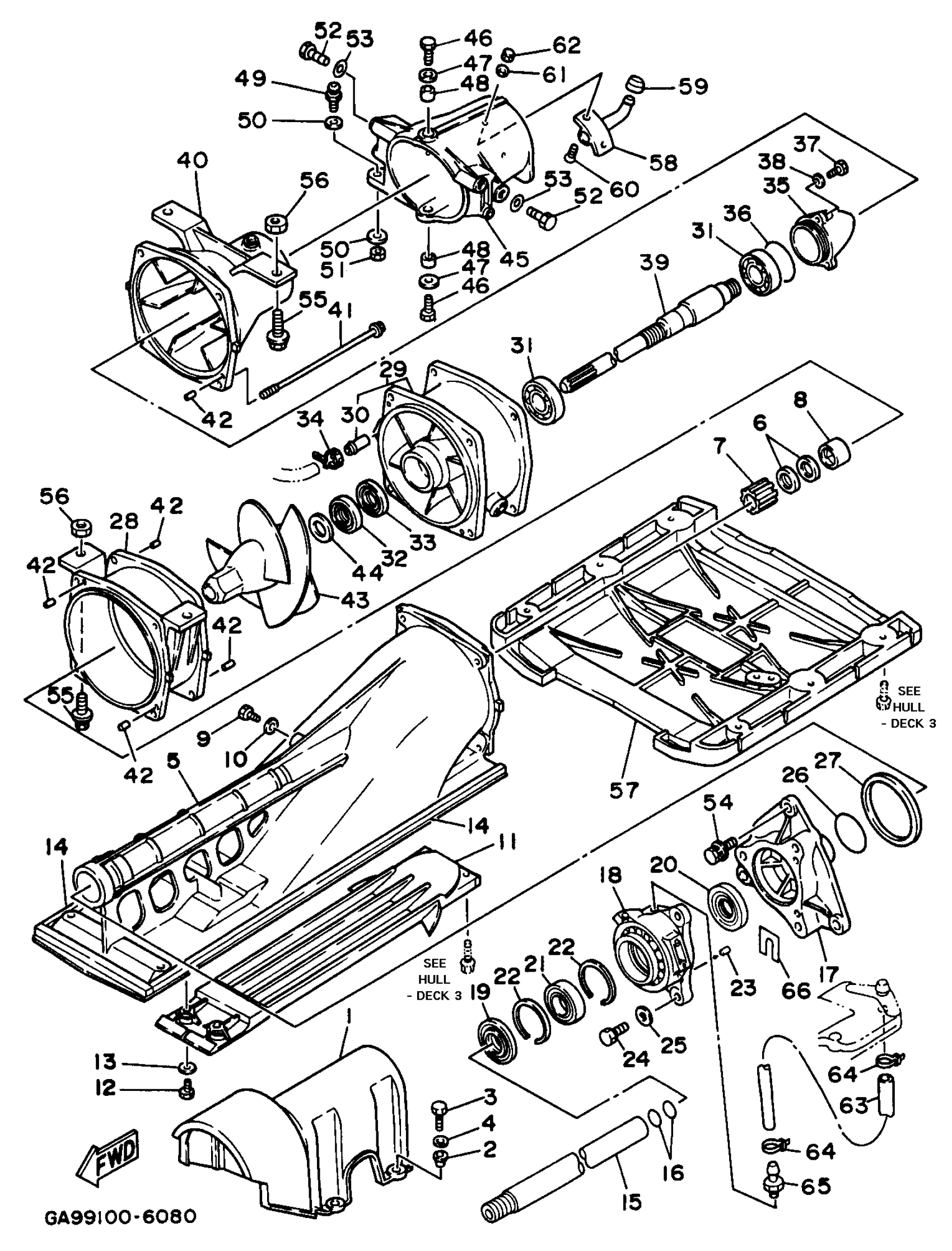

Find the part on the JET Unit diagram for your 1996 Yamaha Wave Runner III (WRA650U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
COVER
6R8-51381-01-00
5
DUCT, INTAKE
6R8-51311-02-94
7
BUSHING, DRIVE SHAFT
6R8-45318-00-00
8
SPACER
6R8-51348-02-94
12
BOLT (FJ0)
97080-06018-00
15
SHAFT,COUPLER
6R8-51323-10-00
17
HOUSING, BEARING
6R8-45332-00-94
23
PIN, DOWEL (614)
93606-12019-00
29
DUCT, IMPELLER
6R7-51315-01-94
34
BAND, HOSE 11
90601-110UC-00
39
SHAFT, DRIVE
6R8-45511-00-00
40
NOZZULE
6R8-51318-01-94
42
PIN, DOWEL (614)
93606-12019-00
45
NOZZLE,DEFLECTOR
6R8-51313-03-94
55
BOLT, WITH WASHER
90119-109U8-00
57
PLATE 2
FJ0-62731-01-00
66
SHIM (T=1.0)
GD0-67249-00-10
