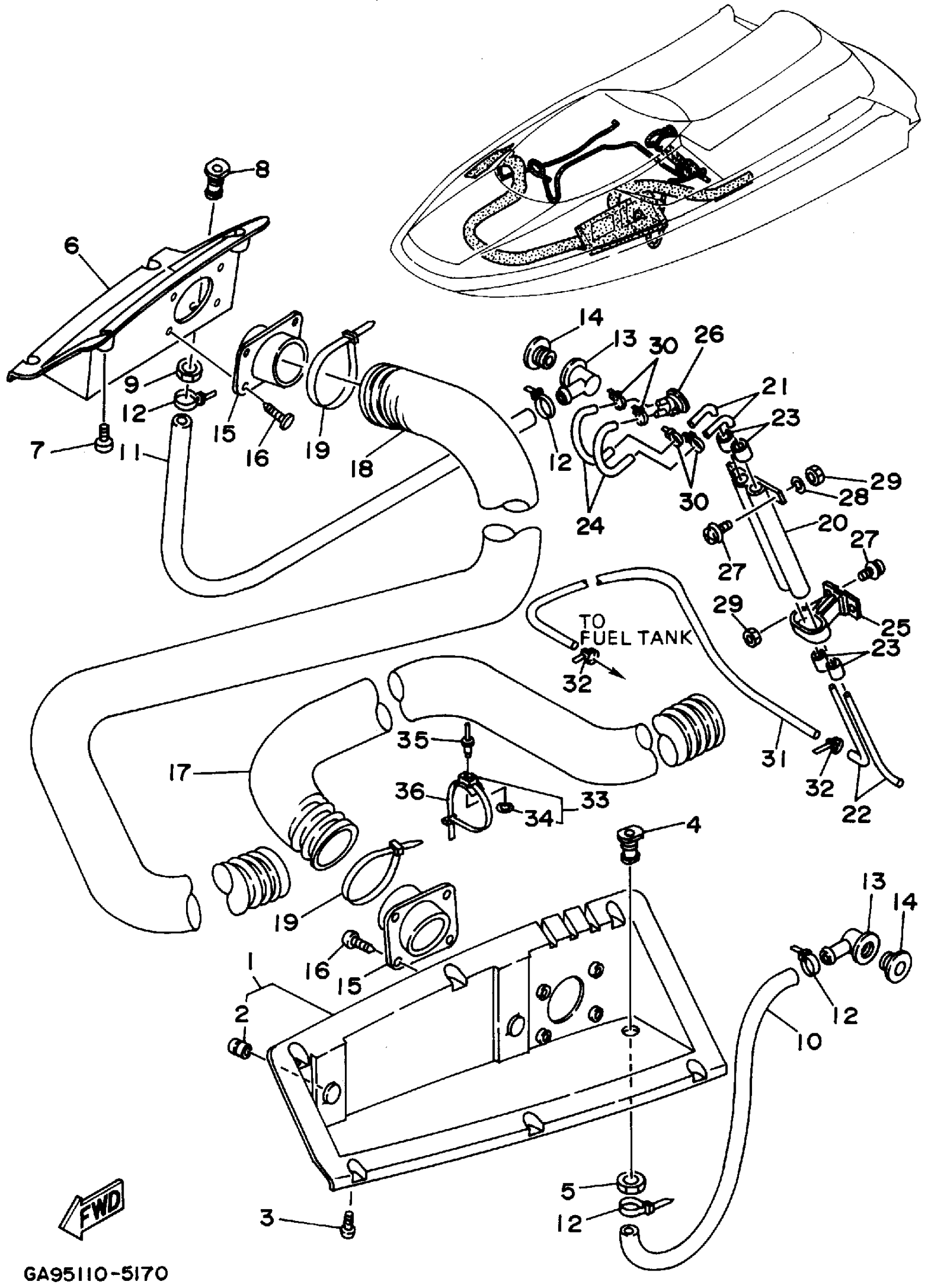

Yamaha WRA650T (WAVE RUNNER III) 1995 VENTILATION Diagram

#

Description
Price

1

COVER, VENTILATOR (LH)

GA9-U213B-00-00

Unavailable

2

. NUT

90179-08927-00

Unavailable

3

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

4

BODY, DRAIN 1

EU0-62241-00-00

Unavailable

5

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

6

COVER, VENTILATOR (RH)

GA9-U213C-00-00

Unavailable

7

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

8

BODY, DRAIN 1

EU0-62241-00-00

Unavailable

9

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

10

HOSE 1

90669-03030-00

$98.47

11

HOSE 1

90669-03030-00

$98.47

12

BAND

90601-200U1-00

$2.77

13

BODY, DRAIN 3

FN8-6224E-00-00

Unavailable

14

BODY, DRAIN 4

FN8-6224F-01-00

Unavailable

15

BASE, AIR INTAKE

FJ0-62127-00-00

Unavailable

16

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

17

VENTILATION HOSE (LH)

FJ0-62136-10-00

Unavailable

18

VENTILATION HOSE (RH)

FJ0-62136-20-00

Unavailable

19

BAND

90601-20008-00

$7.27

20

PIPE, VENTILATION

FJ0-62149-00-00

Unavailable

21

ELBOW, VENTILATOR 11

FJ0-62156-00-00

Unavailable

22

ELBOW VENT 12

EU0-62156-32-00

Unavailable

23

CAP

EU0-62155-00-00

Unavailable

24

HOSE (L180)

90445-094K7-00

Unavailable

25

SUPPORT

FJ0-62151-00-00

Unavailable

26

NIPPLE

FJ0-6215F-00-00

Unavailable

27

SCREW, WITH WASHER

90159-05900-00

$2.17

28

. WASHER, PLAIN

92990-05200-00

$4.29

29

NUT, FLANGE

95720-05300-00

$1.28

30

CLAMP

90465-10098-00

$1.68

31

HOSE, AIR VENT 4

FJ0-67856-30-00

Unavailable

32

CLAMP

90465-10098-00

$1.68

33

CLAMP COMP (EU0)

90600-91736-00

Unavailable

34

. WASHER, PLAIN

90201-05925-00

Unavailable

35

RIVET, BLIND

90267-48802-00

$1.98

36

BAND

90601-20008-00

$7.27
