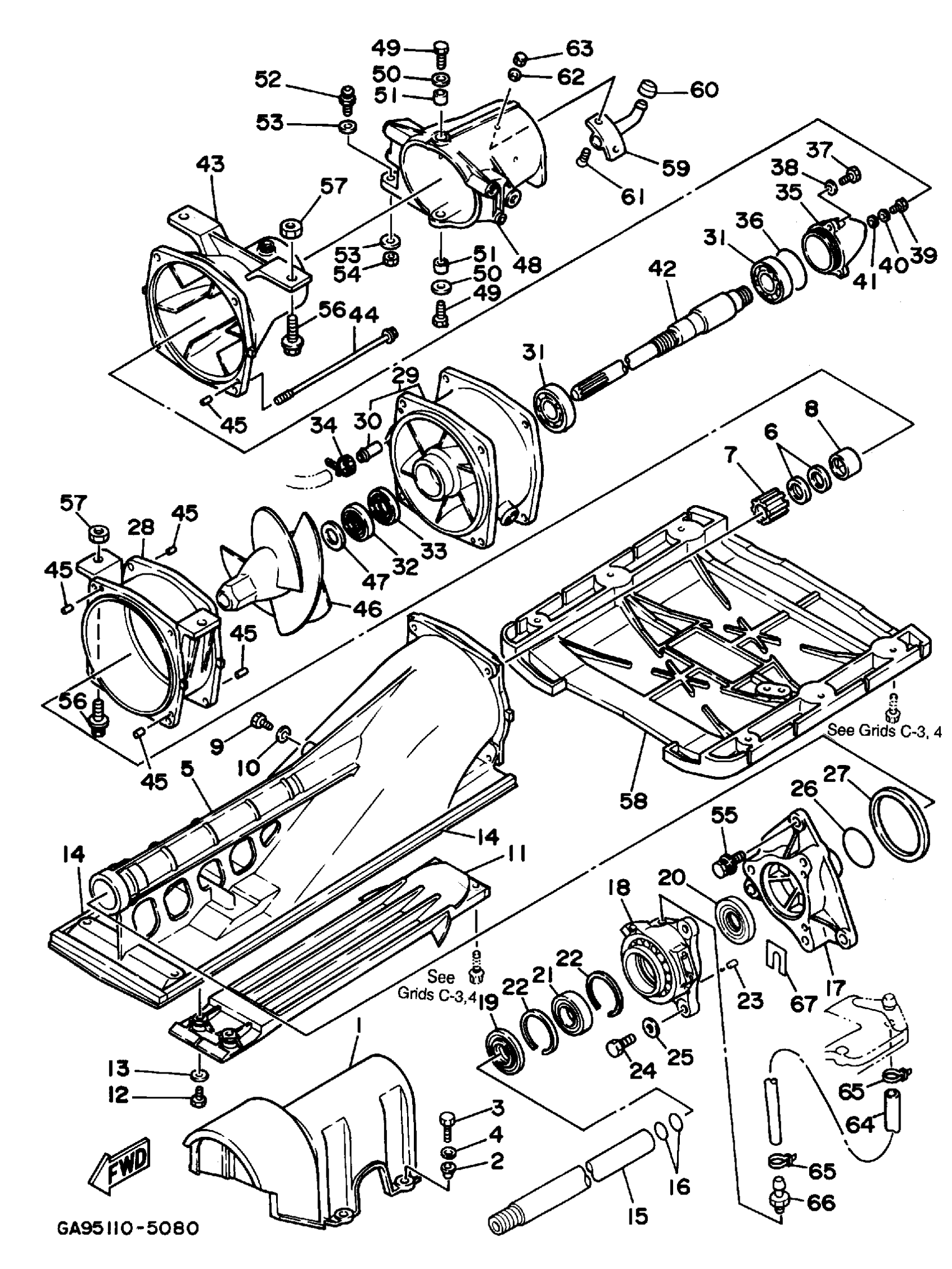

Find the part on the Jet Unit 1 diagram for your 1995 Yamaha Wave Runner Iii (WRA650T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Wave Runner Iii (WRA650T) Jet Unit 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

6R8-51381-01-00

1
Out of stock

2

COLLAR

90387-06M70-00

1

$7.12

In stock

3

1

$2.46

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

DUCT, INTAKE

6R8-51311-02-94

1
Out of stock

6

OIL SEAL(6R8)

93102-18M35-00

—

$9.69

In stock

7

BUSHING, DRIVE SHAFT

6R8-45318-00-00

1
Out of stock

8

SPACER

6R8-51348-02-94

1
Out of stock

9

BOLT

90101-06M27-00

1

$2.90

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

SCREEN, INTAKE

6R8-51333-01-CA

1

$148.49

In stock

12

BOLT (FJ0)

97080-06018-00

—
Out of stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

14

. FELT, PACKING

6R8-51367-01-00

1

$11.08

In stock

15

SHAFT,COUPLER

6R8-51323-10-00

1
Out of stock

16

O-RING(6R7)

93210-17MA4-00

—

$4.84

In stock

17

HOUSING, BEARING

6R8-45332-00-94

1
Out of stock

18

HOUSING, BEARING

6R7-45332-03-CA

1

$260.99

In stock

19

OIL SEAL(62T)

93101-25M55-00

—

$26.00

In stock

20

OIL SEAL

93101-24001-00

—

$31.99

In stock

21

BEARING(62G)

93306-205U6-00

1

$49.89

In stock

22

CIRCLIP

93430-47M04-00

1

$5.53

In stock

23

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

24

BOLT (62G)

97095-08025-00

—

$6.57

In stock

25

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

26

O-RING

93210-35M72-00

—

$11.57

In stock

27

SEAL

6K8-45127-00-00

1

$15.49

In stock

28

HOUSING, IMPELLER

6R8-51312-03-94

1

$397.49

In stock

29

DUCT, IMPELLER

6R7-51315-01-94

1
Out of stock

30

. NIPPLE

6K8-51129-00-00

1

$12.99

In stock

31

BEARING (6K8)

93306-205U1-00

—

$21.14

In stock

32

OIL SEAL(6R7)

93102-25M34-00

—

$14.64

In stock

33

OIL SEAL(6R7)

93101-25M50-00

—

$22.28

In stock

34

BAND

90601-200U1-00

1

$2.89

In stock

35

CAP

62T-51326-00-00

1

$71.49

In stock

36

. O-RING

93210-46M16-00

1

$7.91

In stock

37

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

38

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

39

BOLT(GH1)

97080-06012-00

1
Out of stock

40

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

41

. GASKET

90430-06M03-00

1

$2.97

In stock

42

SHAFT, DRIVE

6R8-45511-00-00

1
Out of stock

43

NOZZULE

6R8-51318-01-94

1
Out of stock

44

BOLT(6R8)

90101-06M04-00

—

$18.88

In stock

45

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

46

IMPELLER

6R7-51321-00-8S

1

$333.49

In stock

47

SPACER

62T-51348-00-00

1

$48.10

In stock

48

NOZZLE,DEFLECTOR

6R8-51313-03-94

1
Out of stock

49

BOLT, HEXAGON

97095-08018-00

1

$3.23

In stock

50

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

51

COLLAR

90387-08M08-00

1

$12.11

In stock

52

. BOLT, JOINT

6R7-42316-00-00

1

$34.49

In stock

53

WASHER, PLATE

90201-06M31-00

1

$2.92

In stock

54

NUT(650)

95380-06700-00

—

$6.17

In stock

55

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

56

BOLT

90119-10906-00

1
Out of stock

57

NUT

90179-10925-00

1

$5.08

In stock

58

PLATE 2

FJ0-62731-01-00

1
Out of stock

59

SPOUT

62G-62693-00-00

1

$50.99

In stock

60

CAP, SPOUT

6R8-62695-00-00

1

$4.62

In stock

61

SCREW(617)

98780-05012-00

—

$3.03

In stock

62

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

63

.. NUT

95380-05800-00

1

$2.77

In stock

64

HOSE (L445)

90445-09M21-00

—

$22.46

In stock

65

CLAMP

90465-10098-00

1

$2.24

In stock

66

NIPPLE, HOSE

61L-45378-00-00

1

$9.10

In stock

67

SHIM (T=0.5)

GD0-67249-A0-00

1

$4.45

In stock

67

SHIM (T=1.0)

GD0-67249-00-10

1
Out of stock
