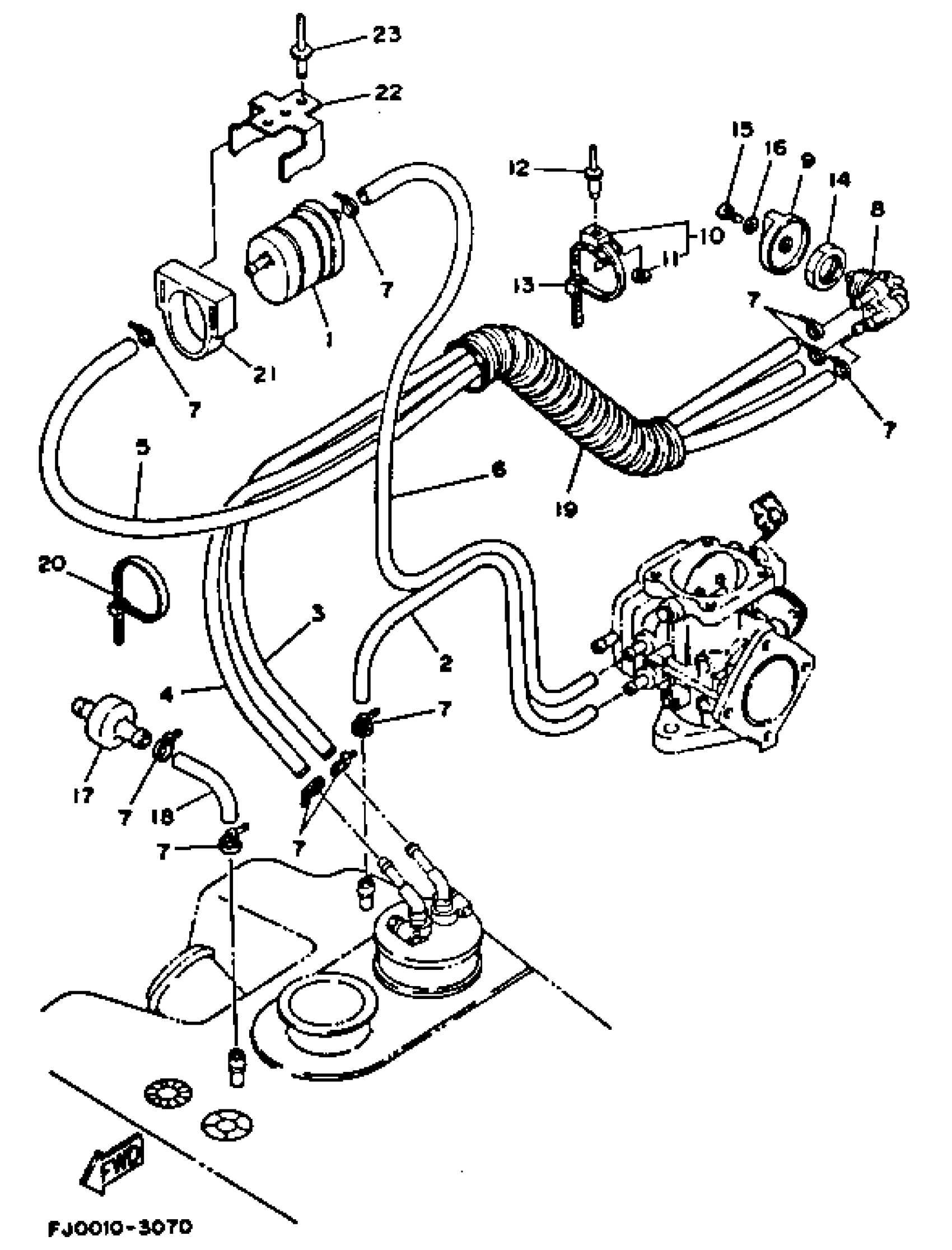

Yamaha WRA650R (WAVE RUNNER III) 1993 FUEL FILTER Diagram

#

Description
Price

1

FILTER ASSY

6K8-24560-21-00

$28.64

2

HOSE (L1040)

90445-10MA9-00

$56.27

3

HOSE (L1700)

90445-10M87-00

Unavailable

4

HOSE (L1700)

90445-10M87-00

Unavailable

5

HOSE (L1700)

90445-10M87-00

Unavailable

6

HOSE (L400)

90445-10M43-00

$5.96

7

CLAMP

90465-10098-00

$1.68

8

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

9

LEVER, COCK

6K8-24524-10-00

$11.84

10

CLAMP COMP (EU0)

90600-91736-00

$6.22

11

. WASHER, PLAIN

90201-05925-00

Unavailable

12

RIVET, BLIND

90267-48802-00

$1.98

13

BAND (EU0)

90601-20009-00

$6.36

14

NUT

90170-22M11-00

Unavailable

15

SCREW, PAN HEAD (E56)

98580-04010-00

$5.75

16

WASHER, PLAIN (646)

92990-04600-00

Unavailable

17

CHECK VALVE

EU0-67767-31-00

$20.93

18

HOSE, AIR VENT 1

EU0-67856-00-00

Unavailable

19

TUBE

FJ0-6773D-00-00

Unavailable

20

BAND (EU0)

90601-20009-00

$6.36

21

HOLDER

EU0-67817-00-00

$13.33

22

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

23

RIVET (EU0)

90267-48938-00

$5.00
