1992 Yamaha Wave Runner III (WRA650Q) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1992 Yamaha Wave Runner III (WRA650Q), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

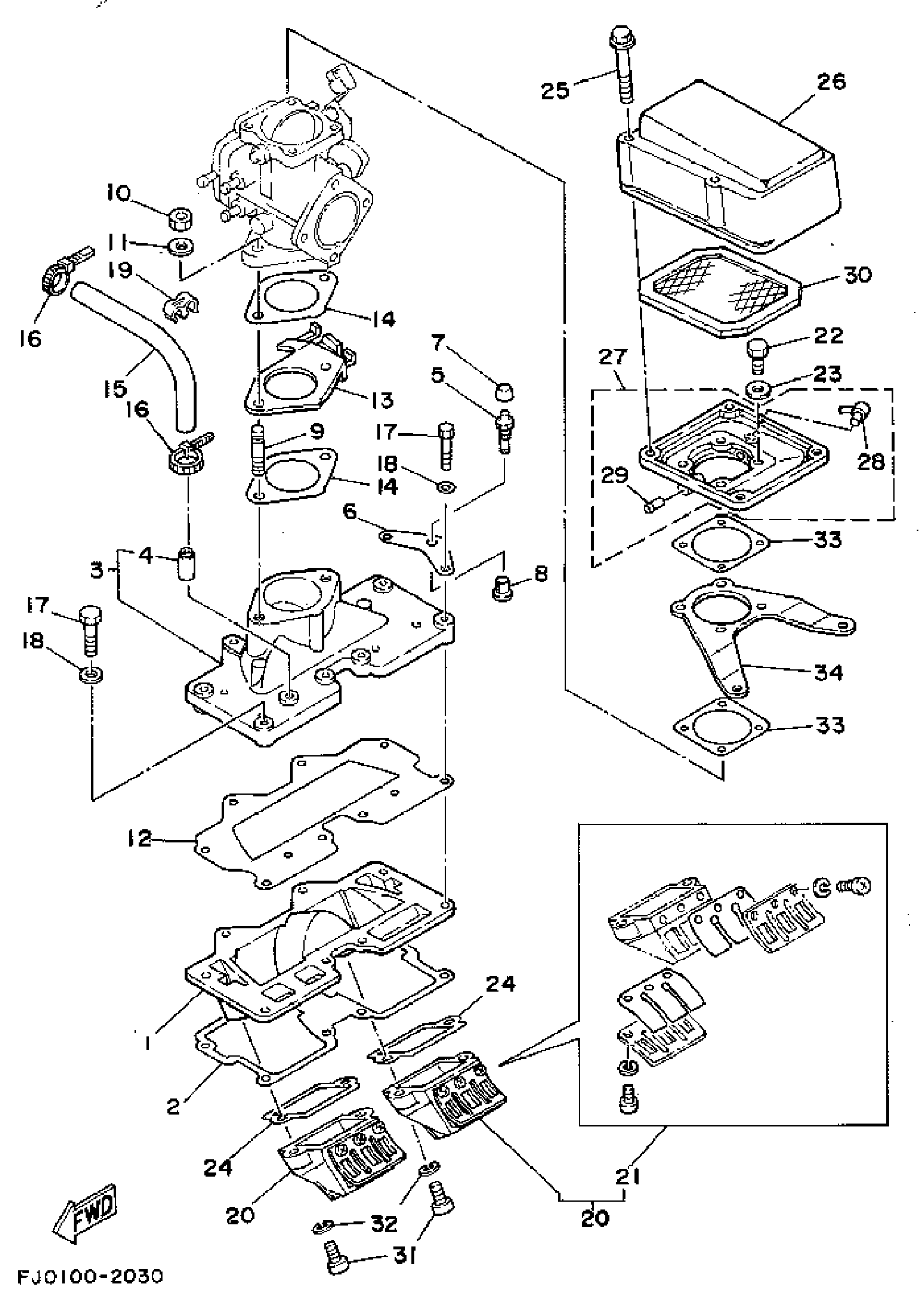

1992 Yamaha Wave Runner III (WRA650Q) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD 1

6M6-13641-00-94

1
Out of stock

2

GASKET

6M6-13566-A2-00

1
Out of stock

3

MANIFOLD,INTAKE

6M6-13555-01-94

1
Out of stock

4

. PIPE, JOINT 4

652-24461-00-00

1

$4.74

In stock

5

NIPPLE, GREASE

61L-5169A-00-00

1

$9.22

In stock

6

PLATE

61L-14243-00-00

1
Out of stock

7

CAP, GREASE NIPPLE

663-45119-01-00

1

$1.86

In stock

8

BUSH

90386-08006-00

1

$2.77

In stock

9

BOLT, STUD

90116-08M14-00

1

$5.53

In stock

10

NUT (661)

95380-08600-00

1

$6.23

In stock

11

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

12

GASKET

6M6-13563-A1-00

1
Out of stock

13

PLATE

6M6-14527-02-94

1
Out of stock

14

GASKET, MANIFOLD

6M6-13556-A1-00

1

$6.00

In stock

15

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

16

CLAMP

90465-10098-00

1

$2.24

In stock

17

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

CLAMP(6R8)

90464-10M38-00

—

$7.49

In stock

20

REED VALVE ASSEMBLY

6R7-13610-01-00

1
Out of stock

21

. REED SET

6R7-W0004-00-00

1
Out of stock

22

BOLT(7U8)

97080-06020-00

1
Out of stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

GASKET, VALVE SEAT

6M6-13621-A1-00

1
Out of stock

25

BOLT, WITH WASHER

90119-05M02-00

1

$3.16

In stock

26

COVER, CARB.

99999-02651-00

1
Out of stock

27

COVER, CARBURETOR 2

6R8-14284-00-98

1
Out of stock

28

NIPPLE, HOSE

6E5-11372-01-00

1

$9.35

In stock

29

. PIPE, JOINT

6H1-14485-00-00

1

$7.15

In stock

30

ELEMENT, AIR CLEANER

6M6-14451-00-00

1
Out of stock

31

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

32

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

33

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

1

$5.08

In stock

34

PLATE

6R7-14255-00-00

1
Out of stock
