1992 Yamaha Wave Runner Iii (WRA650Q) Hull - Deck 1 Diagram

← All diagrams

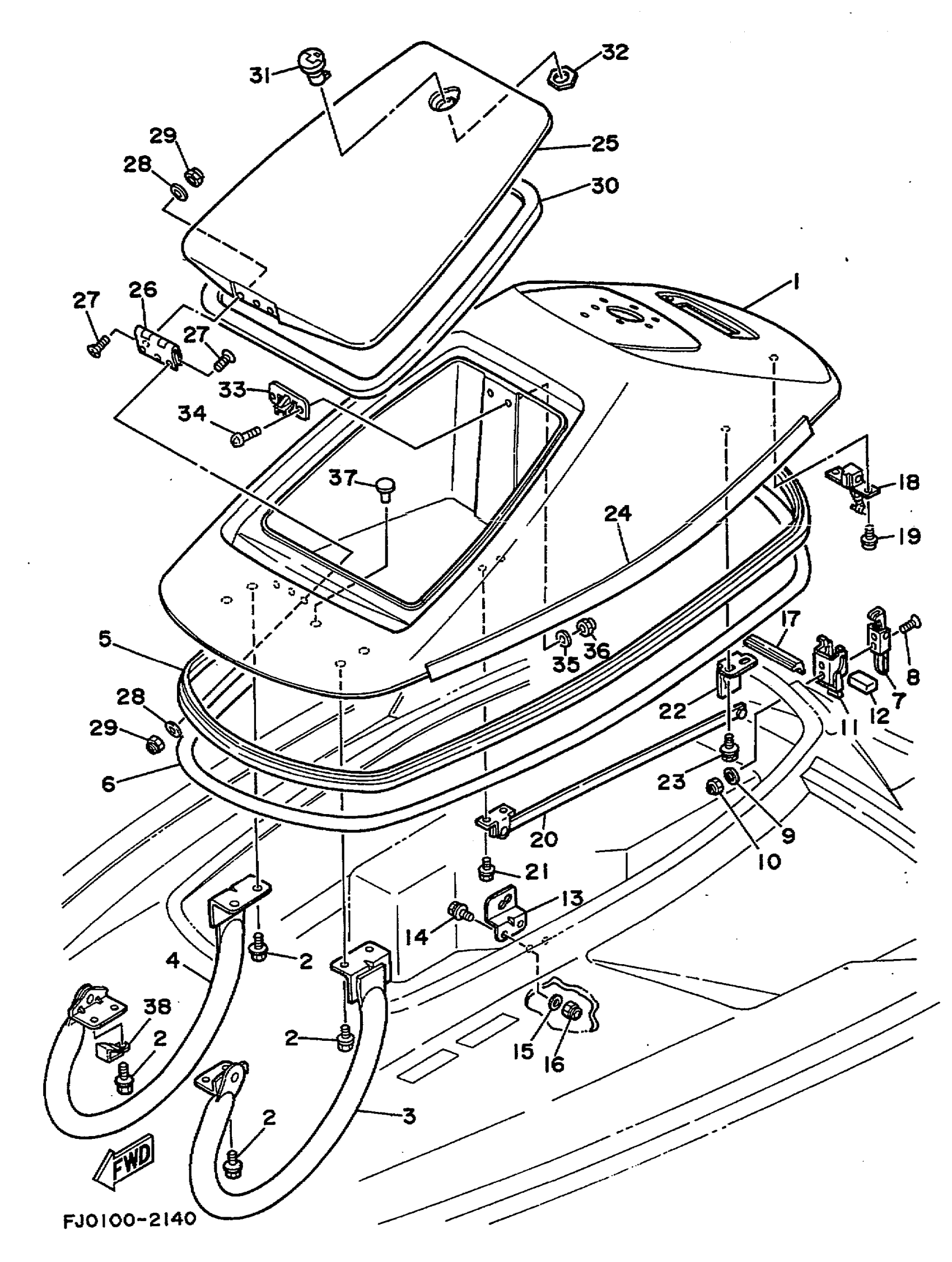

Find the part on the Hull - Deck 1 diagram for your 1992 Yamaha Wave Runner Iii (WRA650Q), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Wave Runner Iii (WRA650Q) Hull - Deck 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH,MAROON

GA9-U516A-02-P9

1
Out of stock

2

BOLT, WITH WASHER

90119-06913-00

1
Out of stock

3

HINGE, HATCH (LH)

FJ0-65163-11-00

1
Out of stock

4

HINGE, HATCH (RH)

FJ0-65163-21-00

1
Out of stock

5

PACKING

FJ0-62663-00-00

1
Out of stock

6

TAPE

90654-91300-00

1
Out of stock

7

BRACKET, HATCH LOCK

EU0-62841-01-00

1
Out of stock

8

SCREW, FLAT HEAD

98780-05020-00

1
Out of stock

9

. WASHER, PLAIN

92990-05200-00

1
Out of stock

10

NUT, FLANGE

95720-05300-00

1
Out of stock

11

STOPPER, HATCH LOCK

FJ0-62849-00-00

1
Out of stock

12

DAMPER, HATCH LOCK

FJ0-62851-00-00

1
Out of stock

13

BRACKET, HATCH SUPPORT

FJ0-62884-00-00

1
Out of stock

14

SCREW PAN HEAD

98580-06020-00

1
Out of stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1
Out of stock

16

NUT, SELF-LOCKING

95720-06300-00

1
Out of stock

17

TRIM

GA9-U5162-00-00

1
Out of stock

18

HOOK, HATCH LOCK

FJ0-62843-00-00

1
Out of stock

19

SCREW, WITH WASHER

90159-06901-00

1
Out of stock

20

SUPPORT, HATCH

FJ0-62891-01-00

1
Out of stock

21

SCREW, WITH WASHER

90159-06901-00

1
Out of stock

22

FIX, PLATE

FJ0-62892-30-00

1
Out of stock

23

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

24

TRIM (FJ0-65162-31-00)

GA9-U5162-30-00

1
Out of stock

25

LID, ENGINE HATCH

GA9-U517B-00-00

1
Out of stock

25

LID, ENGINE HATCH

GA9-U517B-00-P0

1
Out of stock

26

HINGE

FJ0-65173-00-00

1
Out of stock

27

. SCREW, FLAT HEAD

98780-05016-00

1
Out of stock

28

. WASHER, PLAIN

92990-05200-00

1
Out of stock

29

NUT, FLANGE

95720-05300-00

1
Out of stock

30

PACKING 3

FJ0-62665-00-00

1
Out of stock

31

LOCK, LID

FJ0-65172-00-00

1
Out of stock

32

NUT, HEXAGON (1E6)

90170-22187-00

—
Out of stock

33

HOOK, LID LOCK

FJ0-65174-00-00

1
Out of stock

34

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

35

. WASHER, PLAIN

92990-05200-00

1
Out of stock

36

NUT, FLANGE

95720-05300-00

1
Out of stock

37

PLUG(EU0)

90605-50201-00

—
Out of stock

38

CLAMP

90465-08M33-00

1
Out of stock
