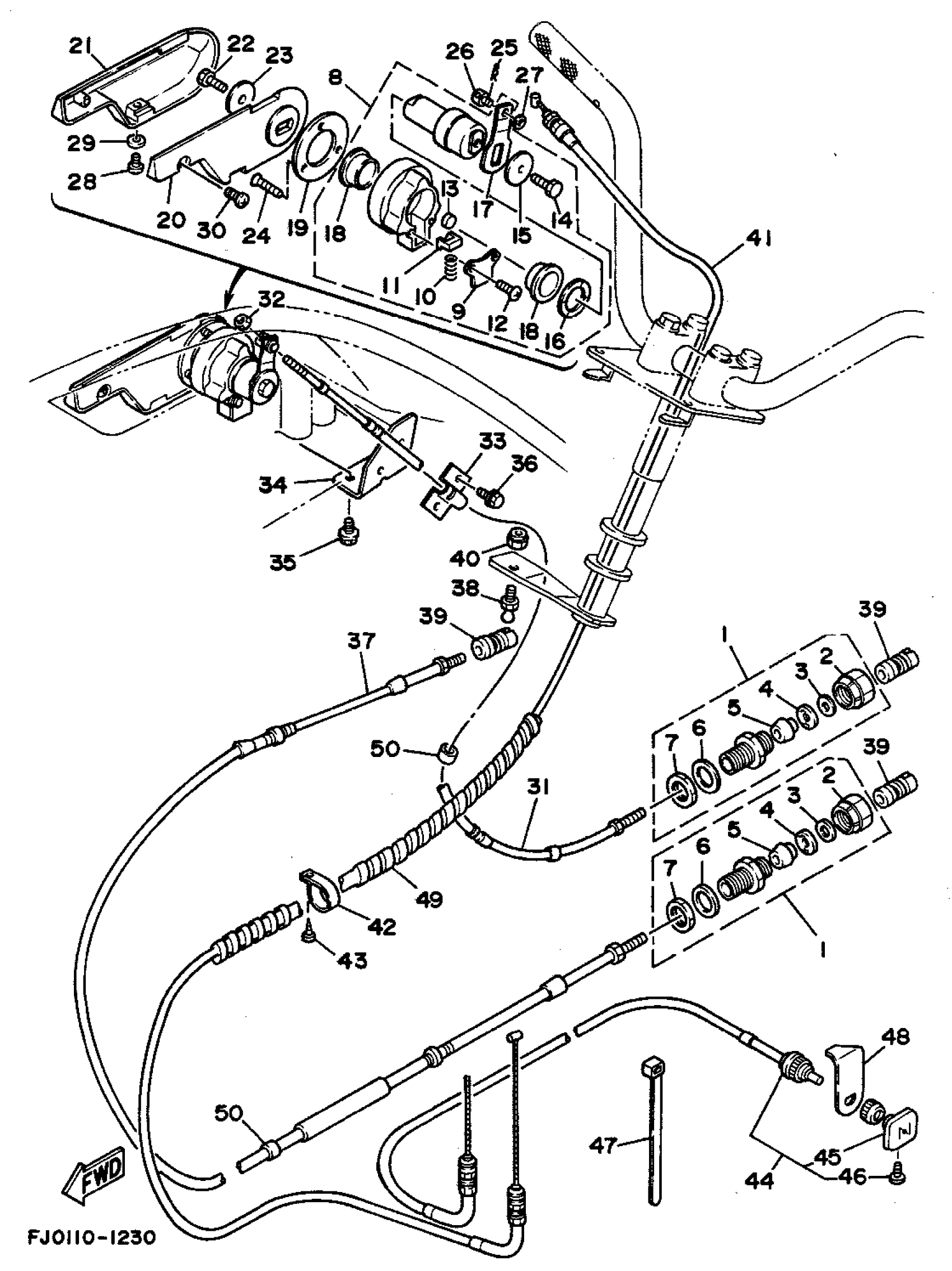

Yamaha WRA650P (WAVE RUNNER III) 1991 CONTROL CABLE Diagram

#

Description
Price

1

CONNECTOR, CABLE

EU0-67267-00-00

$35.71

1

KNOB, CHOKE

GP7-U724C-00-00

Unavailable

1

SCREW, KNOB

GP7-U724D-00-00

Unavailable

2

. CAP

EU0-62694-00-00

$10.74

3

. WASHER 30

EU0-61446-00-00

$4.55

4

. STOPPER

EU0-61486-00-00

$6.82

5

. SEAL, PIPE 30

EU0-61435-00-00

$10.99

6

. PACKING (C)

EU0-61438-00-00

$8.32

7

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

8

LEVER SUB ASSEMBLY

FJ0-61341-01-00

Unavailable

9

. PLATE

FJ0-61348-01-00

Unavailable

10

. SPRING

FJ0-61349-00-00

Unavailable

11

. DETENT ROLLER SET

FJ0-61351-00-00

$22.71

12

SCREW,PAN HEAD (646)

98580-05012-00

$5.52

13

. DETENT ROLLER

FJ0-61352-00-00

Unavailable

14

BOLT (FJ0)

97080-06018-00

Unavailable

15

. WASHER

FJ0-61353-00-00

$15.89

16

. WAVE WASHER

FJ0-61354-00-00

$11.99

17

. ARM

FJ0-61346-00-00

$22.71

18

. BEARING

FJ0-61347-00-00

$13.99

19

WASHER

FJ0-61344-00-00

$25.74

20

LEVER 1

FJ0-61342-00-00

Unavailable

21

LEVER 2

FJ0-61343-01-00

Unavailable

22

BOLT (FJ0)

97080-06018-00

Unavailable

23

. WASHER

FJ0-61353-00-00

$15.89

24

YBS53-525 SCREW,FLAT HEAD

98780-05525-00

$1.65

25

PIN, COTTER (648)

91490-20015-00

Unavailable

26

PIVOT

FJ0-61345-00-00

Unavailable

27

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

28

SCREW,PAN HEAD (646)

98580-05012-00

$5.52

29

WASHER, PLAIN (646)

92990-05600-00

Unavailable

29

WASHER

FJ0-61344-00-00

$25.74

30

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

31

REVERSE CABLE

GA9-U149C-01-00

Unavailable

32

NUT, HEXAGON (663)

95380-05600-00

Unavailable

33

STOPPER CABLE

EU0-U1468-00-00

Unavailable

34

BRACKET, STOPPER CABLE

FJ0-61467-00-00

Unavailable

35

BOLT, WITH WASHER

90119-06913-00

$1.28

36

BOLT, WITH WASHER

90119-06926-00

Unavailable

37

CABLE, STEERING

FJ0-61481-00-00

$195.44

38

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

39

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

40

NUT, FLANGE

95780-06300-00

$7.14

41

CABLE, THROTTLE 1

EU0-U7252-01-00

$120.63

42

CLIP, NYLON 17

90600-91728-00

$5.45

43

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

44

CHOKE CABLE

GA9-YU724-32-00

Unavailable

45

. KNOB

EW2-67243-00-00

$13.33

46

. SCREW

90149-03930-00

$1.21

47

BAND

90601-200U1-00

$2.77

48

PLATE, CHOKE

FJ0-67243-00-00

$11.35

49

SPIRAL TUBE

90699-36075-00

Unavailable

50

PACKING, HOSE 2

FJ0-67578-00-00

Unavailable
