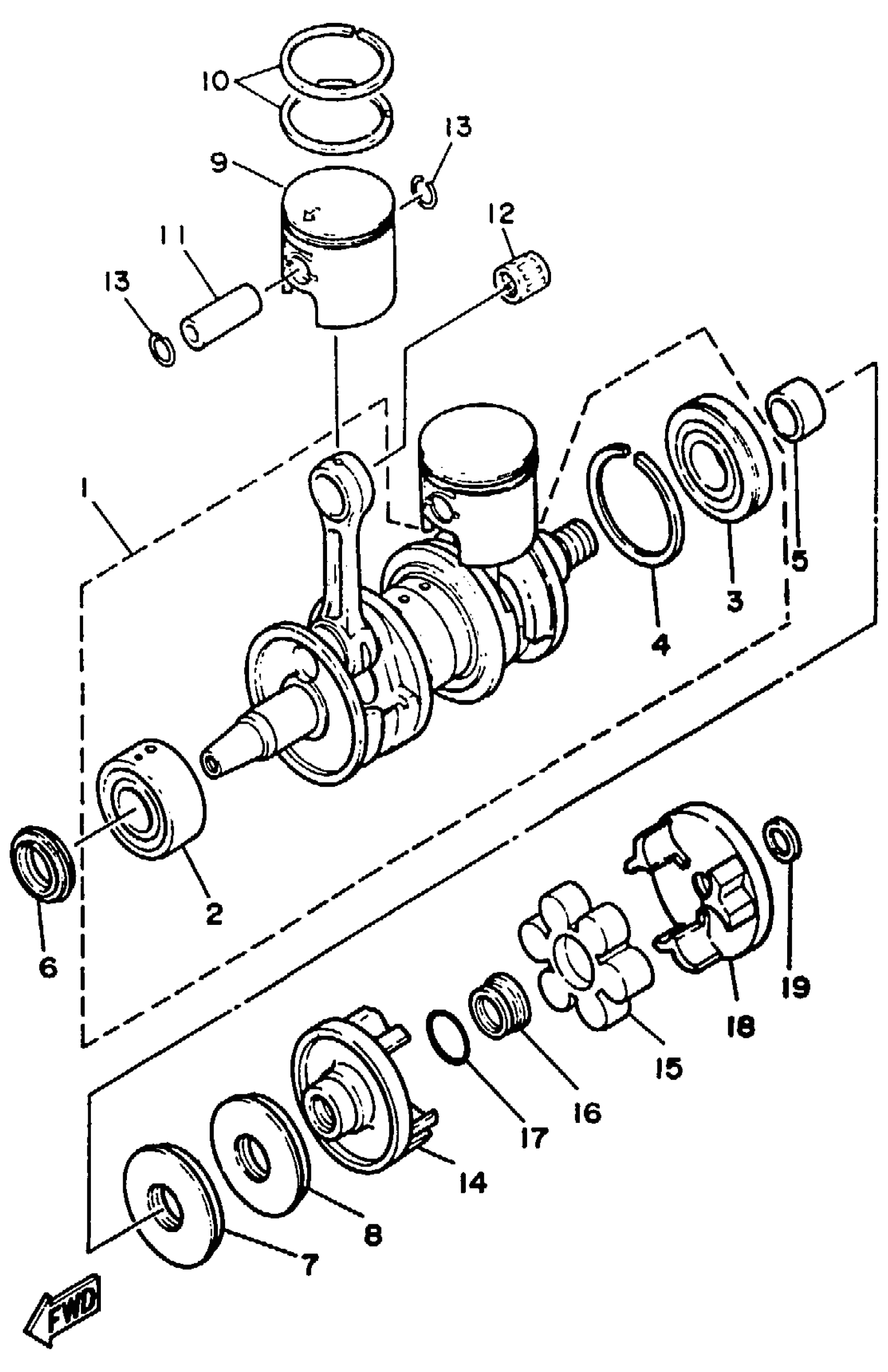

Yamaha WR650D (WAVE RUNNER LX) 1990 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

62T-11400-02-00

$1,406.05

2

BEARING(8AB)

93305-30601-00

$188.82

3

BEARING(6M6)

93306-307U3-00

$72.67

4

CIRCLIP (834)

93440-80023-00

$12.59

5

COLLAR, DRIVE SHAFT

6M6-45526-00-00

Unavailable

6

. OIL SEAL

93103-32M01-00

$14.81

7

. OIL SEAL

93102-36M33-00

$15.55

8

. OIL SEAL

93101-36M46-00

$17.41

9

PISTON (STD)

6M6-11631-01-93

$121.20

9

PISTON (0.50MM O/S)

6M6-11636-01-00

Unavailable

10

PISTON RING SET (STD)

6M6-11601-00-00

$49.49

10

PISTON RING SET (0.50MM O/S)

6M6-11601-20-00

Unavailable

11

PIN, PISTON

8H8-11633-00-00

$29.48

12

BEARING, CYLINDRICAL

93310-320U3-00

$30.29

13

CIRCLIP (8H0)

93450-21053-00

$3.23

14

FLANGE, COUPLING

6M6-45813-10-8P

$124.23

15

RUBBER SHAFT COUPLING

61X-4581J-00-00

$96.95

16

NUT, RING

6M6-5114E-00-00

Unavailable

17

O-RING

93210-30M31-00

$8.11

18

FLANGE, COUPLING

6M6-45813-00-9M

Unavailable

19

WASHER, PLATE

90201-20M21-00

$5.00
