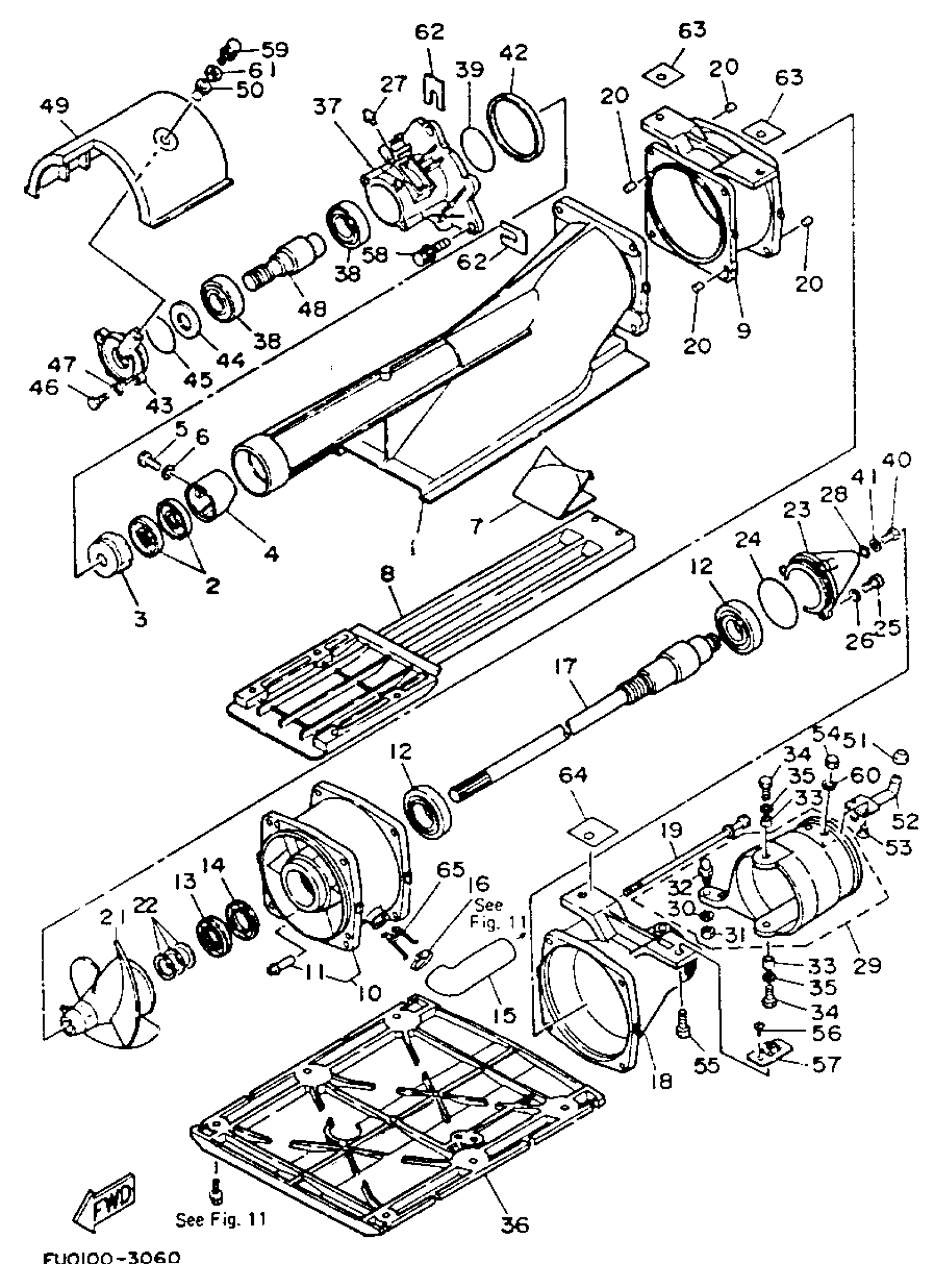

Yamaha WR500R (WAVE RUNNER) 1993 JET UNIT Diagram

#

Description
Price

1

DUCT, INTAKE

6K8-51311-00-94

Unavailable

2

. OIL SEAL, S-TYPE

93101-17M31-00

Unavailable

3

BUSHING, DRIVE SHAF

6K8-45318-00-00

$53.99

4

SPACER

6K8-51348-00-8S

Unavailable

5

BOLT(7U8)

97080-06020-00

$3.63

6

WASHER, PLAIN (646)

92990-06600-00

$1.84

7

PLATE 3

6K8-51347-00-8S

Unavailable

8

SCREEN, INTAKE

6K8-51333-00-8S

Unavailable

9

HOUSING, IMPELLER

6K8-51312-00-8S

Unavailable

10

DUCT, IMPELLER

6K8-51315-01-94

Unavailable

11

. PIPE

6K8-51385-00-00

Unavailable

12

BEARING

93306-206U6-00

Unavailable

13

. OIL SEAL, SW-TYPE

93103-30M00-00

Unavailable

14

. OIL SEAL, S-TYPE

93101-30M32-00

Unavailable

15

HOSE, SPLASHER

6K8-51161-10-00

Unavailable

16

HOSE CLAMP ASSY

90450-32097-00

$13.99

17

SHAFT, DRIVE

6K8-45511-01-00

$606.05

18

NOZZULE

6K8-51318-00-9M

Unavailable

19

BOLT, WITH WASHER

90119-06M33-00

Unavailable

20

PIN, DOWEL (614)

93606-12019-00

Unavailable

21

IMPELLER

6K8-51321-00-94

Unavailable

22

SHIM (T=0.1)

6K8-45567-00-01

Unavailable

22

SHIM (T=0.3)

6K8-45567-00-03

Unavailable

22

SHIM (T=0.5)

6K8-45567-00-05

Unavailable

22

SHIM (T=1.0)

6K8-45567-00-10

Unavailable

23

CAP

6K8-51326-00-94

Unavailable

24

. O-RING

93210-57M09-00

$5.23

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

$1.84

27

NIPPLE, GREASE

93700-06M03-00

$7.40

28

. GASKET

90430-06M03-00

$2.80

29

NOZZLE, JET OUTPUT

6K8-51313-00-00

Unavailable

30

WASHER, PLATE

90201-06M02-00

$2.20

31

NUT(650)

95380-06700-00

Unavailable

32

. BOLT, JOINT

6R7-42316-00-00

$34.49

33

COLLAR(47X)

90387-060G7-00

Unavailable

34

BOLT(7U8)

97080-06020-00

$3.63

35

WASHER, PLAIN (646)

92990-06600-00

$1.84

36

PLATE 2

EU0-62731-00-00

Unavailable

37

HOUSING, BEARING

6K8-45331-02-00

Unavailable

38

BEARING (6K8)

93306-205U1-00

Unavailable

39

. O-RING

93210-52454-00

Unavailable

40

BOLT(GH1)

97080-06012-00

$2.56

41

WASHER, PLAIN (646)

92990-06600-00

$1.84

42

SEAL

6K8-45127-00-00

$15.49

43

PLATE

6K8-51332-00-00

Unavailable

44

OIL SEAL(6R7)

93101-25M50-00

Unavailable

45

. O-RING

93210-46M16-00

$7.15

46

BOLT(7U8)

97080-06020-00

$3.63

47

WASHER, PLAIN (646)

92990-06600-00

$1.84

48

SHAFT, COUPLER

6K8-51323-02-00

Unavailable

49

COVER

6K8-51381-01-00

Unavailable

50

COLLAR

90387-06M60-00

$6.37

51

CAP, SPOUT

6R8-62695-00-00

$4.55

52

SPOUT

EU0-62693-02-00

$41.99

53

. SCREW, FLAT HEAD

98780-05016-00

$2.64

54

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

Unavailable

55

BOLT

90119-10906-00

Unavailable

56

SCREW, TAPPING (97780-40108-00)

97780-40508-00

Unavailable

57

NUT

90179-10925-00

$5.00

58

BOLT, WITH WASHER

90119-08907-00

$5.45

59

BOLT, WITH WASHER

90119-06900-00

$4.09

60

. WASHER, PLAIN

92990-05200-00

$4.29

61

WASHER, PLATE

90202-10024-00

$5.48

62

SHIM (T=0.3) (EU0-67354-30-03)

EU0-U7354-30-03

Unavailable

62

SHIM (T=0.5) (EU0-67354-30-05)

EU0-U7354-30-05

Unavailable

62

SHIM (T=1.0) (EU0-67354-30-10)

EU0-U7354-30-10

Unavailable

63

SHIM (T=1.5) (T=1.5)

EU0-67354-40-00

Unavailable

64

SHIM (T=2.0) (T=2.0)

EU0-67354-50-00

Unavailable

65

SCREEN

6M6-51384-00-00

Unavailable
