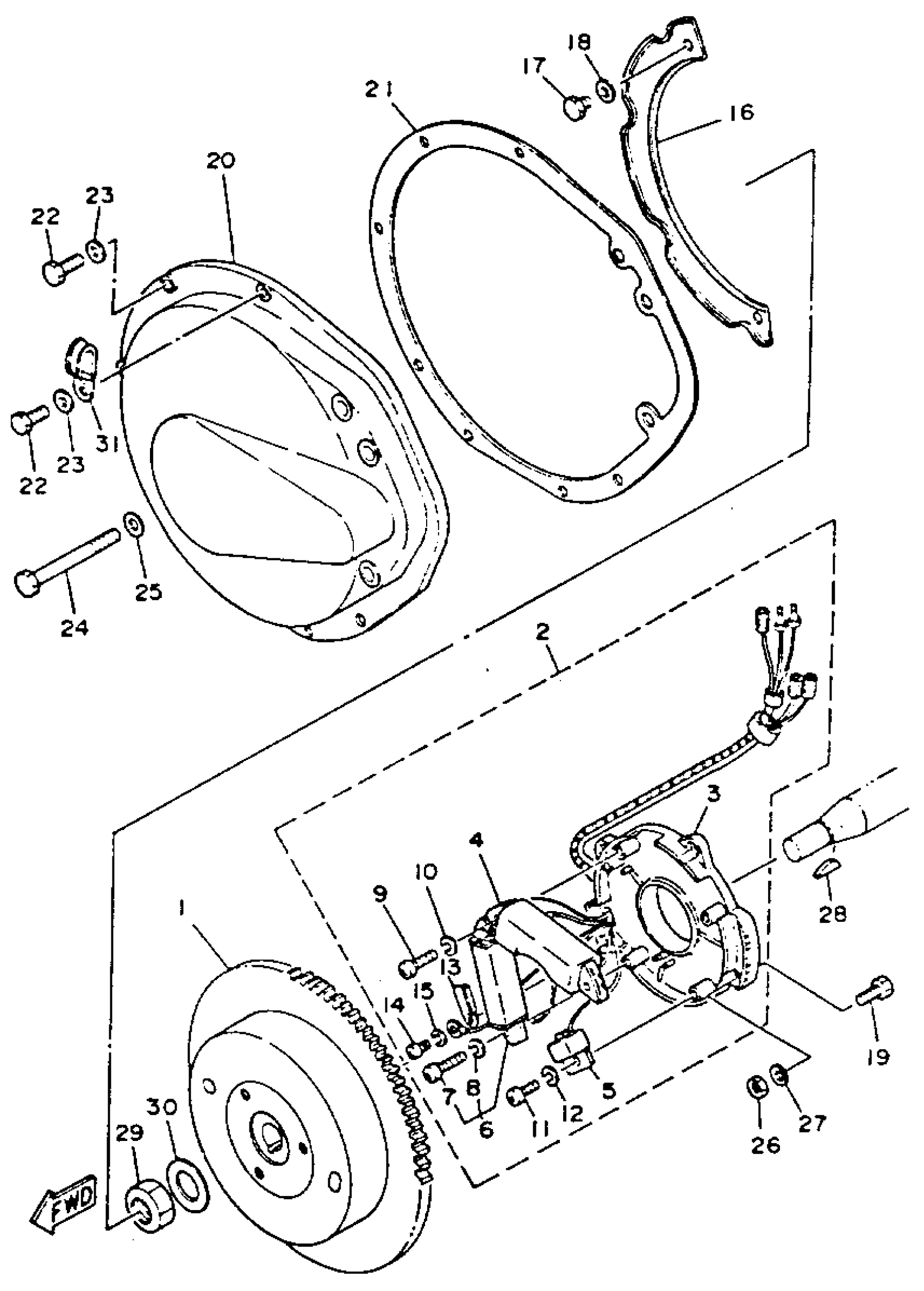

Yamaha WR500R (WAVE RUNNER) 1993 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSEMBLY

6K8-85550-A1-00

Unavailable

2

BASE ASSEMBLY

6K8-85560-41-00

Unavailable

3

. BASE, MAGNETO

6G0-85509-70-00

Unavailable

4

. CHARGE COIL ASSEMBLY

6G0-85520-70-00

Unavailable

5

. COIL, PULSER

6K8-85580-00-00

Unavailable

6

LIGHTING COIL ASY

6E7-81303-40-00

$105.70

7

SCREW, PAN HEAD

98517-05020-00

$1.26

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

SCREW, PAN HEAD

98517-05020-00

$1.26

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

. CLAMP, CORD

6E7-81328-70-00

Unavailable

14

SCREW, PAN HEAD (713)

98580-04008-00

$4.24

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

16

CLAMP, CORD

6K8-82361-00-00

Unavailable

17

BOLT

97085-06010-00

$1.21

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

BOLT, HEXAGON

97313-05016-00

Unavailable

20

COVER, FLYWHEEL

6K8-81337-01-94

Unavailable

21

GASKET, HOLE COVER

6K8-81365-A1-00

Unavailable

22

BOLT(7U8)

97080-06020-00

$3.63

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

BOLT (6K8)

97013-08075-00

Unavailable

25

.. WASHER, PLATE

92990-08600-00

$2.17

26

NUT

95380-05700-00

$4.71

27

WASHER, PLAIN (646)

92990-05600-00

Unavailable

28

KEY, WOODRUFF

90280-05049-00

$6.63

29

NUT (689)

90179-16M05-00

Unavailable

30

WASHER, PLATE

90201-16M44-00

$7.84

31

CLAMP (6A4)

90461-06M01-00

Unavailable
