1992 Yamaha Wave Runner (WR500Q) Exhaust Diagram

← All diagrams

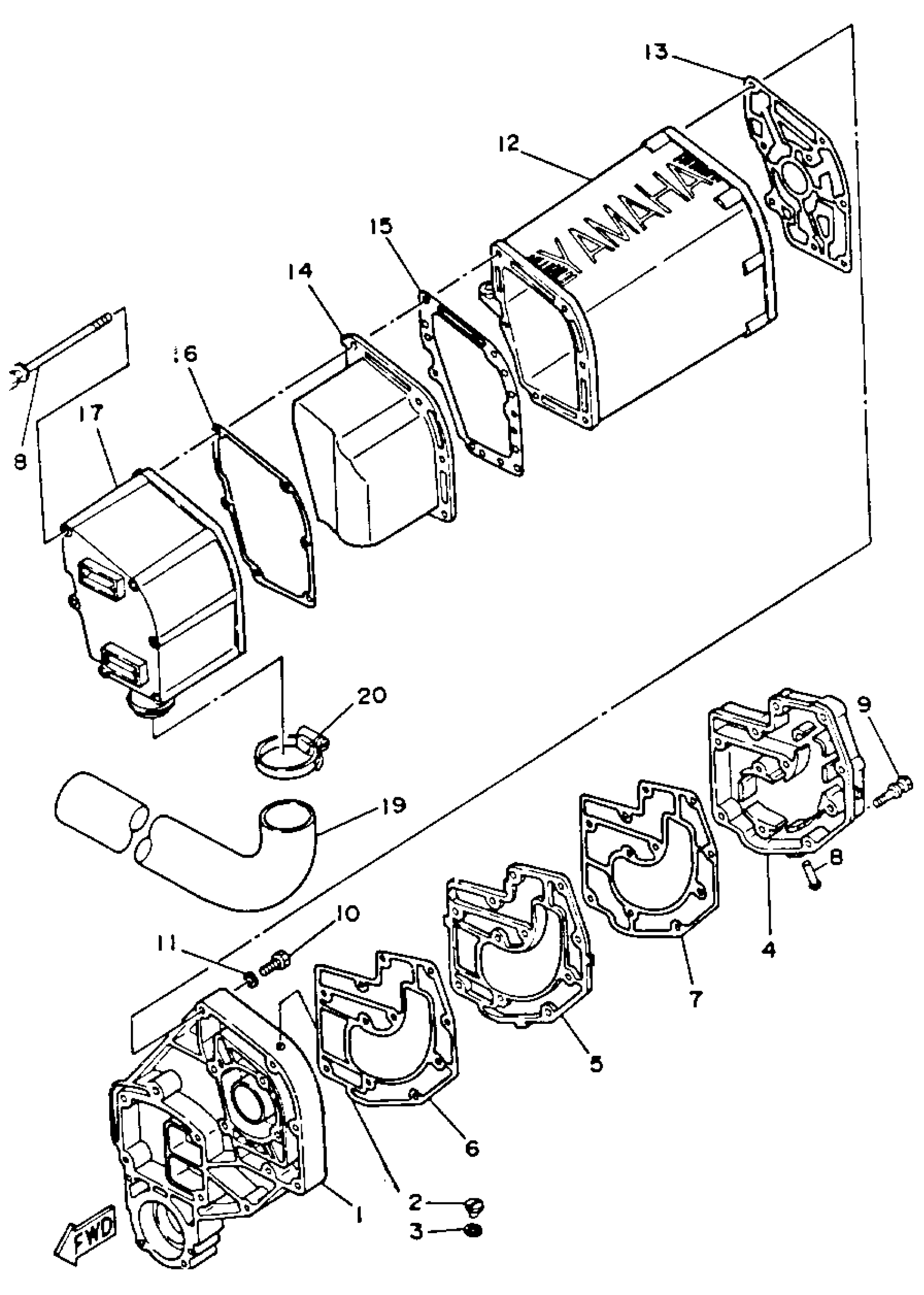

Find the part on the Exhaust diagram for your 1992 Yamaha Wave Runner (WR500Q), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Wave Runner (WR500Q) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST GUIDE

6K8-41137-00-94

1
Out of stock

2

PLUG, STRAIGHT SCREW

90340-08002-00

1
Out of stock

3

GASKET

90430-08003-00

1
Out of stock

4

EXHAUST OUTER CVR.

6K8-41113-00-8S

1
Out of stock

5

EXHAUST INNER CVR.

6K8-41111-00-9M

1
Out of stock

6

. GASKET, EXHCOVEREXHAUST OUTER COVER

6K8-41114-A1-00

1
Out of stock

7

. GASKET EXHAUSTEXHAUST INNER COVER

6K8-41112-A1-00

1
Out of stock

8

. PIPE

6K8-51385-00-00

1
Out of stock

9

BOLT, WITH WASHER

90119-08M38-00

1
Out of stock

10

BOLT, HEXAGON

97013-08050-00

—
Out of stock

11

.. WASHER, PLATE

92990-08600-00

1
Out of stock

12

PROTECTOR, MUFF 1

6K8-14718-00-9M

1
Out of stock

13

. GASKET, SILENCER

6K8-14755-A1-00

1
Out of stock

14

MUFFLER R

6K8-14721-00-9M

1
Out of stock

15

. GASKET, MUFF DMPR 1MUFFLER DAMPER 1

6K8-14739-A1-00

1
Out of stock

16

. GASKET, MUFF DMPR 2MUFFLER DAMPER 2

6K8-14749-A1-00

1
Out of stock

17

PROTECTOR, MUFF 1

6K8-14718-00-9M

1
Out of stock

18

BOLT, WITH WASHER

90119-06M37-00

1
Out of stock

19

PIPE, OUTLET

6K8-14752-00-00

1
Out of stock

20

BAND, HOSE 52

90601-15272-00

1
Out of stock
