1991 Yamaha Wave Runner (WR500P) Seat Diagram

← All diagrams

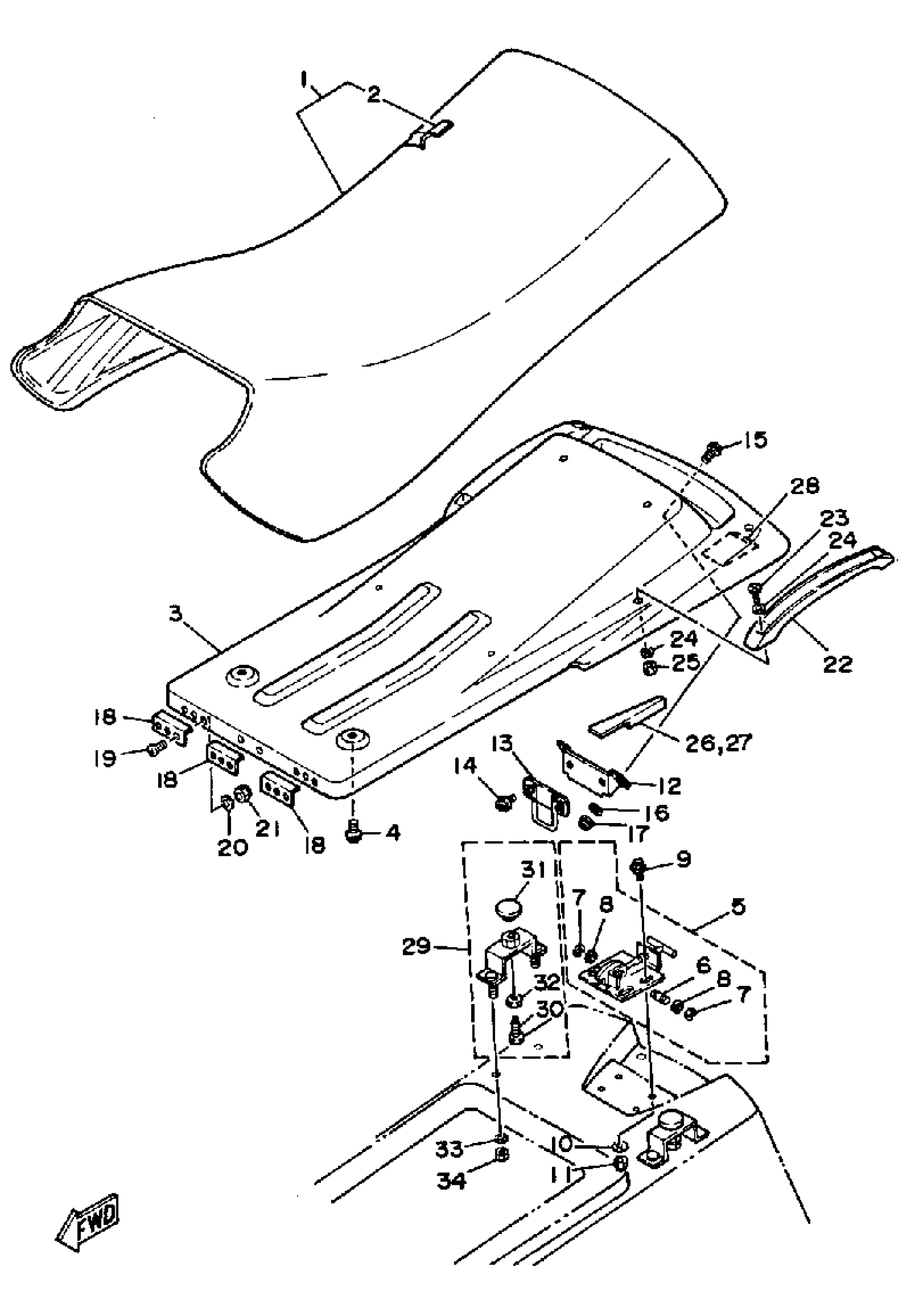

Find the part on the Seat diagram for your 1991 Yamaha Wave Runner (WR500P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Yamaha Wave Runner (WR500P) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY.

EU0-U3710-41-00

1
Out of stock

2

SEAT COVER

FK7-63711-41-00

1
Out of stock

3

BASE SEAT COMP

EU0-63702-03-00

1
Out of stock

4

BOLT, W/WASHER

90119-06034-00

1
Out of stock

5

SEAT LOCK ASSEMBLY

EU0-63850-00-00

1
Out of stock

6

. PIN

EU0-63774-00-00

1
Out of stock

7

CIRCLIP(22K)

99080-05600-00

1

$6.17

In stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

9

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

12

BASE, HOOK END

EU0-63778-00-00

1
Out of stock

13

HOOK END

EU0-63779-00-00

1
Out of stock

14

BOLT, WITH WASHER

90119-06926-00

1
Out of stock

15

SCREW, WITH WASHER

90159-06902-00

1
Out of stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

17

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

18

STOPPER SEAT 2

EU0-U3789-00-00

1
Out of stock

19

. SCREW, FLAT HEAD

98780-05016-00

1
Out of stock

20

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

21

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

22

GRIP, HAND

EU0-62714-01-00

1
Out of stock

23

SCREW, PAN HEAD(6B0)

97885-06025-00

1

$4.62

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

25

NUT, FLANGE

95780-06300-00

1

$7.69

In stock

26

MAT (LH)

EU0-67593-10-00

1
Out of stock

27

MAT (RH)

EU0-67593-20-00

1
Out of stock

28

LINER, DAMPER

EU0-63765-00-00

1
Out of stock

29

DAMPER, SEAT ASSEMBLY

EU0-63760-02-00

1
Out of stock

30

. BOLT

EU0-63762-00-00

1
Out of stock

31

. PLATE

EU0-63763-01-00

1
Out of stock

32

. NUT

EU0-63766-00-00

1
Out of stock

33

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

34

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock
