1991 Yamaha Wave Runner (WR500P) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1991 Yamaha Wave Runner (WR500P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

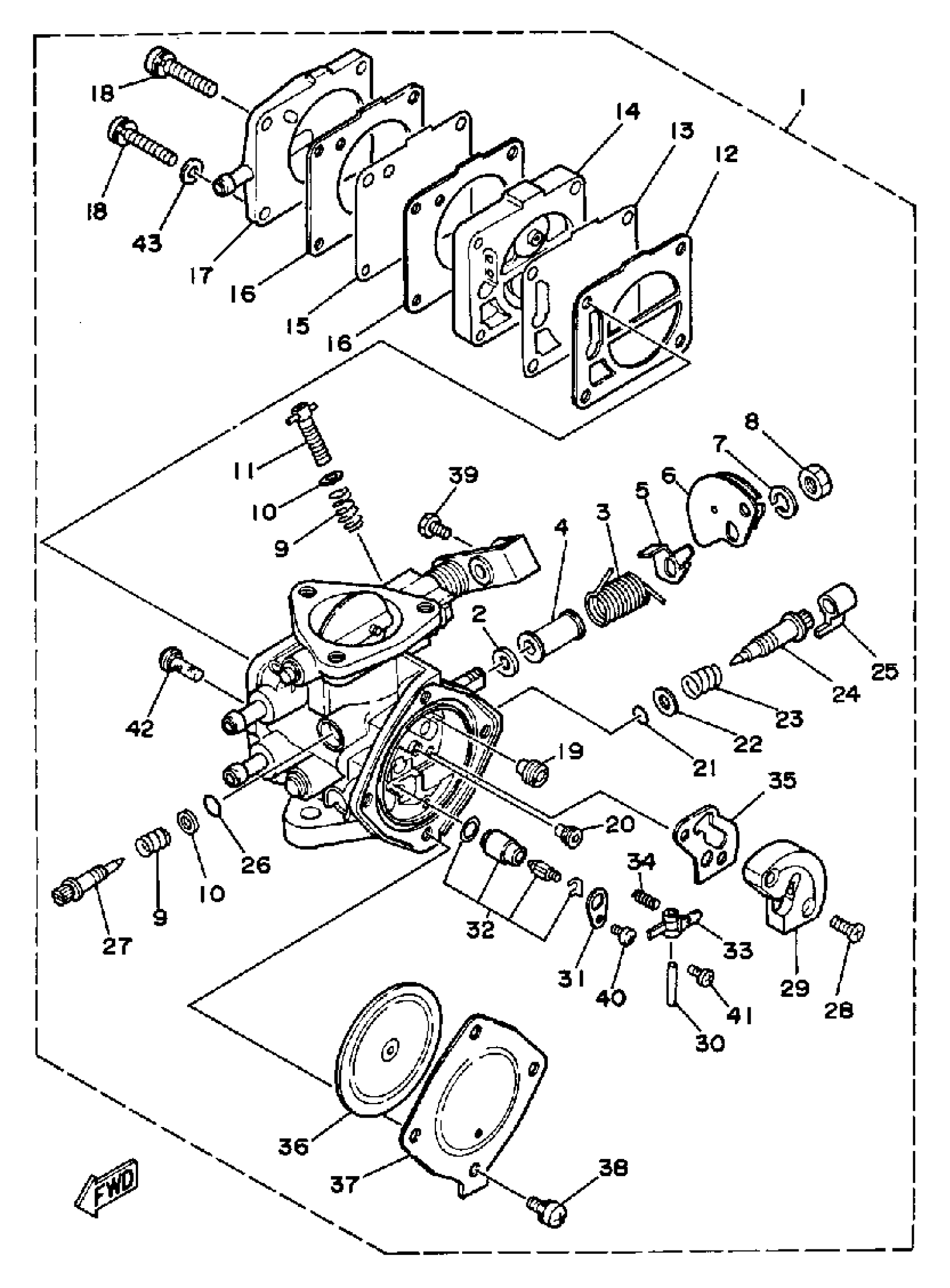

1991 Yamaha Wave Runner (WR500P) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

6K8-14301-11-00

1
Out of stock

2

. WASHER

6K8-14596-10-00

1
Out of stock

3

. SPRING

6K8-14556-10-00

1
Out of stock

4

. COLLAR

6K8-14534-10-00

1
Out of stock

5

. BRACKET, THROTTLE 1

6K8-14926-10-00

1
Out of stock

6

. THROTTLE SHAFT ASSEMBLY

6K8-14930-00-00

1
Out of stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

8

. NUT

95380-08700-00

1
Out of stock

9

. SPRING, ADJUST SCREW

6K8-14533-00-00

1
Out of stock

10

WASHER,NEEDLE

812-14235-00-00

1
Out of stock

11

. SCREW, ADJUST

6K8-14521-00-00

1
Out of stock

12

. GASKET, BODY 2

6K8-24435-10-00

1
Out of stock

13

. DIAPHRAGM

6K8-24411-10-00

1
Out of stock

14

. BODY 2

6K8-24413-10-00

1
Out of stock

15

. VALVE, CHECK

6K8-24421-10-00

1
Out of stock

16

. VALVE, CHECK

6K8-24421-10-00

1
Out of stock

17

. COVER

6K8-24452-10-00

1
Out of stock

18

SCREW, WITH WASHER(61B)

97985-05330-00

1
Out of stock

19

. JET, MAIN 80 (80)

3G2-14231-16-00

1
Out of stock

20

JET,MAIN #77.5

830-1423A-66-00

—
Out of stock

21

. O-RING

6K8-14561-00-00

1
Out of stock

22

. WASHER

6K8-14537-00-00

1
Out of stock

23

. SPRING

6K8-14589-00-00

1
Out of stock

24

. SCREW, PILOT

6K8-14923-10-00

1
Out of stock

25

. CAP, CARBURETOR

6K8-14481-10-00

1
Out of stock

26

. O-RING

6K8-14562-00-00

1
Out of stock

27

. PLATE, NEEDLE FITTING

6K8-14946-10-00

1
Out of stock

28

. SCREW, FLAT HEAD (98702-04014-00 )

6K8-14523-10-00

1
Out of stock

29

BODY 1

6K8-24412-11-00

1
Out of stock

30

. PIN, FLOAT

6K8-14579-00-00

1
Out of stock

31

. PLATE

6K8-14527-11-00

1
Out of stock

32

NEEDLE

61X-14916-16-00

1
Out of stock

33

. ARM, FLOAT

6K8-14547-01-00

1
Out of stock

34

. SPRING

6K8-14253-10-00

1
Out of stock

35

. GASKET

6K8-14536-11-00

1
Out of stock

36

. DIAPHRAM, PUMP

6K8-14541-10-00

1
Out of stock

37

BODY,PUMP 1

6R7-14542-10-00

1
Out of stock

38

. SCREW

6K8-14591-10-00

1
Out of stock

39

. SCREW

6K8-14592-00-00

1
Out of stock

40

. SCREW, ADJUST

6K8-14522-00-00

1
Out of stock

41

SCREW, FLAT

98707-03008-00

—
Out of stock

42

. STRAINER

6R7-14569-00-00

1
Out of stock

43

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock
